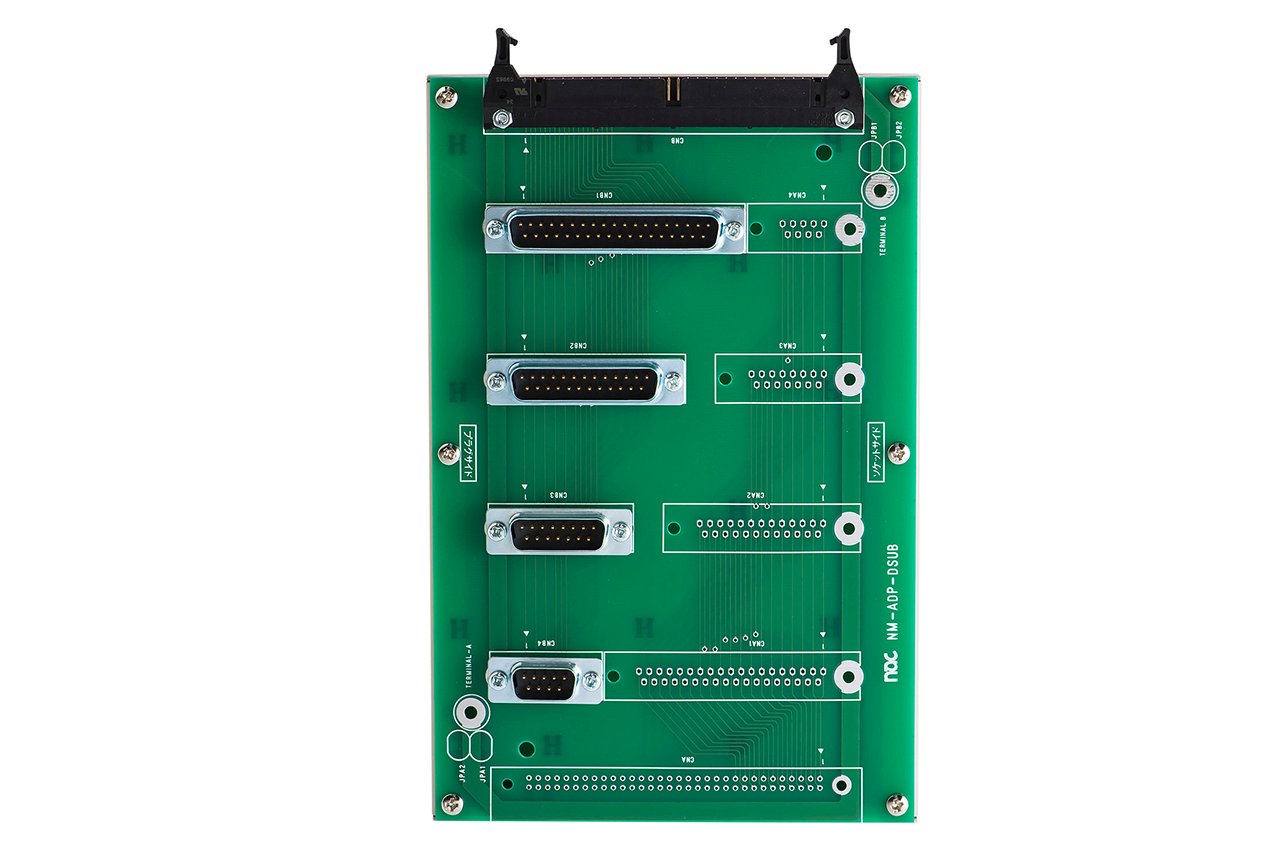

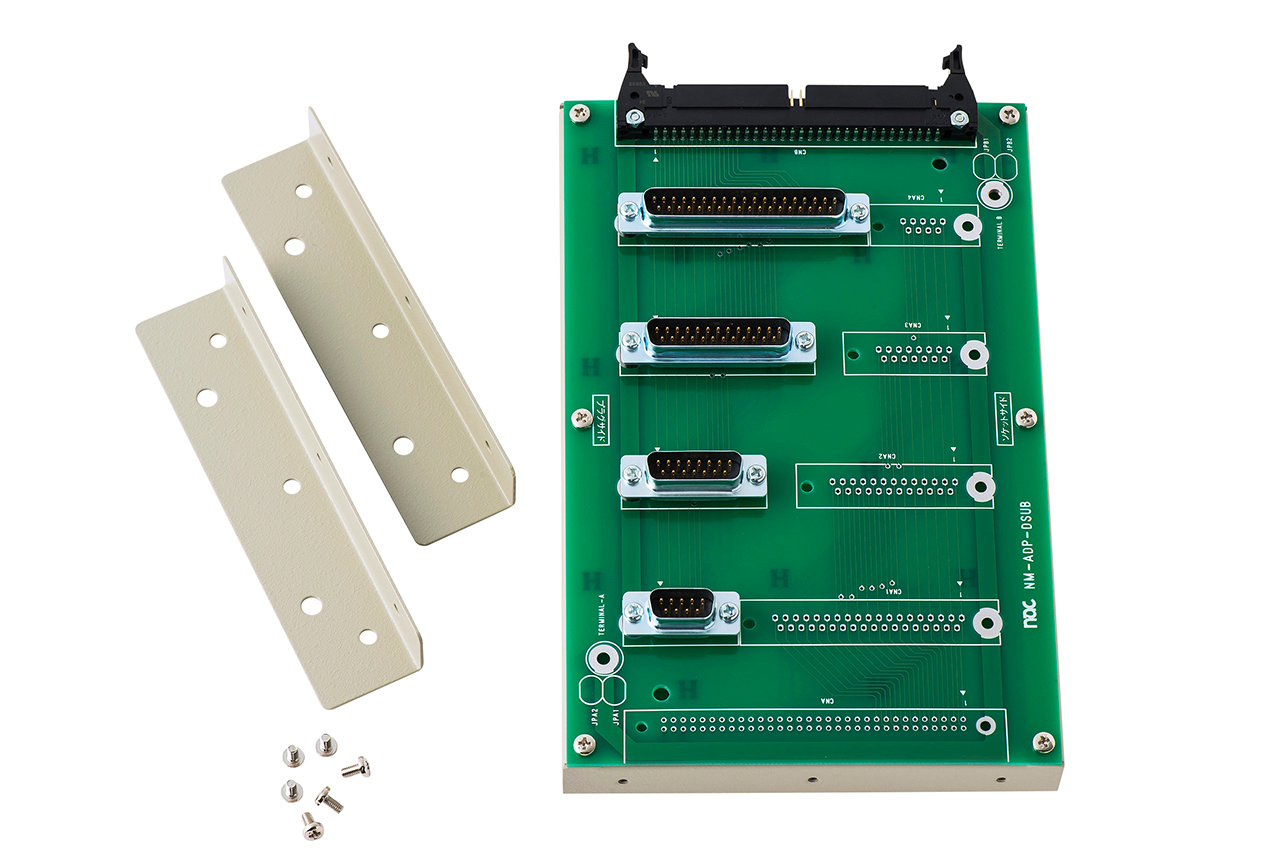

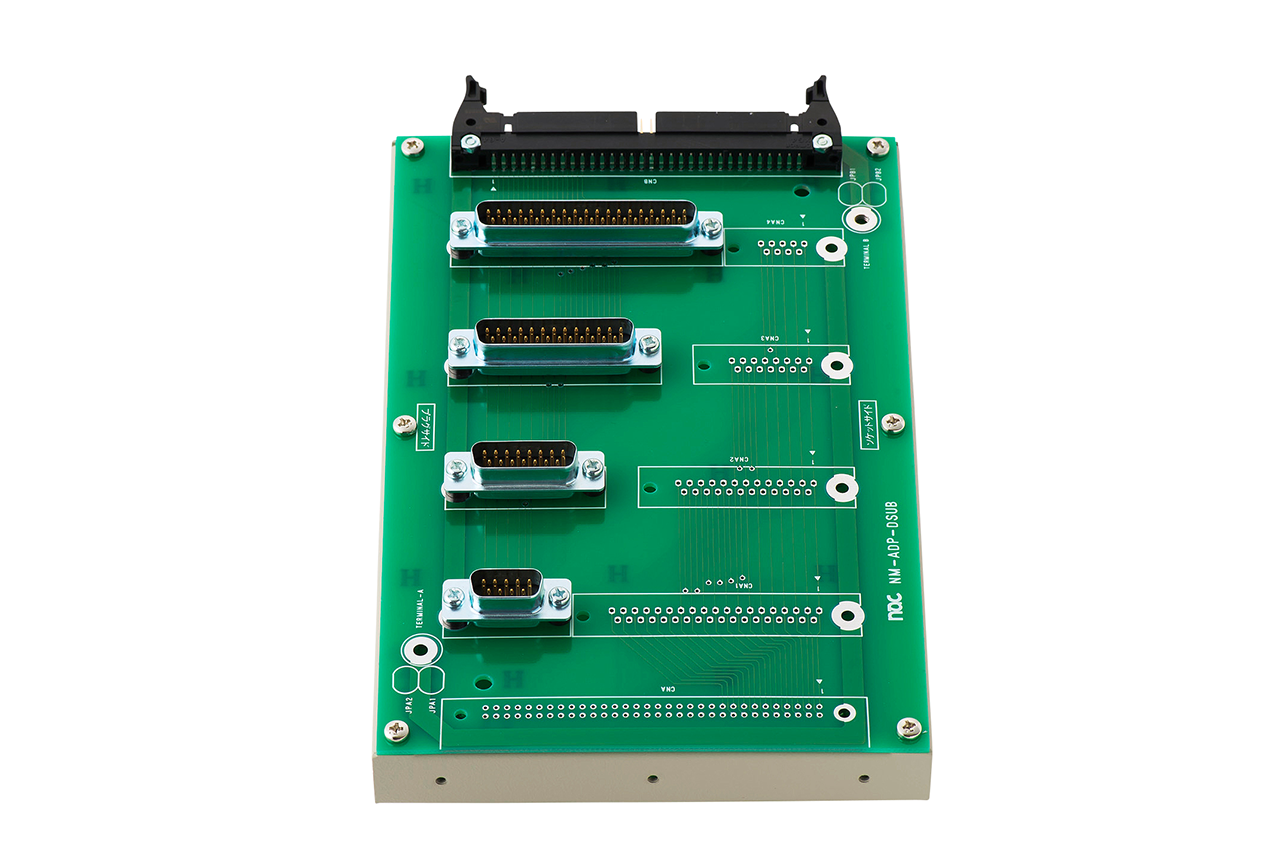

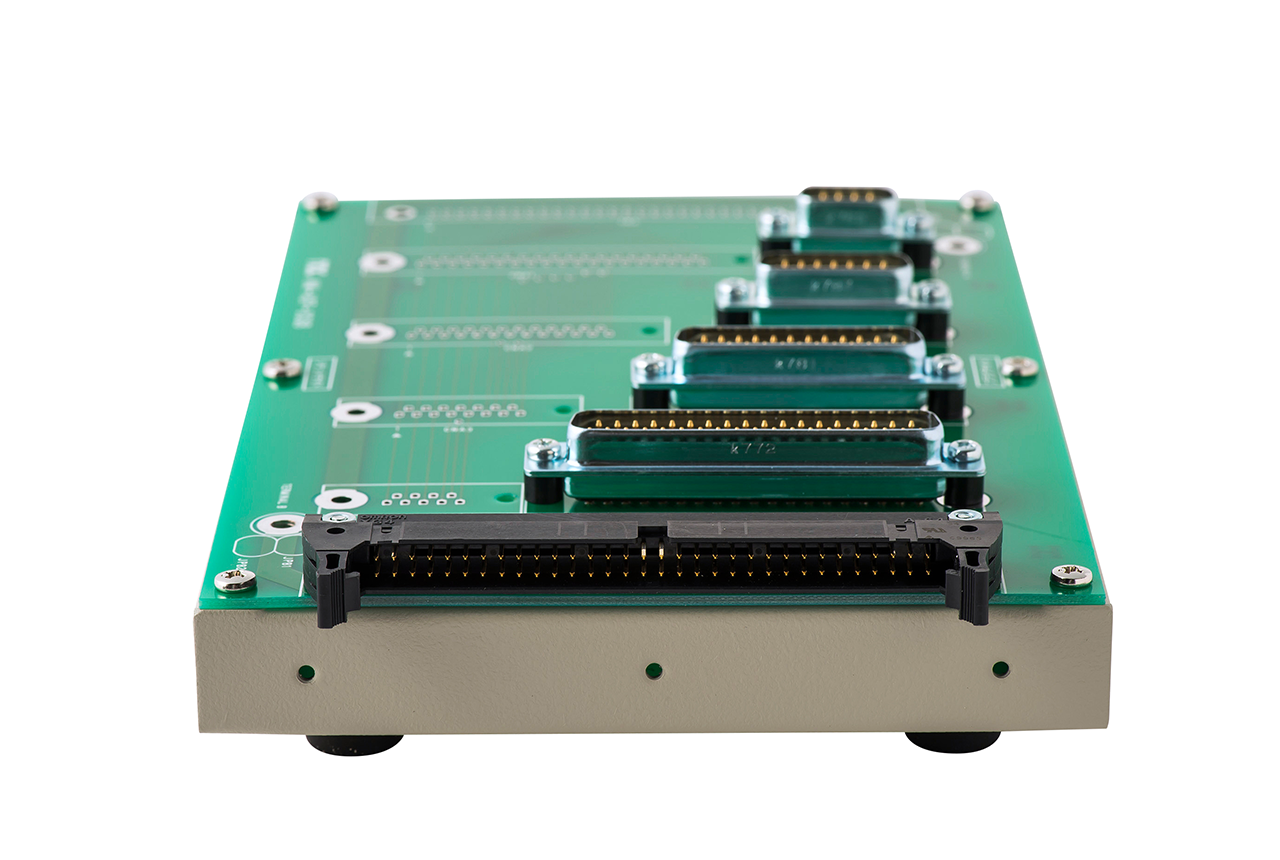

NM-ADP-04L
Conversion plug adapter for cable harness testing（DSUB connectors/9/15/25/37pin）
A jig adapter ideal for harness testing without high voltage testing.
JPY 31,800
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
Specifications
| Connectors for the test target | DSUB 9-pin plug connector DSUB 15-pin plug connector DSUB 25-pin plug connector DSUB 37-pin plug connector |
|---|---|
| Connectors for the tester | MIL-C-83503 64-pin header connector (1 nose) |
| Size | W:130mm L:200mm H:21.6mm （Not including rubber feet / projections） |
