NM-ADP-02L

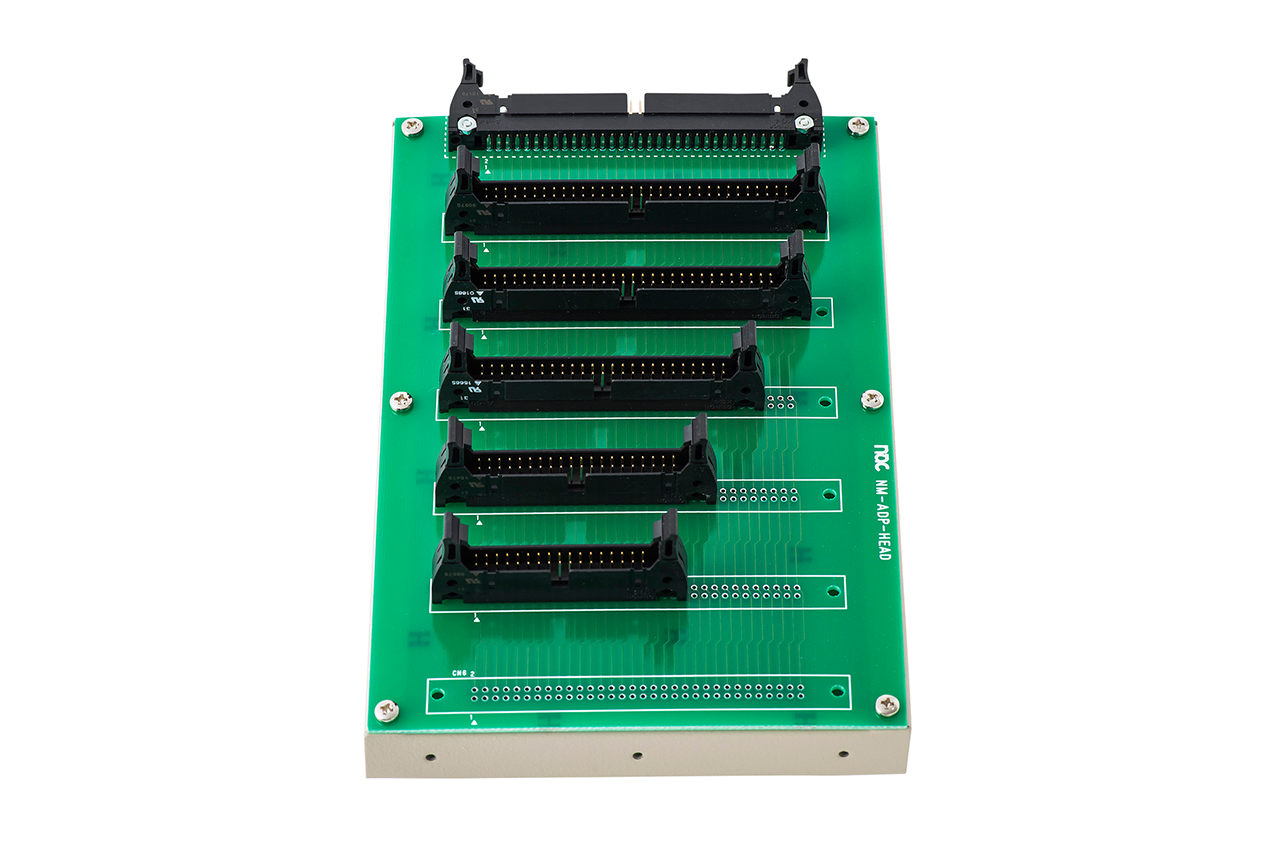

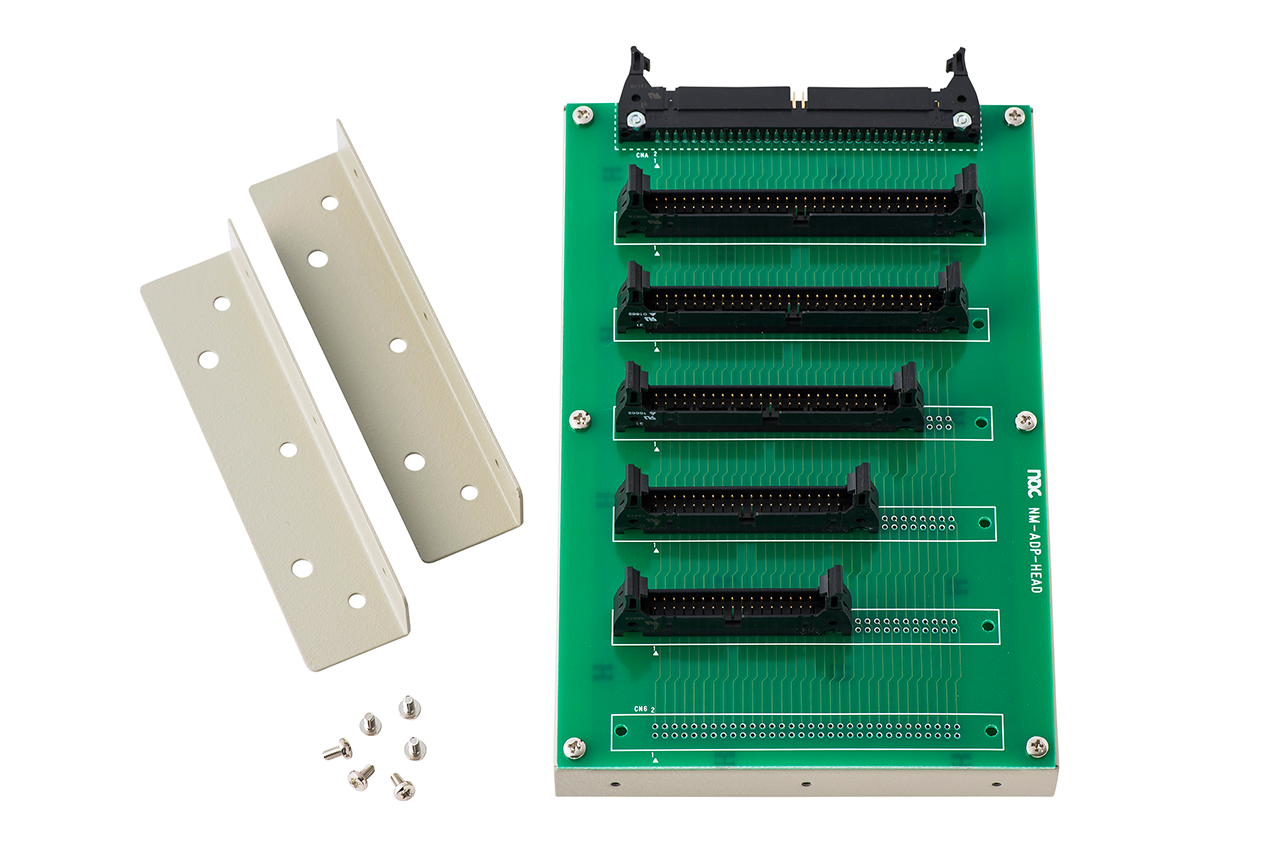

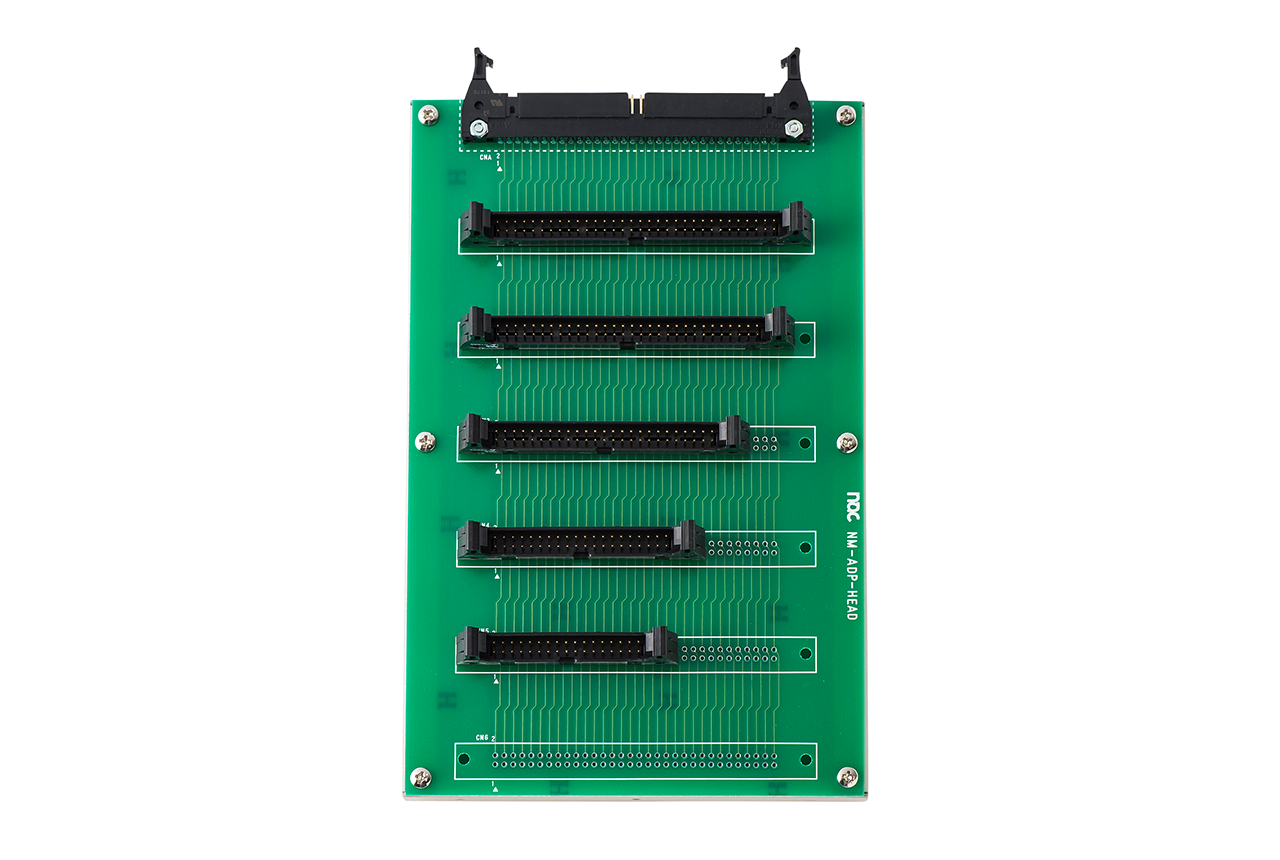

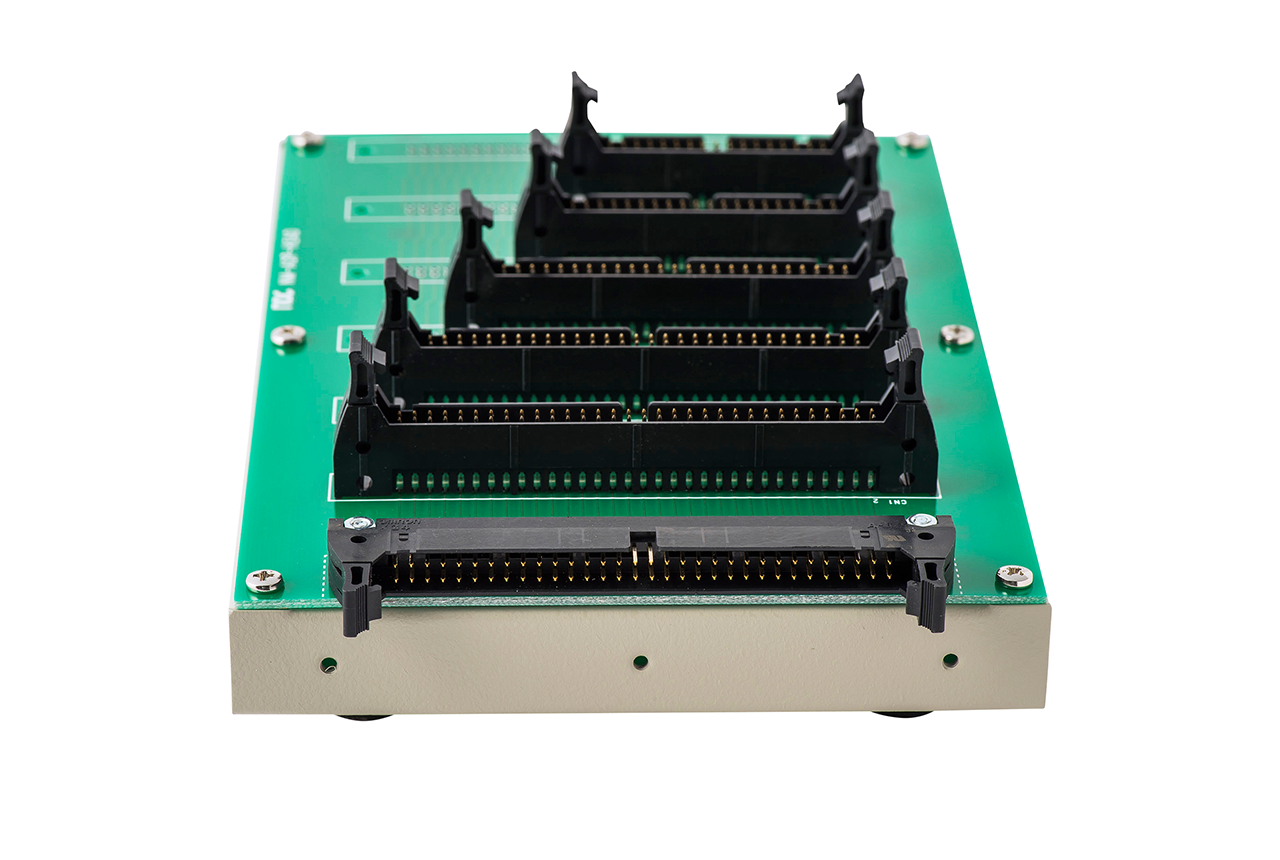

Conversion adapter for harness inspection （MILconnectors 34/40/50/60/64pin）
A jig adapter ideal for harness testing without high voltage cable harness testing
JPY 26,800
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
Specifications
| Connectors for the test target | MILーC-83503 34-pin header connector (1 nose) MILーC-83503 40-pin header connector (1 nose) MILーC-83503 50-pin header connector (1 nose) MILーC-83503 60-pin header connector (1 nose) MILーC-83503 64-pin header connector (1 nose) |
|---|---|
| Connectors for the tester | MIL-C-83503 64-pin header connector (1 nose) |
| Size | W:130mm L:200mm H:21.6mm （Not including rubber feet / projections） |
