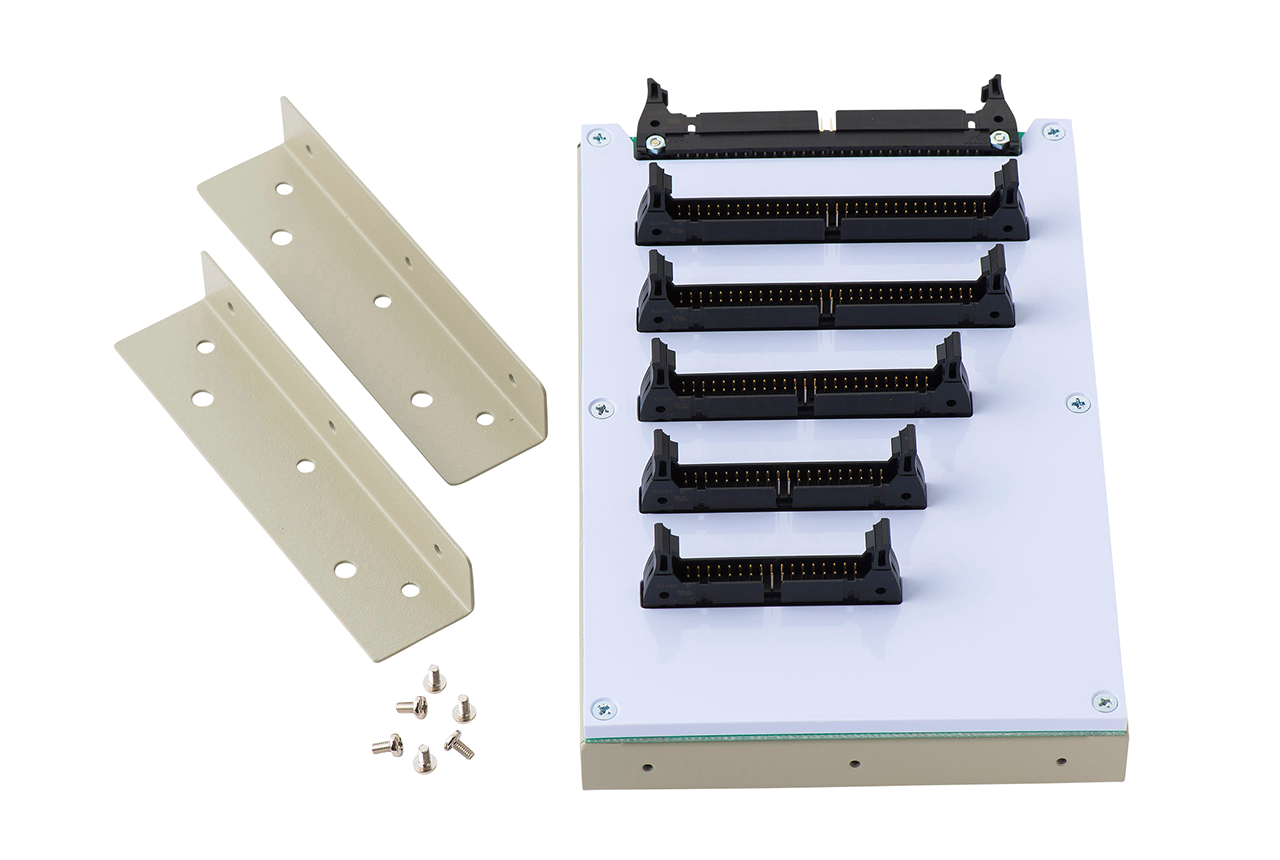

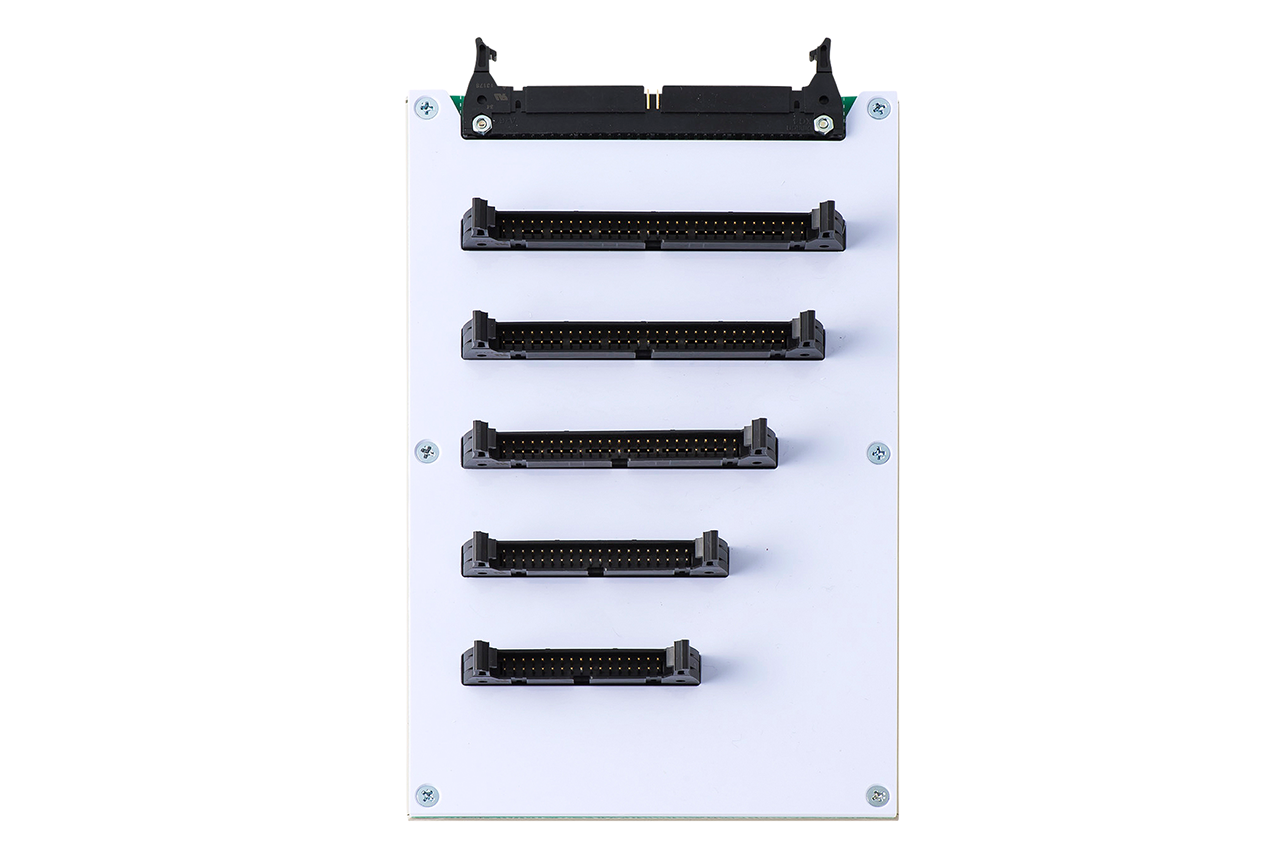

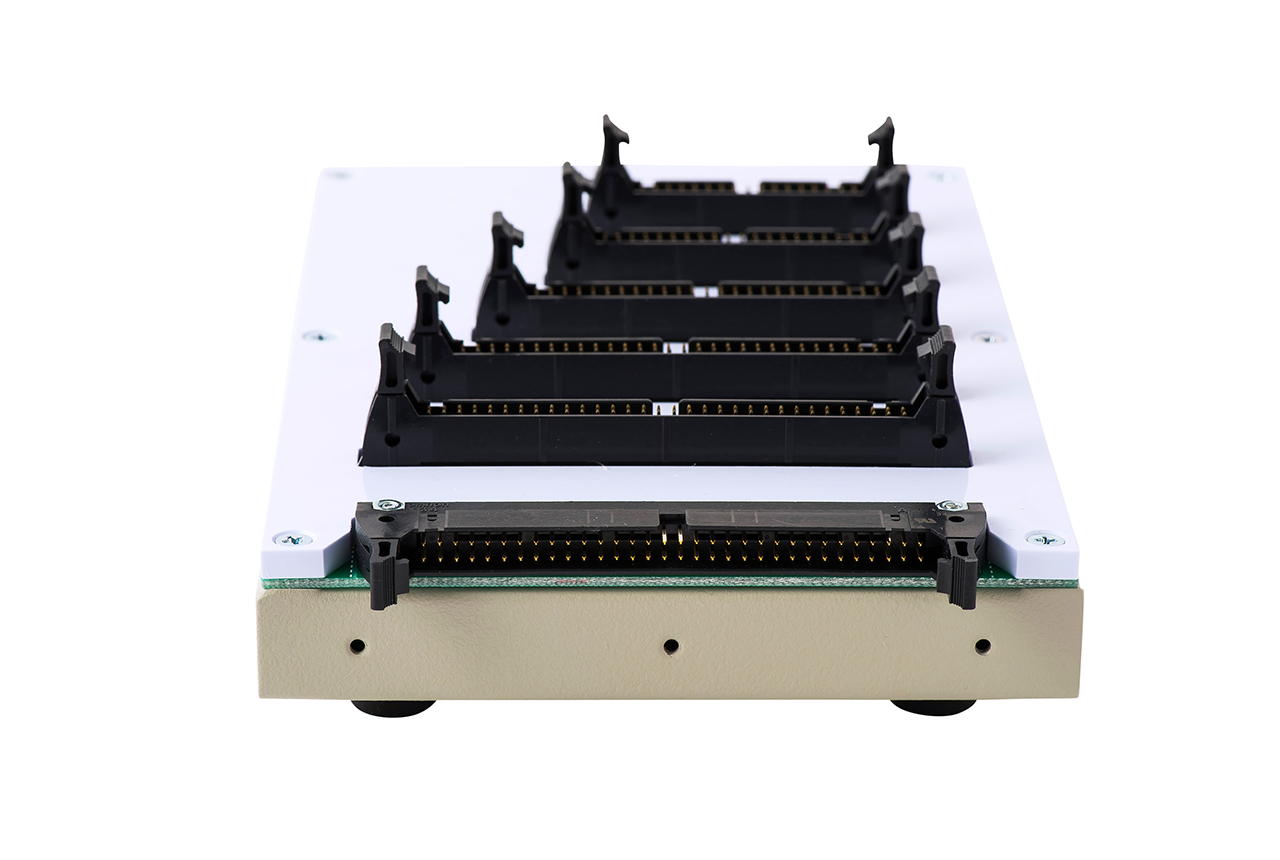

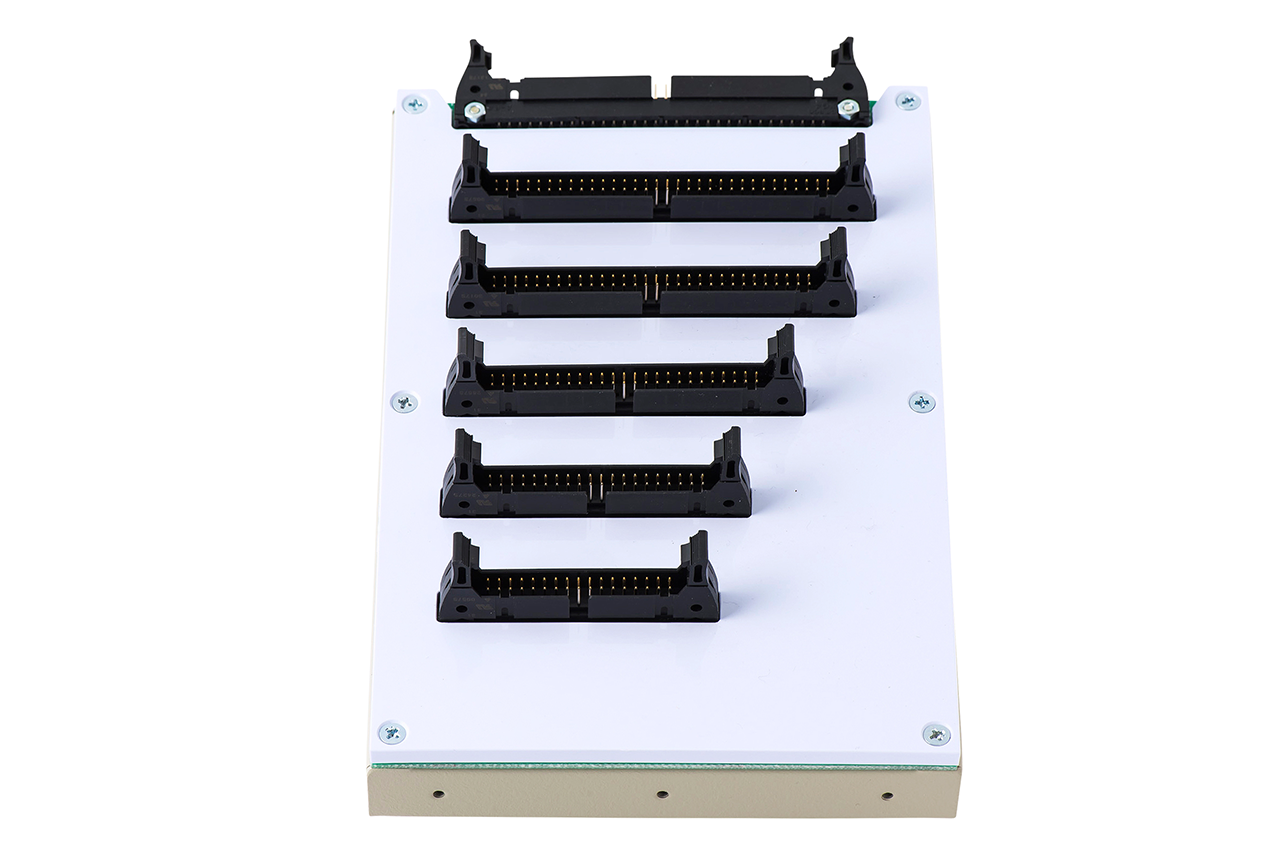

NM-ADP-02H
Conversion header adapter for high voltage cable harness testing（MIL connectors 34/40/50/60/64pin）
A jig adapter ideal for harness testing with high-voltage.
The board is covered for safety.
JPY 36,800
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
Specifications
| Connectors for the test target | MILーC-83503 34-pin header connector （1 nose） MILーC-83503 40-pin header connector （1 nose） MILーC-83503 50-pin header connector （1 nose） MILーC-83503 60-pin header connector （1 nose） MILーC-83503 64-pin header connector （1 nose） |
|---|---|
| Connectors for the tester | MILーC-83503 64-pin header connector （1 nose） |
| Size | W:130mm L:200mm H:26.6mm （Not including rubber feet / projections） |
