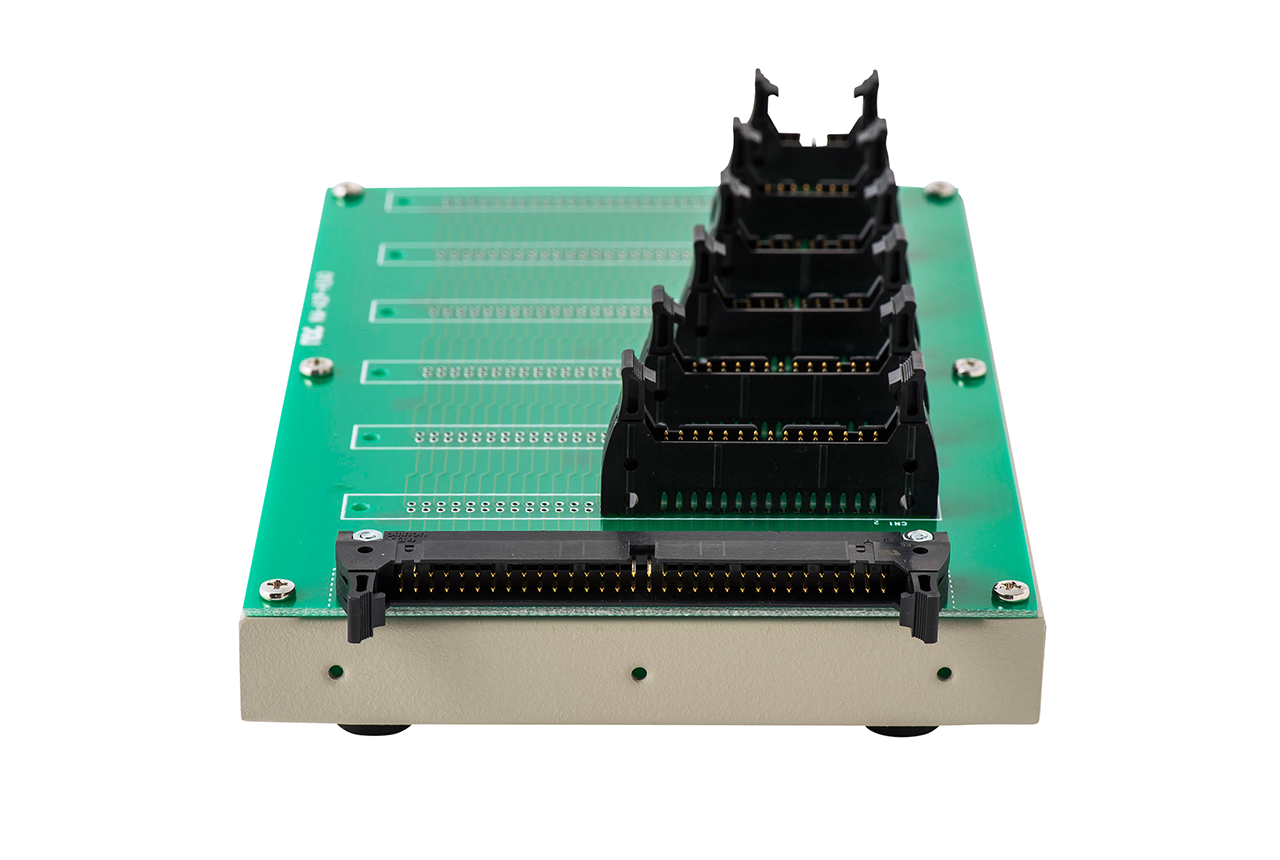

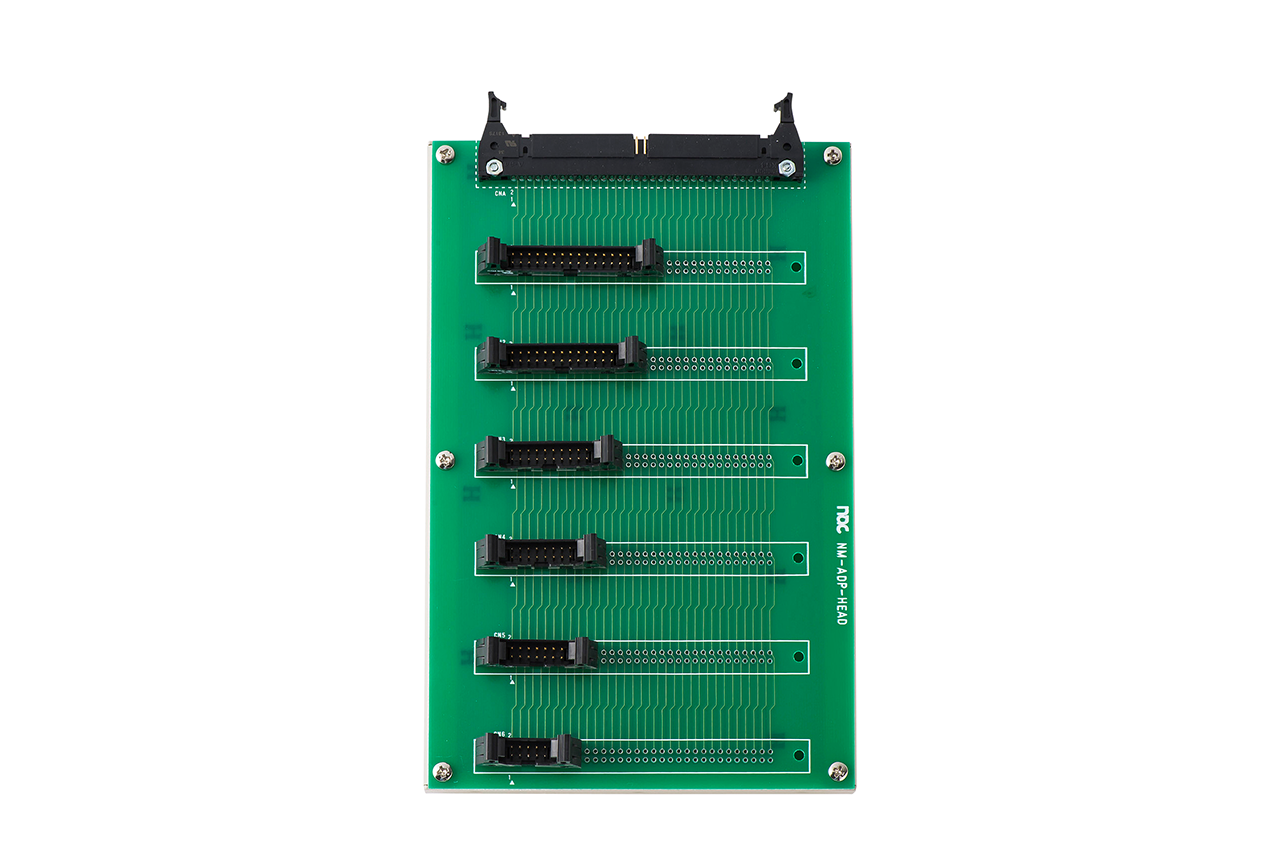

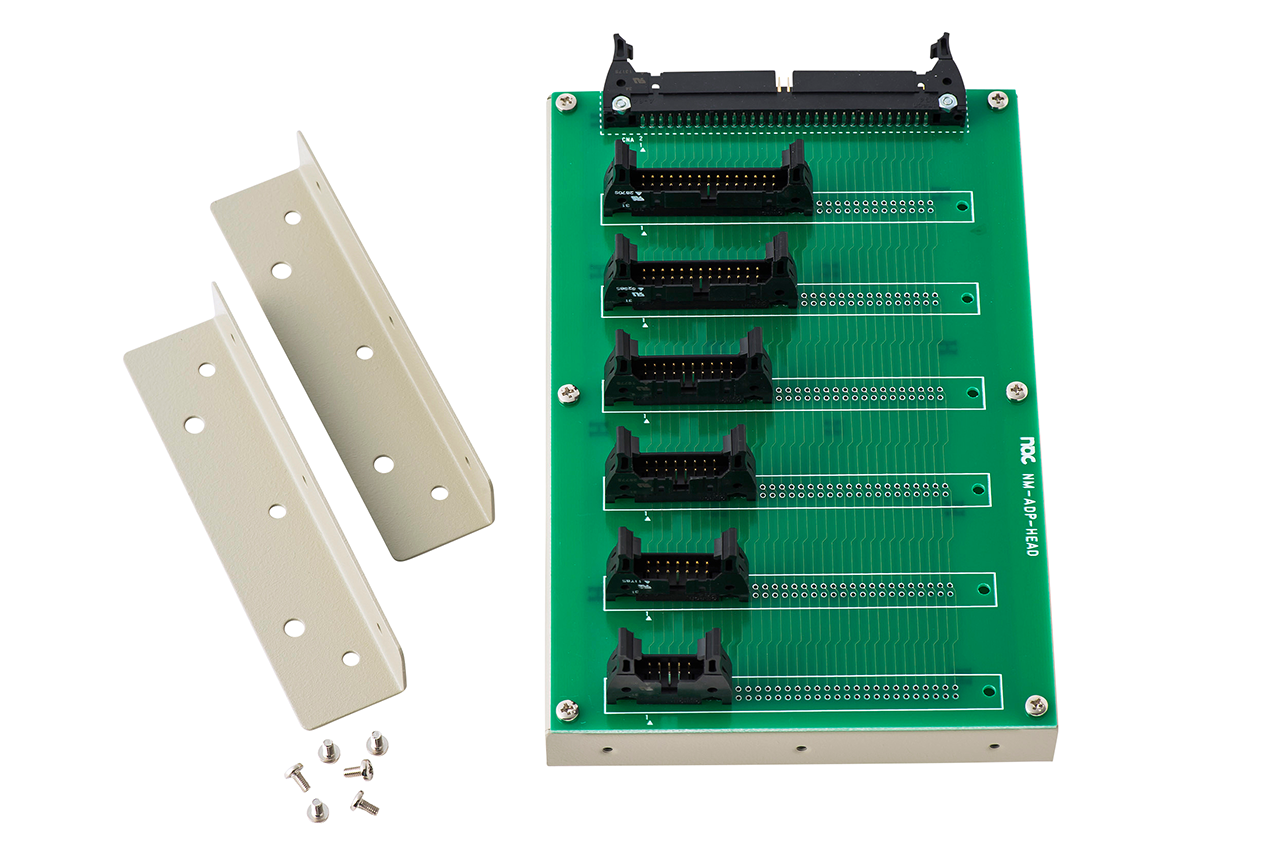

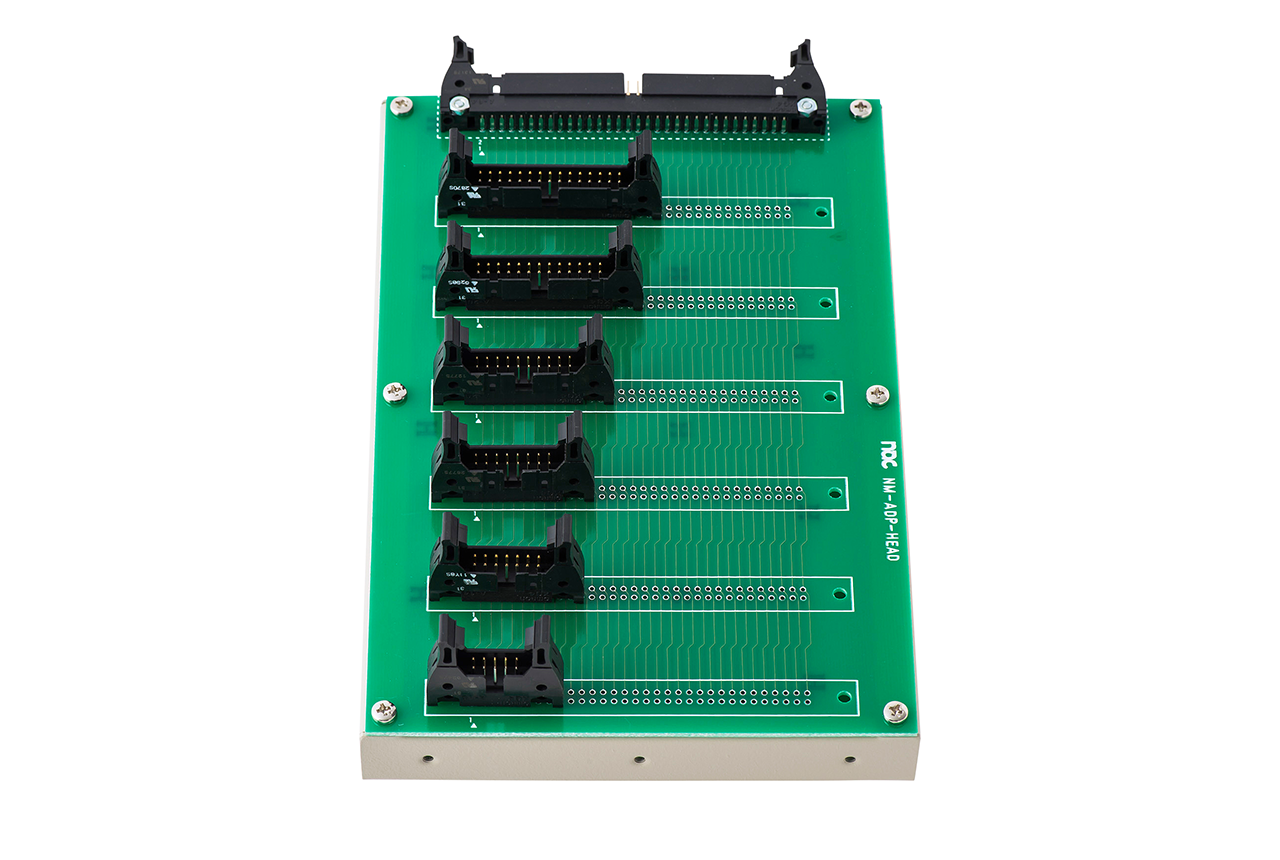

NM-ADP-01L
Conversion header adapter for cable harness testing（MIL connectors 10/14/16/20/26/30pins）
A jig adapter ideal for harness testing without high voltage testing.
JPY 26,800
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
Specifications
| Connectors for the test target | MILーC-83503 10-pin header connector (1 nose) MILーC-83503 14-pin header connector (1 nose) MILーC-83503 16-pin header connector (1 nose) MILーC-83503 20-pin header connector (1 nose) MILーC-83503 26-pin header connector (1 nose) MILーC-83503 30-pin header connector (1 nose) |
|---|---|
| Connectors for the tester | MILーC-83503 64-pin header connector (1 nose) |
| Size | W:130mm L:200mm H:21.6mm （Not including rubber feet / projections） |
