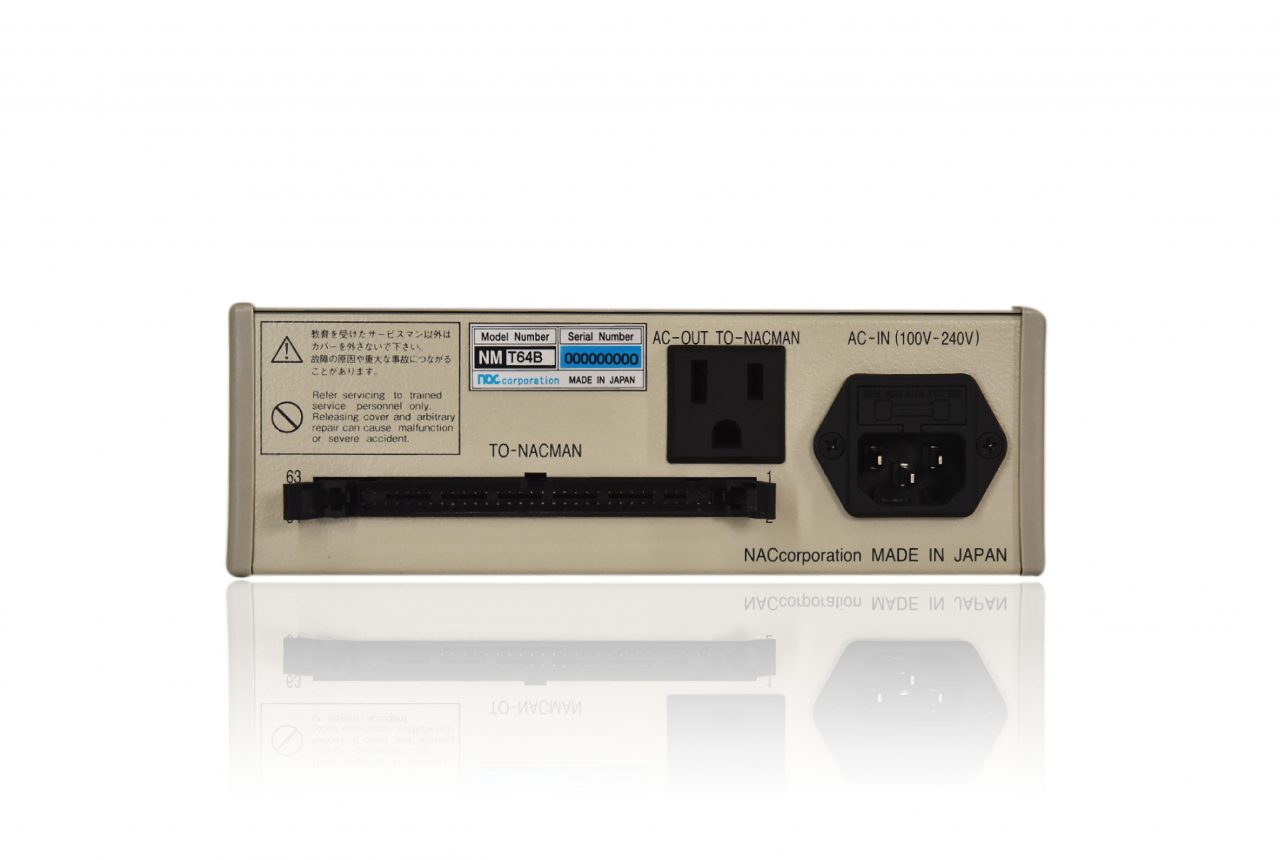

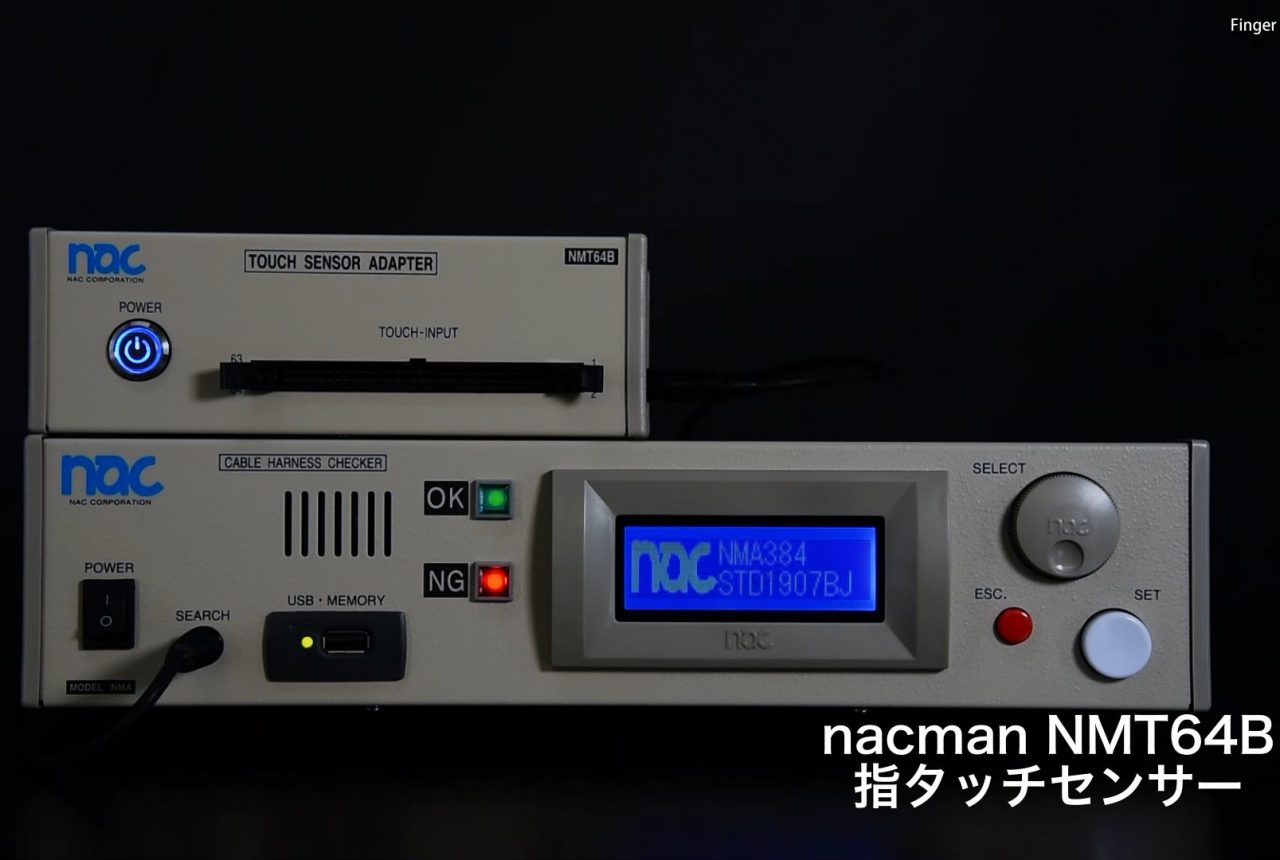

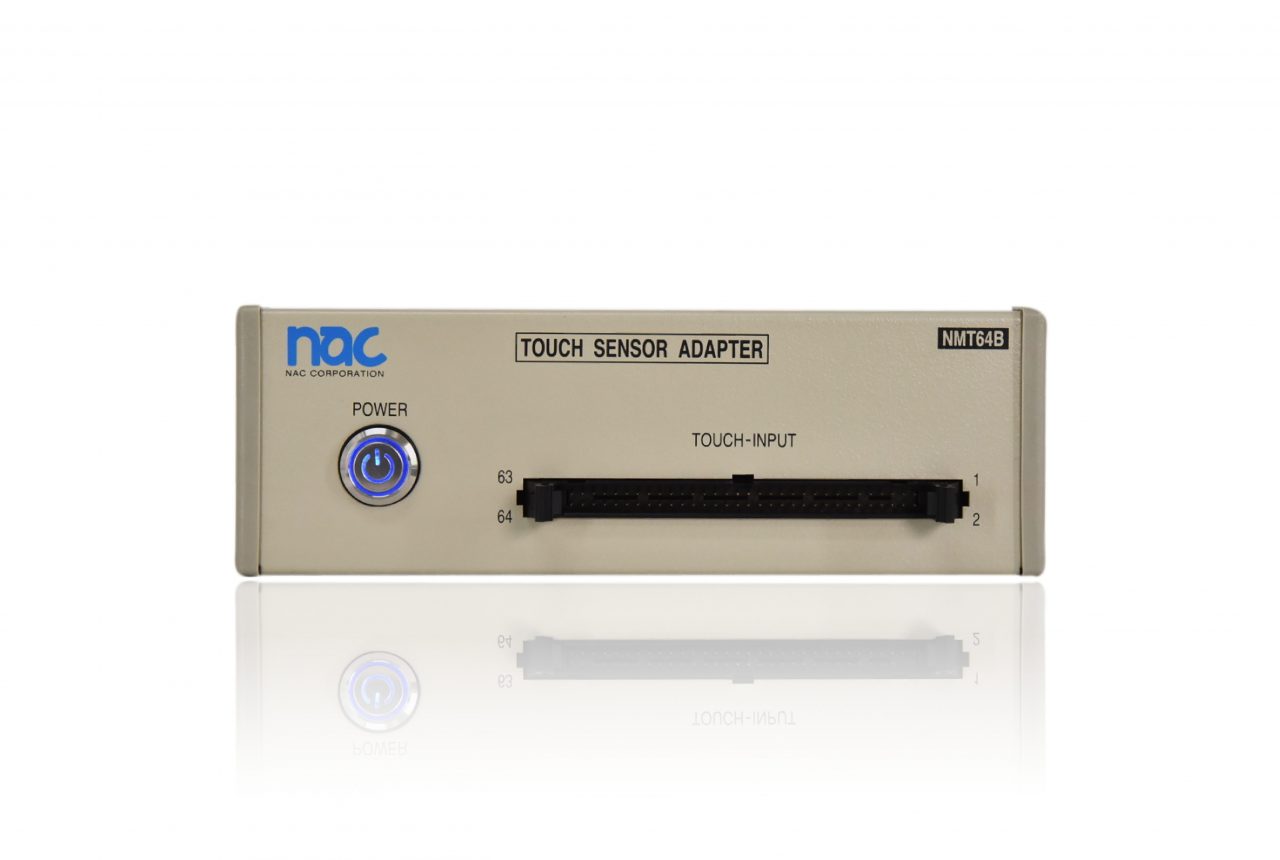

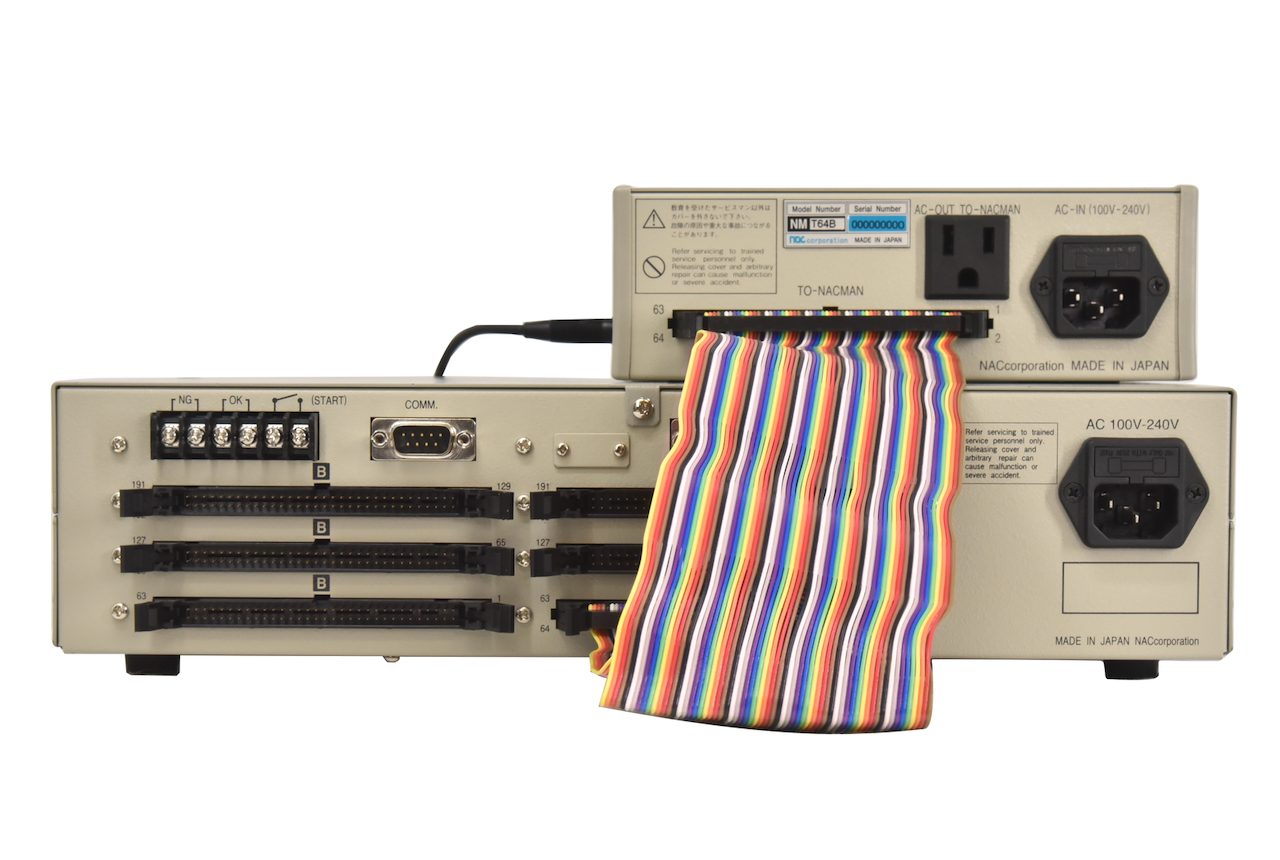

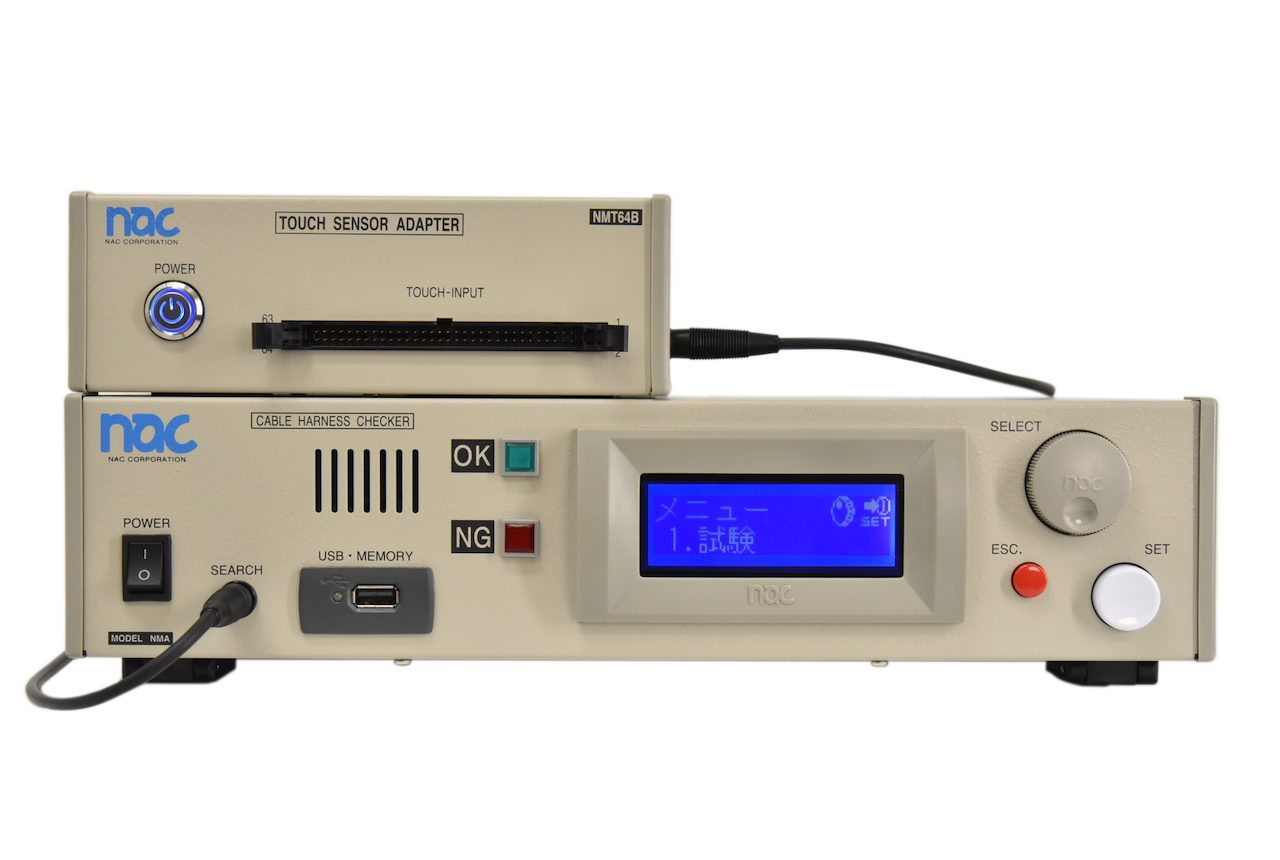

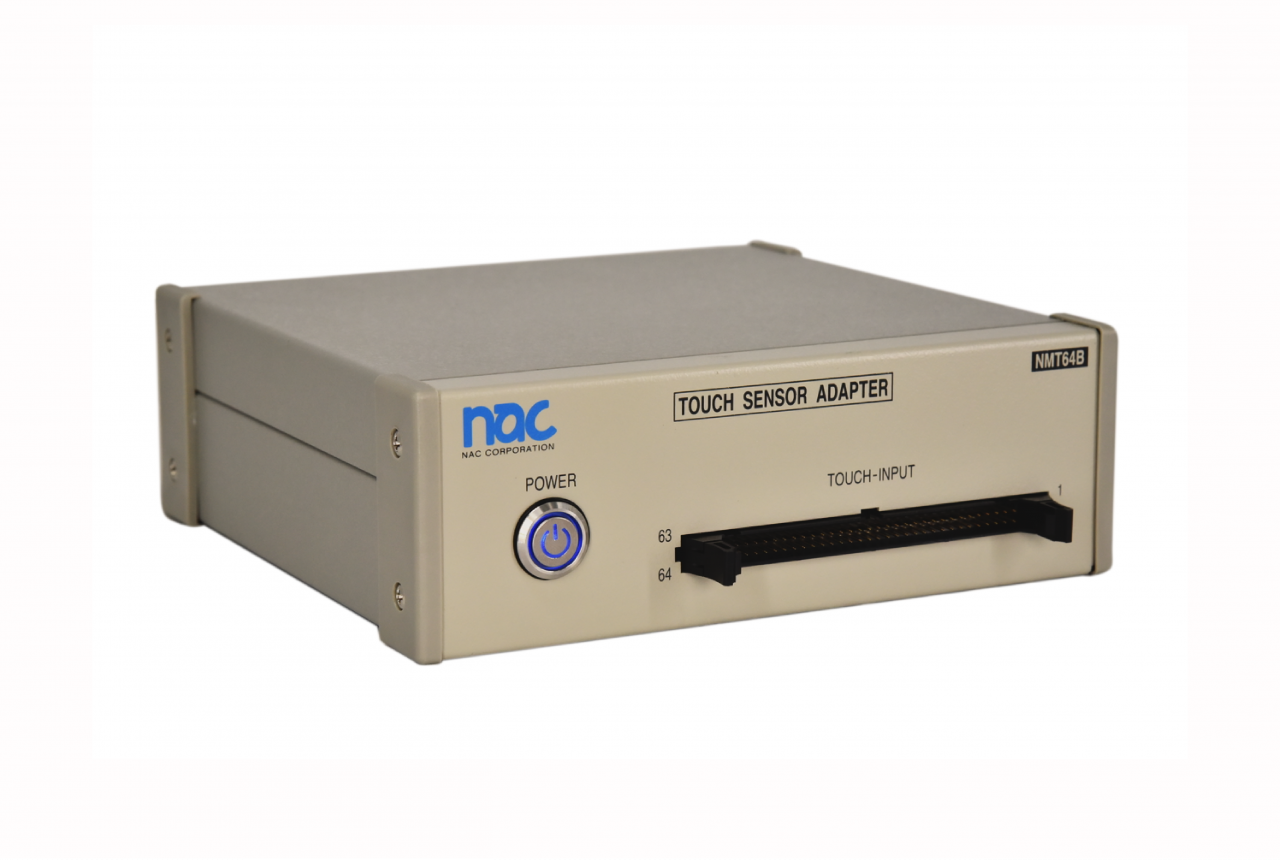

Front of Finger touch sensor nacman NMT64B for cable harness Back of Finger touch sensor nacman NMT64B for cable harness NMT64B stand alone Front of NMT64B and cable harness tester NMA Back of NMT64B and cable harness tester NMA Wiring testing by finger for cable harness Example of using finger touch sensor Cable harness tester NMA with Finger touch sensor nacman NMT64B Picture for NMT64B operation video

Finger touch sensor nacman NMT64B

Easy continuity check by simply touching with a finger

The finger touch sensor NMT64B is an optional product for harness testers that enables continuity testing by touching cable conductors with a finger.
It can detect the induced current of the human body and conduct continuity tests. NMT64B can be operated with a harness tester having search function.

Test point

64 points
Operation

Connect to nacman series with search function
Stand-alone / PC communication

JPY 98,000
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee

Product Overview Video Manual

Quotation

Continuity check by detecting "induced currents received by the human body".
Easy testing of unprocessed cable with a finger touch

Harness tester "nacman" is widely recognized and operated in Japan and around the world. Electrical testing of unprocessed harnesses is difficult to perform with a probe. Finger Touch Sensor NMT64B realizes continuity testing by finger touch using the induced current of the human body. Testing can be easily performed without damage to the product. The new product can be introduced by simply connecting it to the nacman series, which has a search function. We hope you will utilize this new product with its potential in all kinds of industries.

指タッチセンサー NMT64B ハーネス検査のプロモーション動画
指タッチセンサー NMT64B 使い方動画

Finger touch sensor nacman NMT64B all-function operation video

You can check the operation of the nacman NMT64B in the video. Work that used to be performed by two or more people can now be done efficiently by one person. PC software (WireExpress / WireExpressHi-Pot) displays terminal names to support wiring work.

ラーニングセンターへ
NMT64B_指で触れるだけで導通検査

Finger-touch continuity check improves wiring work

Finger-touch continuity testing can be used for a variety of work. It can be used not only to check the continuity of a harness with one end unprocessed, but also to navigate the insertion of terminals into a connector housing. Also, the continuity check of distribution board cables, which used to be a two-person job, can now be easily performed by a single person.

NMT64Bなら指タッチ導通検査と目視確認同時に可能

Smooth continuity and visual testing

By registering the mark tube name in the PC software the corresponding name can be displayed. Similarly, registering wire colors, terminal shapes, etc. can be helpful for visual testing.

NMT64B_ハーネスチェッカーnacmanシリーズに接続

Better solutions for harness testers nacman

NMT64B can be operated simply by connecting to the nacman series with search function. NMC+ series operated around the world, is the optimal model. NAC CORPORATION, with its proven performance, offers a new testing method for unprocessed cables.

Cases

指タッチで導通検査

For continuity testing of unprocessed cables

Instead of a search probe, continuity can be easily checked by touching with a finger.

指タッチで導通検査をしてコネクタハウジング

For navigation when housing to connectors

Housing can be done while checking the connection points, thus reducing mistakes.


指タッチで導通検査をしてマークチューブ印字確認

To avoid getting the marked tube wrong

By registering the name of the marked tube in the software, it is convenient to check the description and continuity at the same time.

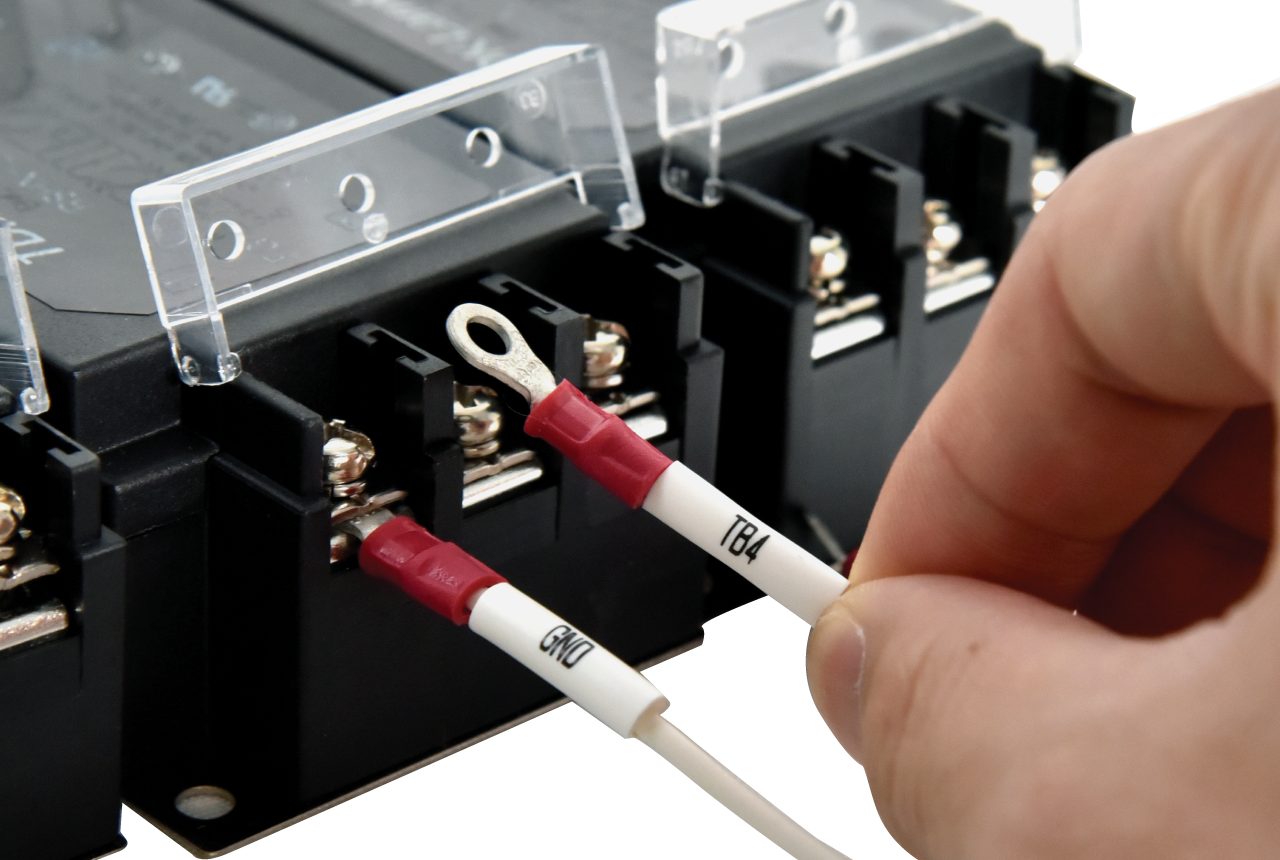

指タッチで導通検査をして配電盤へ配線

For improving the efficiency of wiring to the switchboard.

It is convenient for checking the wiring points by touching the cable terminals with your fingers. If the names of connection points are registered in the software, wiring work can be performed without checking the drawing.



Detail

Number of search points 64 64
Connector for testing MIL header type 64Pin long clip (OMRON XG4A-6434)
Connector for connecting master unit MIL header type 64Pin long clip (OMRON XG4A-6434)
Power supply AC90V~AC240V 50/60Hz 15VA
Power outlet for expansion[*] Power outlet for expansion to connect and use multiple units of this instrument.
Environmental conditions Temperature: 5°C~40°C Humidity: 5%~70% (non-condensing)
[*] Do not use this outlet for purposes other than expansion. The power cable must be a 3-pin (grounded) cable.



Testing Specification

Search Testing Commercial AC induction current detection method

Accessories

Power cable NMCBL-PWR
Cable for connecting tester/th> NMCBL-64-0.8C
Search Jack Connection Cable NM-SRH-CBL
Screwdriver for adjusting finger touch detection level NM-SD

Size, Weight, Power Supply

Size W:180 × H:60 × D:175 (mm)
Weight Approx. 1.4Kg
Power source AC90V～AC240V(50Hz/60Hz)

Document

Catalog Download
Manual Download
