Automatic Marking Machine Smart Marker NMPEN04

More Reliability in Testing

Smart Marker NMPEN04 can automatically mark any inspected products such as harnesses, cables, circuit boards, connectors, etc.
Compact design and free angle mounting make it easy to install.
Install it for process control, prevention of incorrect mixing of defective products, and quality improvement.
Inspected markings with pens or stamps support reliable product shipments.

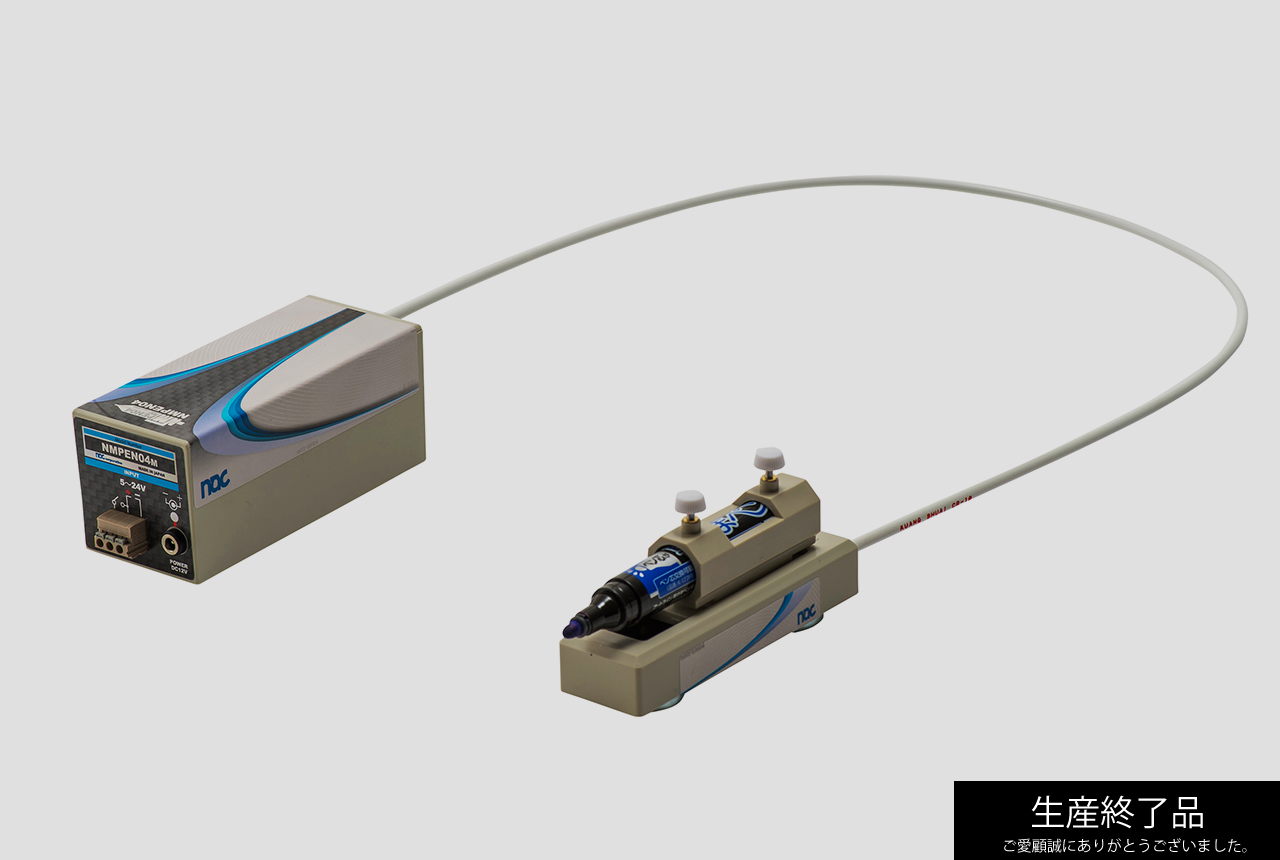

*Not currently available

Quotation

Ease of installation by sophisticated design. NMPEN04 marks evidence of testing in any environment.

NAC CORPORATION products are designed to be simple and easy to use. Its compact design contributes to space-saving at the worksite. The attached mounting plate allows for any placement and any angle. There is no question about the ease of installation. It is one of the most popular products among customers in various industries.

For all industries involved in manufacturing, production, and quality control Building reliability with customers and users at a low cost.

In electrical testing of harnesses, connectors, and other components, a single defect can cause serious equipment failure. Product safety depends on the reliability of each and every component. By introducing this product into process control, uninspected items and defective items can be clearly identified at a glance. Visualization of all kinds of testing that cannot be seen supports the prevention of incorrect mixing and quality improvement. This product can be used for all types of testing, such as visual inspection, image inspection, and functional checks.

Advantages

・Unique tension mechanism prevents pen nibs from being crushed.
・Compact, 35 mm range of motion allows for installation in automatic machines.
・The magnet allows for mounting and marking at any angle in 360 degrees.
・Pen of 9~15φ can be available. Easy replacement design.
・Marking operation by either contact input or voltage input (5V~24V)

Size, Weight, Power supply

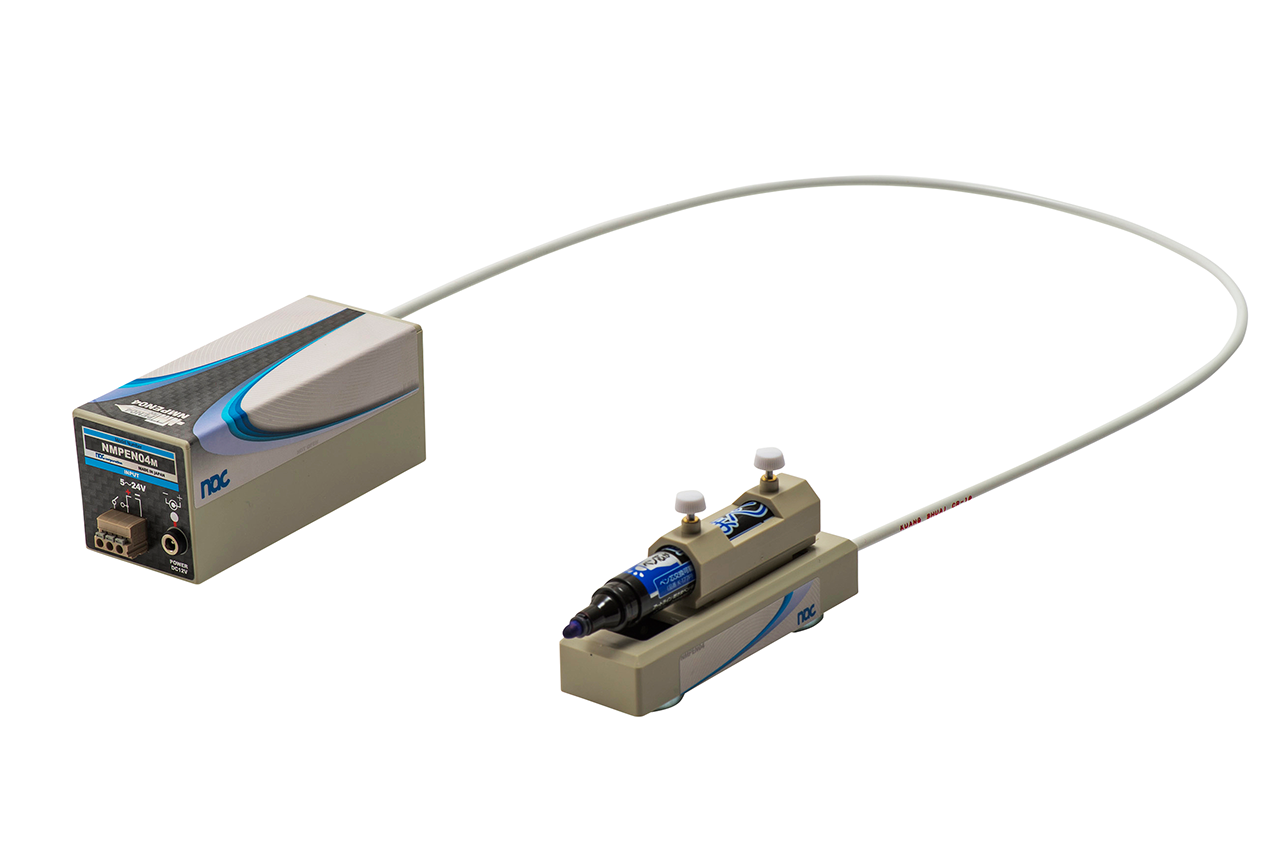

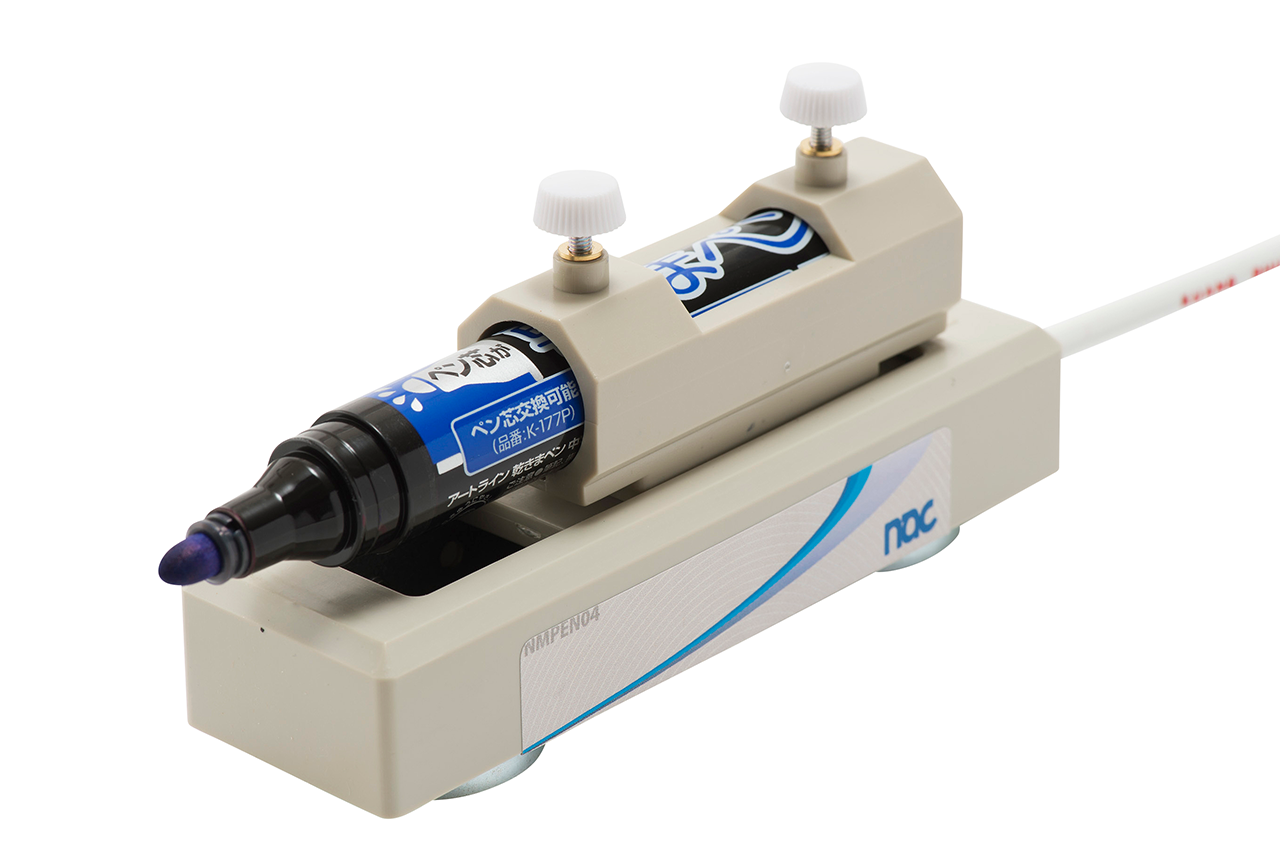

Size [Marking Unit] W:40 × H:25 × D:130 (mm)

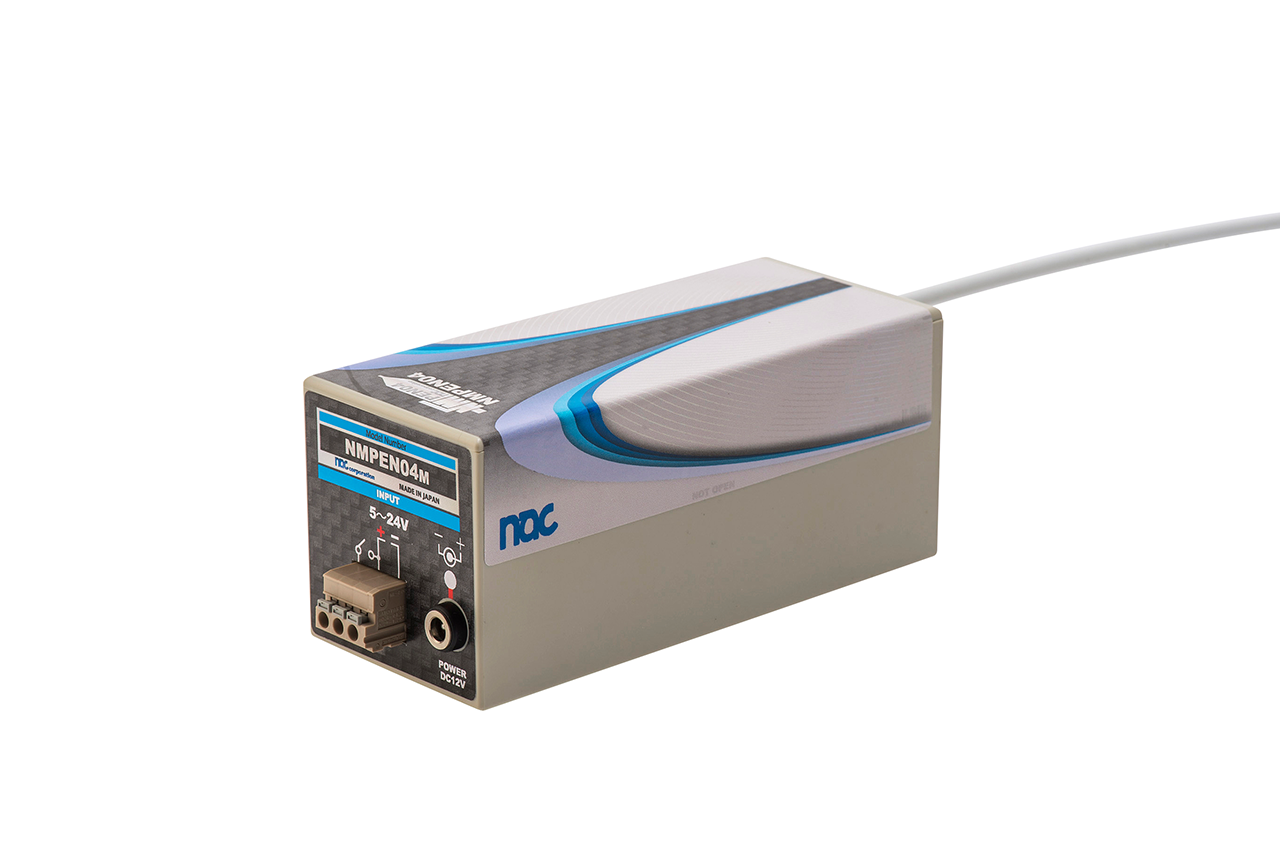

[Control unit] W:55 × H:55 × D:135 (mm)
[Wire length] Approx. 700mm
Weight [Marking Unit] Approx. 180g
[Control unit] Approx. 400g
Power supply AC 90V to AC 240V (50Hz/60Hz)

Accessory

　　　　　　　　　 　　　　　　　　　　　　　　　　　　 　　　　　　　　　　　　　　　　　　 　　　　　　　　　　　　　　　　　　　　　　　 　　　　　　　
AC adapter NACMAN-AC NACMAN-AC
Mounting plate L-shaped mounting plate. It can be fixed with screws, tape, etc., and the unit can be installed with a magnet.
Adjustment adapter for pens and stamps It can be used when marking with a thin pen or a stamp

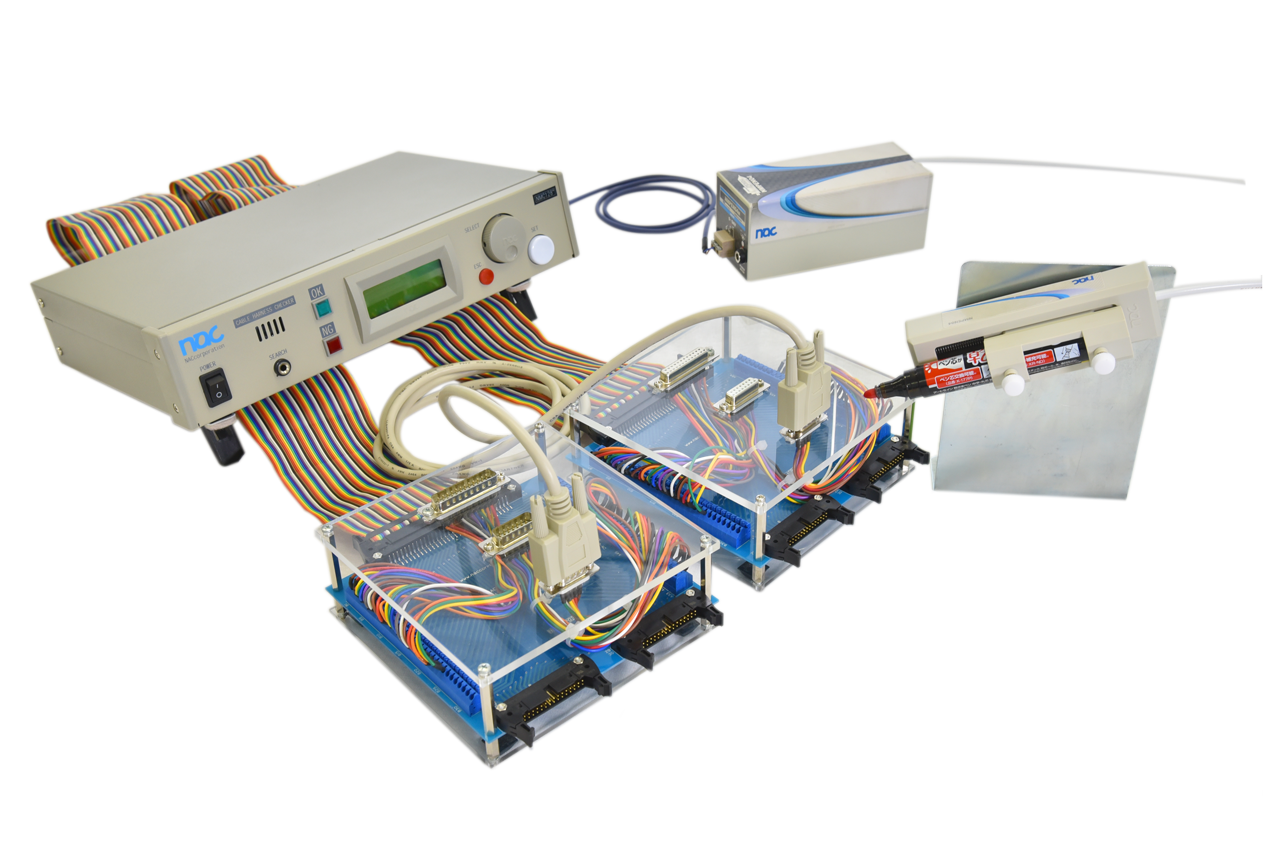

Connection cable Cable to connect to the tester and the production equipment. By connecting to the output terminal of the harness tester, it can be marked after inspection.

Document

　　　　　　　　　 　　　　　　　　　　　　　　　　
NMPEN04 Manual Download
