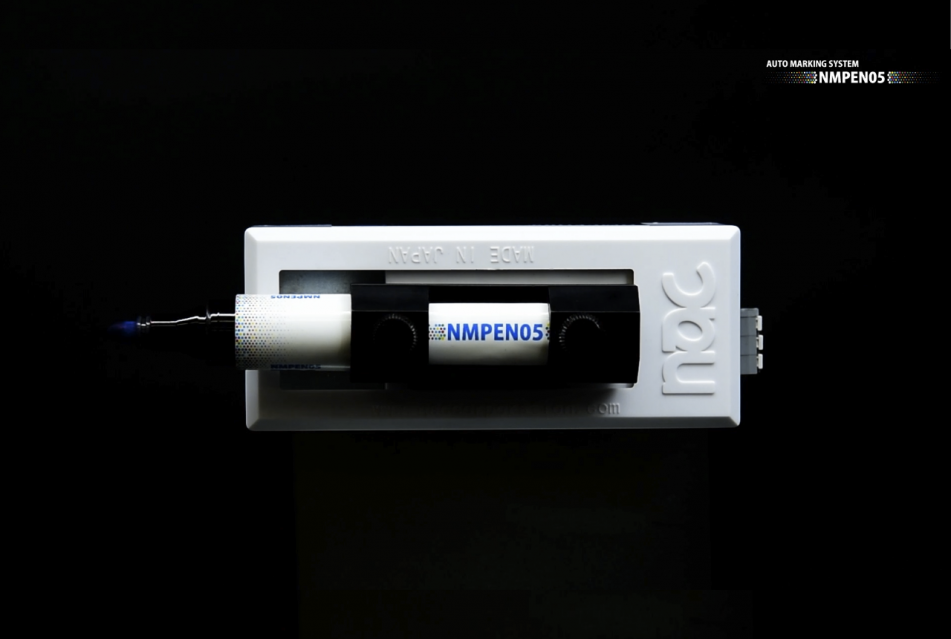

Automatic Marking Machine Smart Marker NMPEN05
Electrical inspection is invisible. Visualize inspection results with marks.

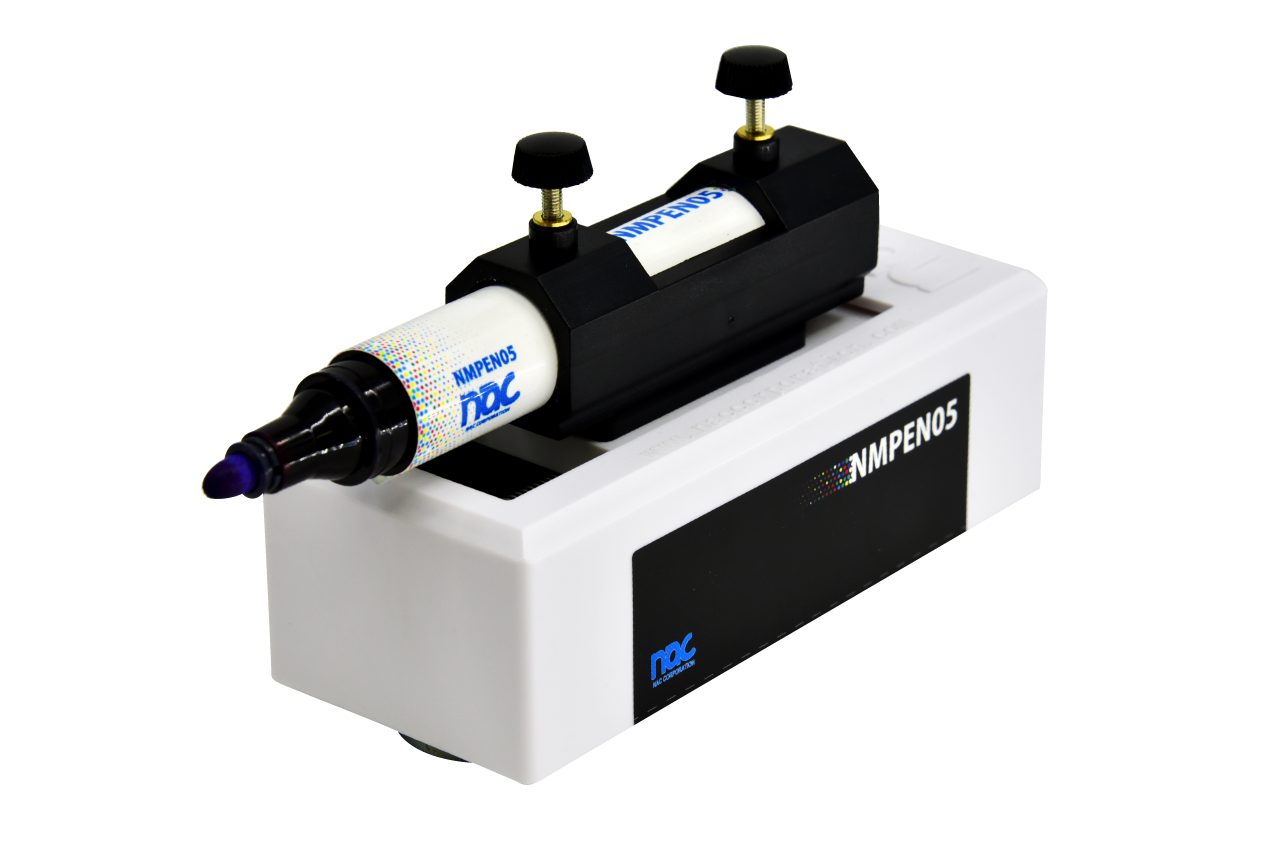

The automatic marking machine smart marker NMPEN05 is used widely for harnesses, cables, boards, connectors, etc. The mark can be automatically printed on all inspected products.
With angle-free installation and compact design,
You can help prevent incorrect mixing of NG products and get better quality.
Inspection marks with pens and seals support reliable product shipment.
| AC adapter | NMPEN05-AC |
|---|
JPY 22,800
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee
Compact and easier to use
With the sophisticated design, ease of introduction on site
Nac Corporation products are designed to be simple and easy to use. The automatic marking machine smart marker NMPEN05 is half the size of the previous model NMPEN04. We will contribute to further space saving on site. The angle can be freely set anywhere with the attached mounting plate. No complaints about ease of introduction. It is one of the most popular products for customers in all industries.
For all industries related to manufacturing, production and quality control
Build trust with customers at low cost.
For example, in the electrical inspection of harness connectors, one defect causes serious equipment failure.
User safety and security are based on the trust of each part.
If this product can be introduced to process control, uninspected products and NG products will be obvious at a glance.
This product, which "visualizes" all invisible inspections, supports your company in preventing erroneous mixing and improving quality.
It can be used for all kinds of inspections such as appearance inspection, image inspection, and function check.
Advantages of automatic marking machine smart marker NMPEN05
・Pen tip is hard to be broken by original tension mechanism.
・It is compact and can be installed into automatic machines.
・It can be mounted at any angle 360 degrees with the magnet.
・Commercially pens and stamps can be used and the exchange is easy.

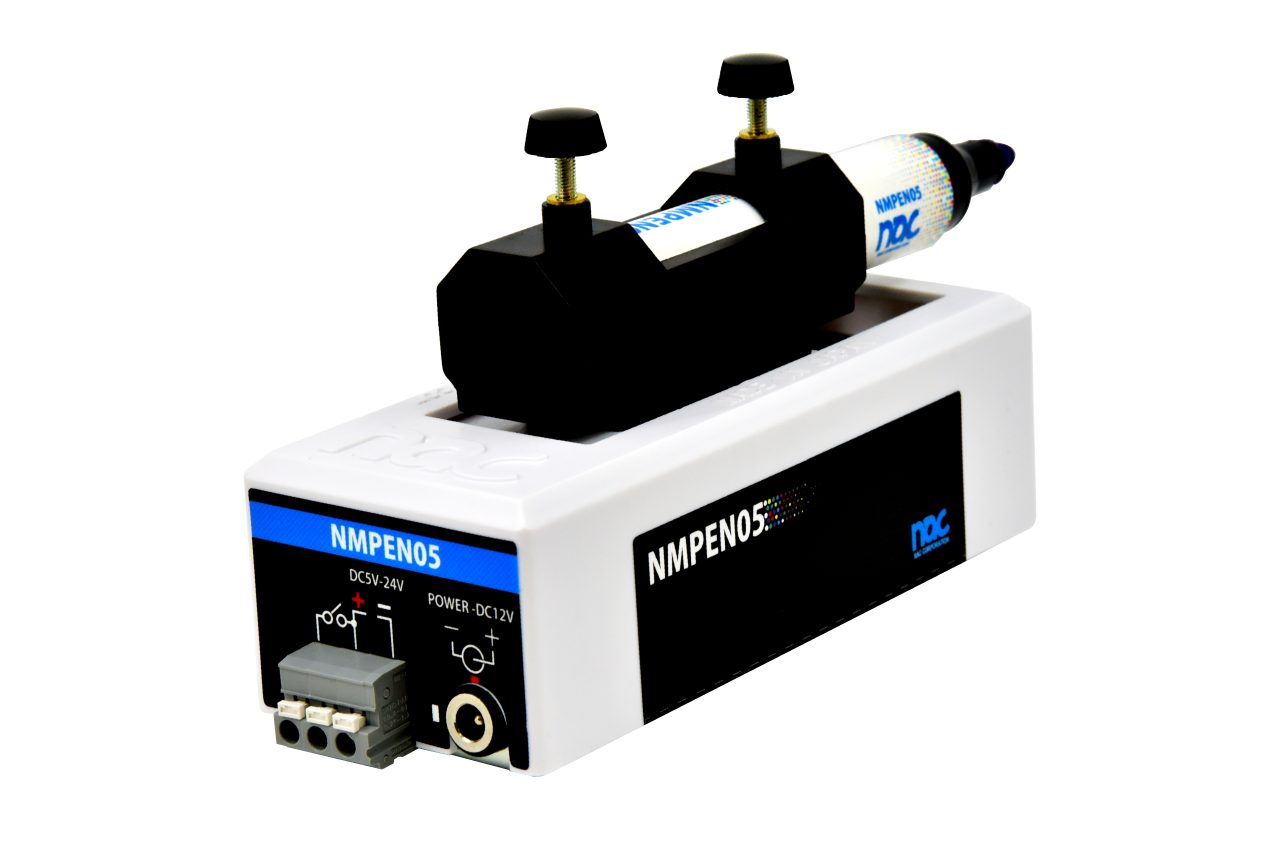

・Contact input and voltage input are possible（5V~24V）
Size, Weight, Power supply
| Size | 【Body】 W:51.2 × H:65 × D:124.2 (mm) |
|---|---|
| Weight | 【Weight】 約380g |
| Power supply | AC90V～AC240V(50Hz/60Hz) |

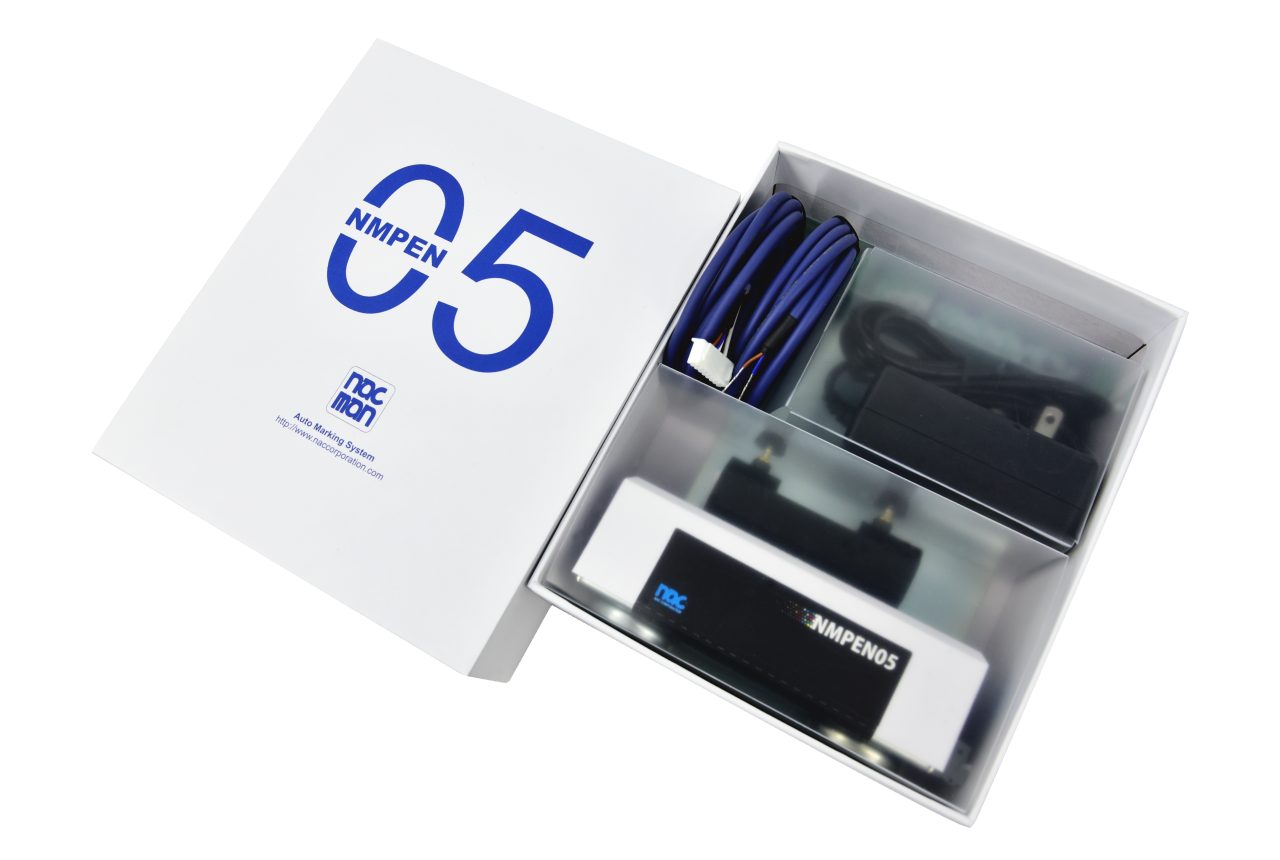

Accessories
| AC adapter | NMPEN05-AC |
|---|---|

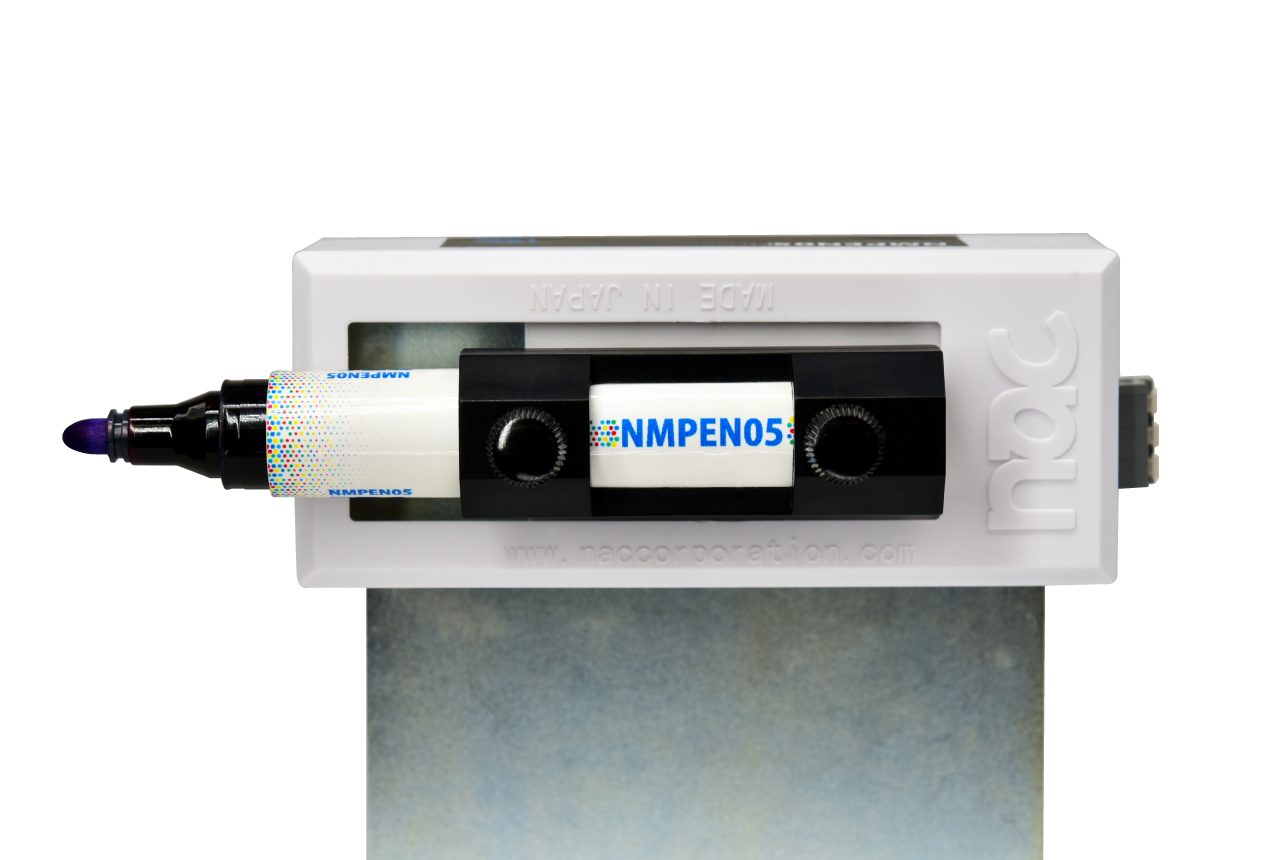

| Mounting plate | L-shaped mounting plate. It can be fixed with screws, tape, etc., and the unit can be installed with a magnet. |

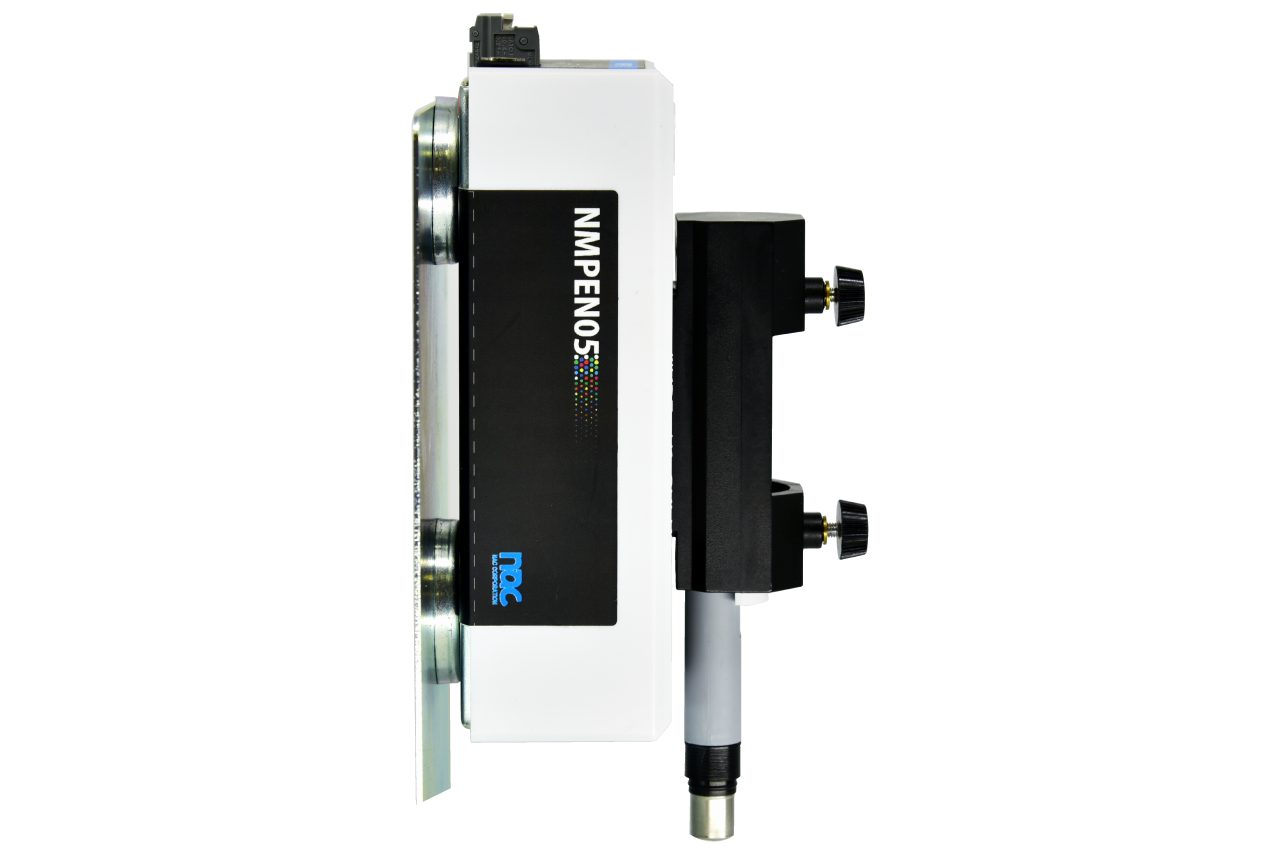

| Adjustment adapter for pens and stamps | It can be used when marking with a thin pen or a stamp |

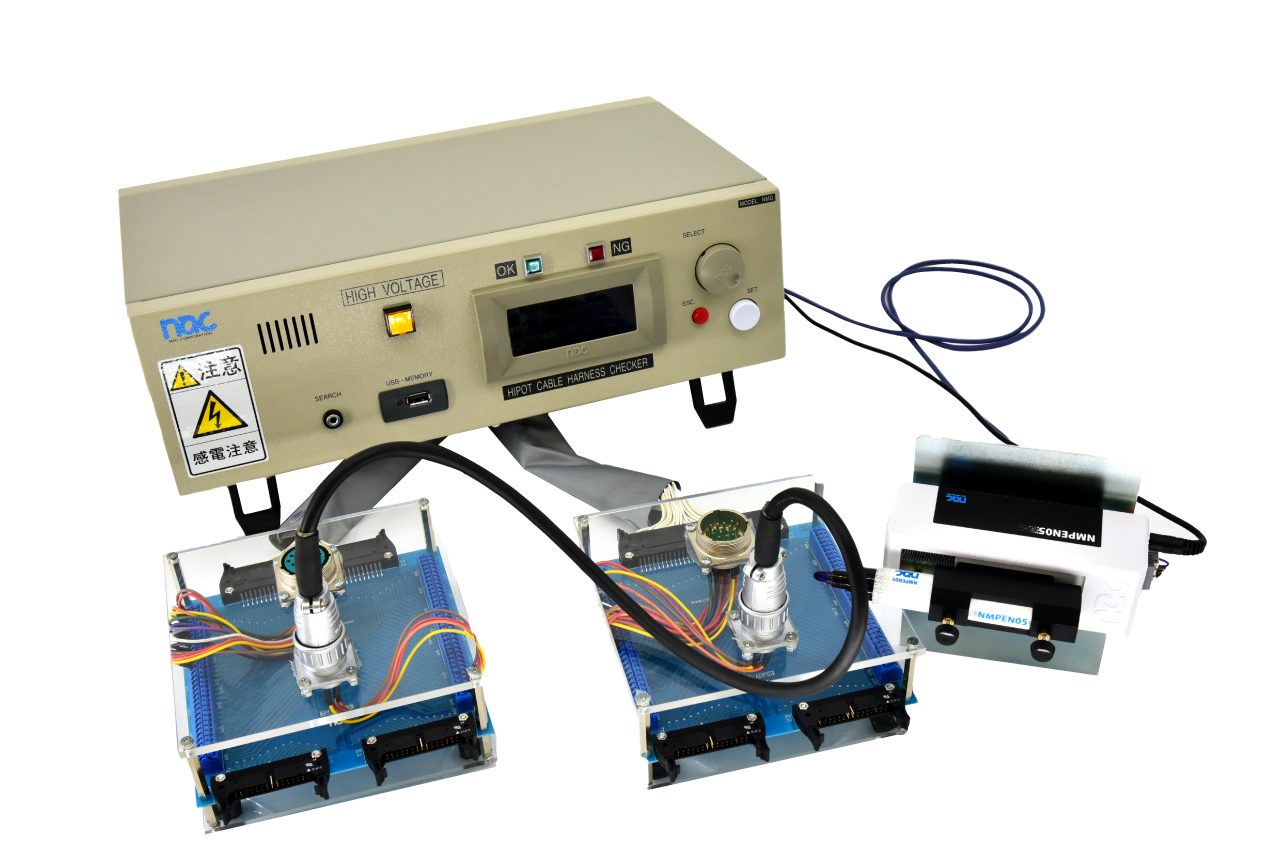

| Connection cable | Cable to connect to the tester and the production equipment. By connecting to the output terminal of the harness tester, it can be marked after inspection. |
