NMF series｜Cable Harness Tester
Unit combining method.
Ultra-fast measurement at many points.
Multiple feature tester that goes beyond the digital method. It enables resistance measurement and can easily combine devices in units of 256 points.
| Test Points | 256–8192（variable per 256 points） |
|---|
JPY 430,000(256points) – JPY 7,095,000(8192points)
Shipping: 2-4weeks After Order * Not Including Transportation Cost and Fee
- Feature
- Specification
- Model
- Accessories
- Documents
- Options
Feature

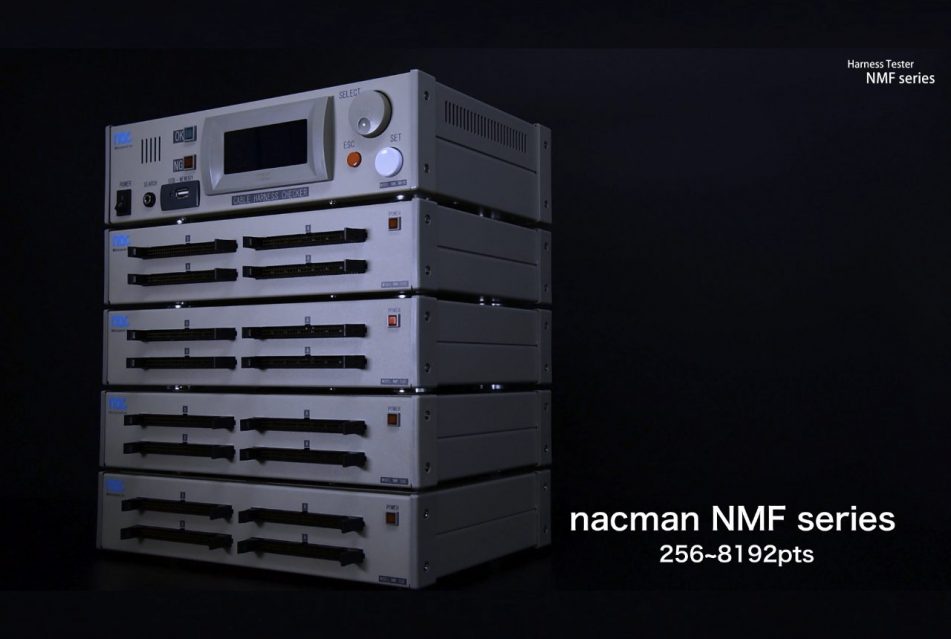

Ultra-fast measurement at many points!!Cable Harness Tester NMF series
NMF series is widely operated for testing wire harness having many points in various industries such as
Automobile,Construction machinery,Train,connectors,and Bare board.
It takes over the trust, operability, and maintainability of the previous model, and becomes industry standard for testing many points cable.
![[Video] how to operate Cable Harness Tester NMF,NMA and NMC+](https://www.naccorporation.com/en/wp-content/uploads/2020/12/Video-how-to-operate-Cable-Harness-Tester-NMA-NMF-NMC-.png)

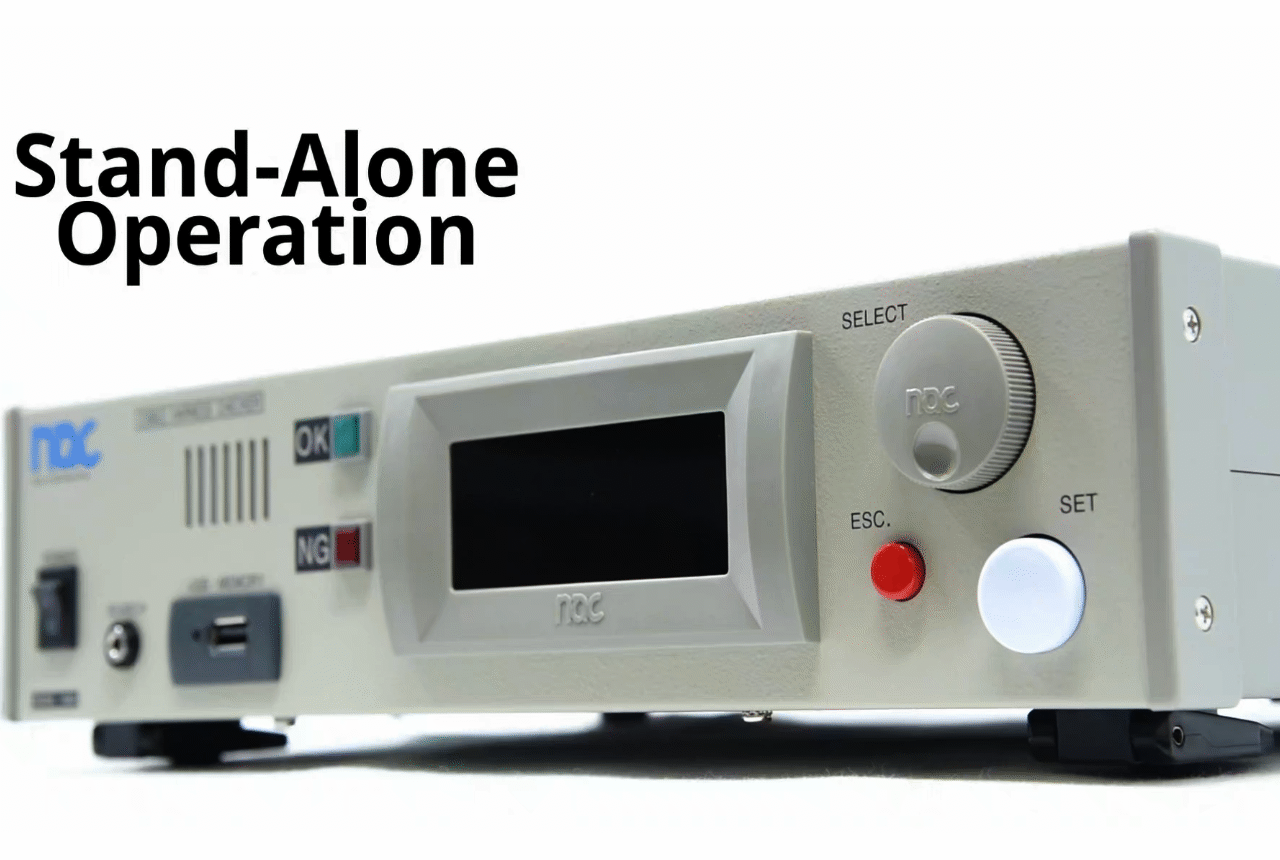

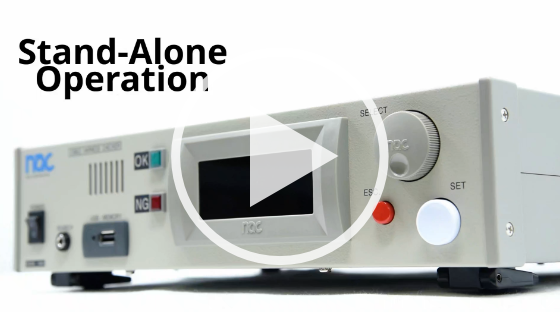

How to Operate Cable Harness Testers in Stand-Alone
This video will show you how to operate the Cable Harness Testers in Stand-Alone.
You can check the preparation of test data by sampling, test the cables, and the settings.
This video can also be used for confirmation when considering the introduction of the Cable Harness Testers and for training the operators.

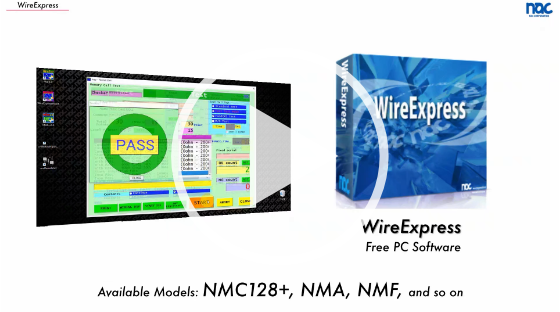

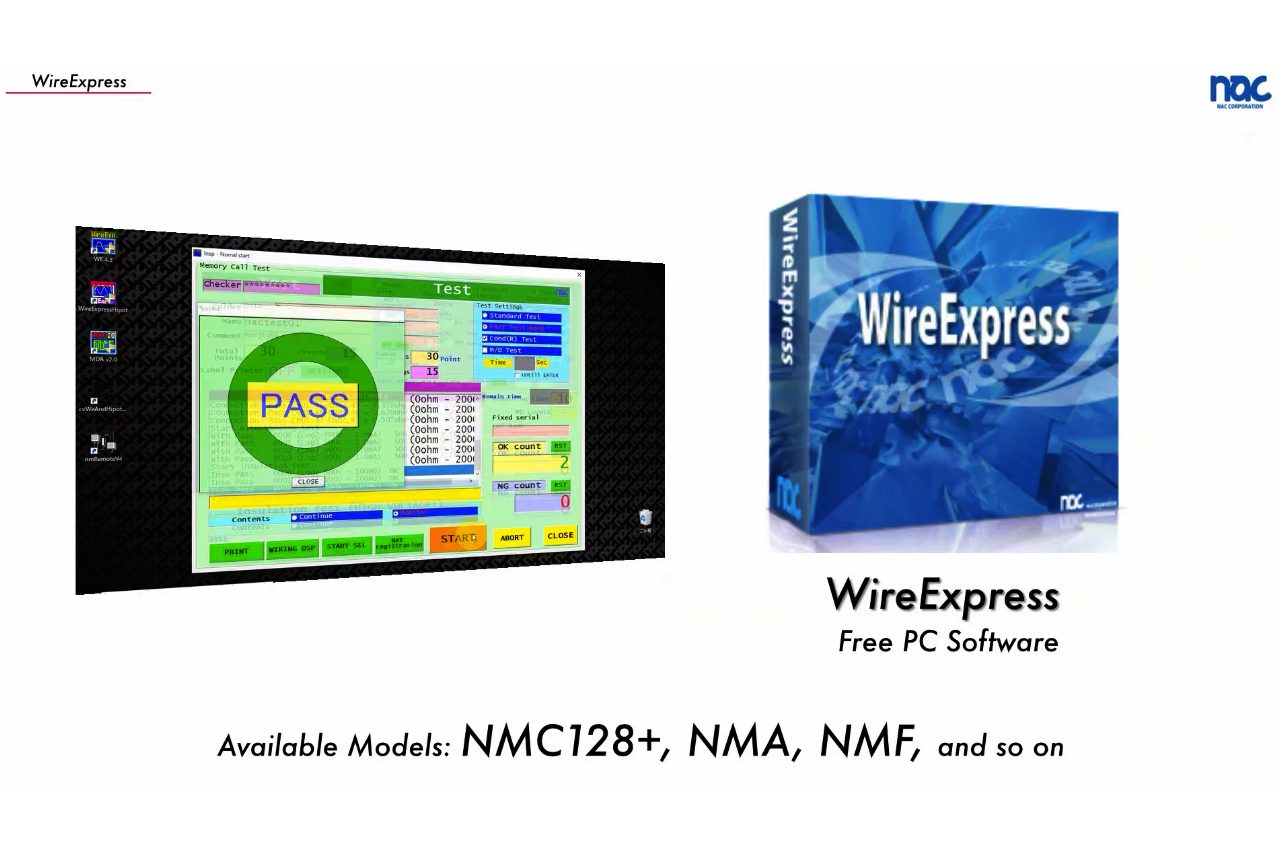

PC Software Operation for Cable Harness Testers
WireExpress is the free PC software to operate the Cable Harness Testers.
This video will show you how to operate the software.
It also allows for the manual editing of test data and the efficient management of the test report.

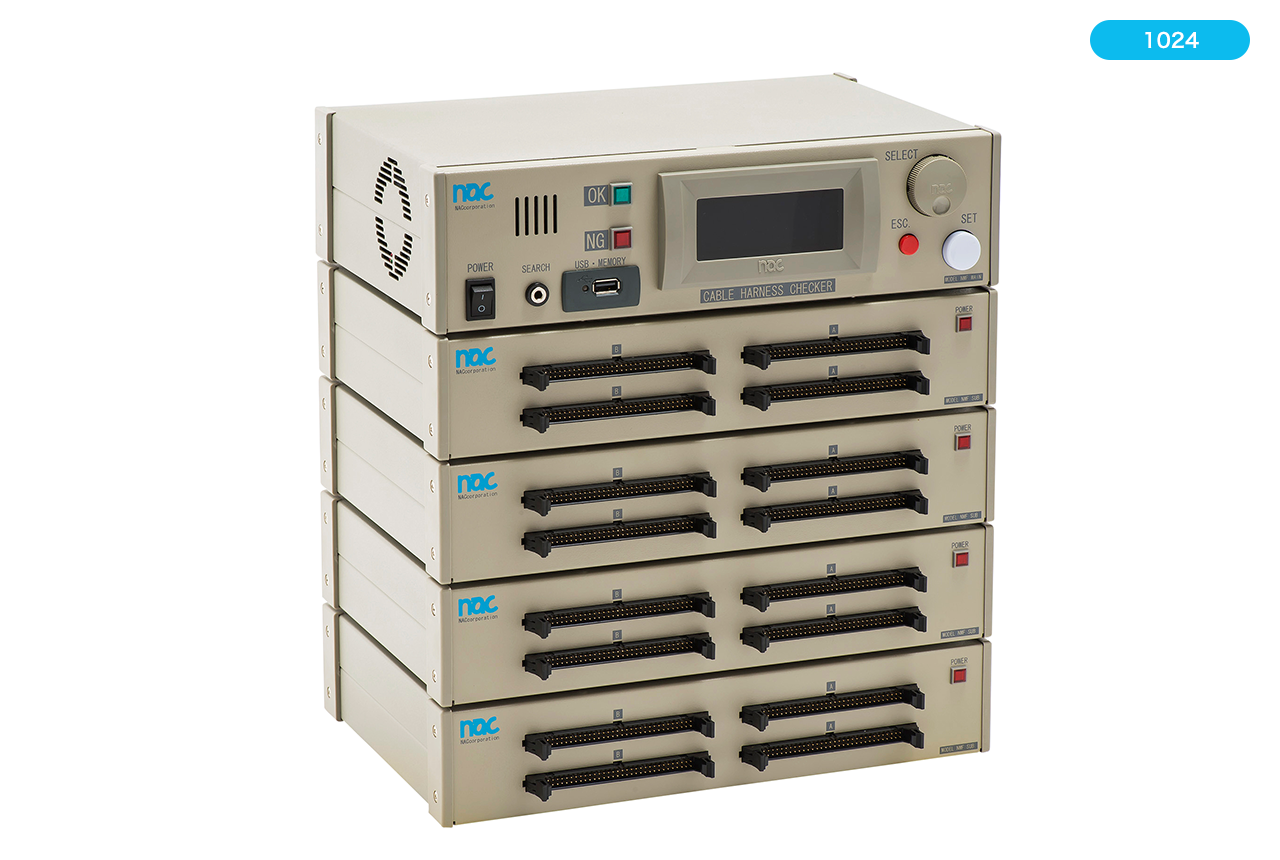

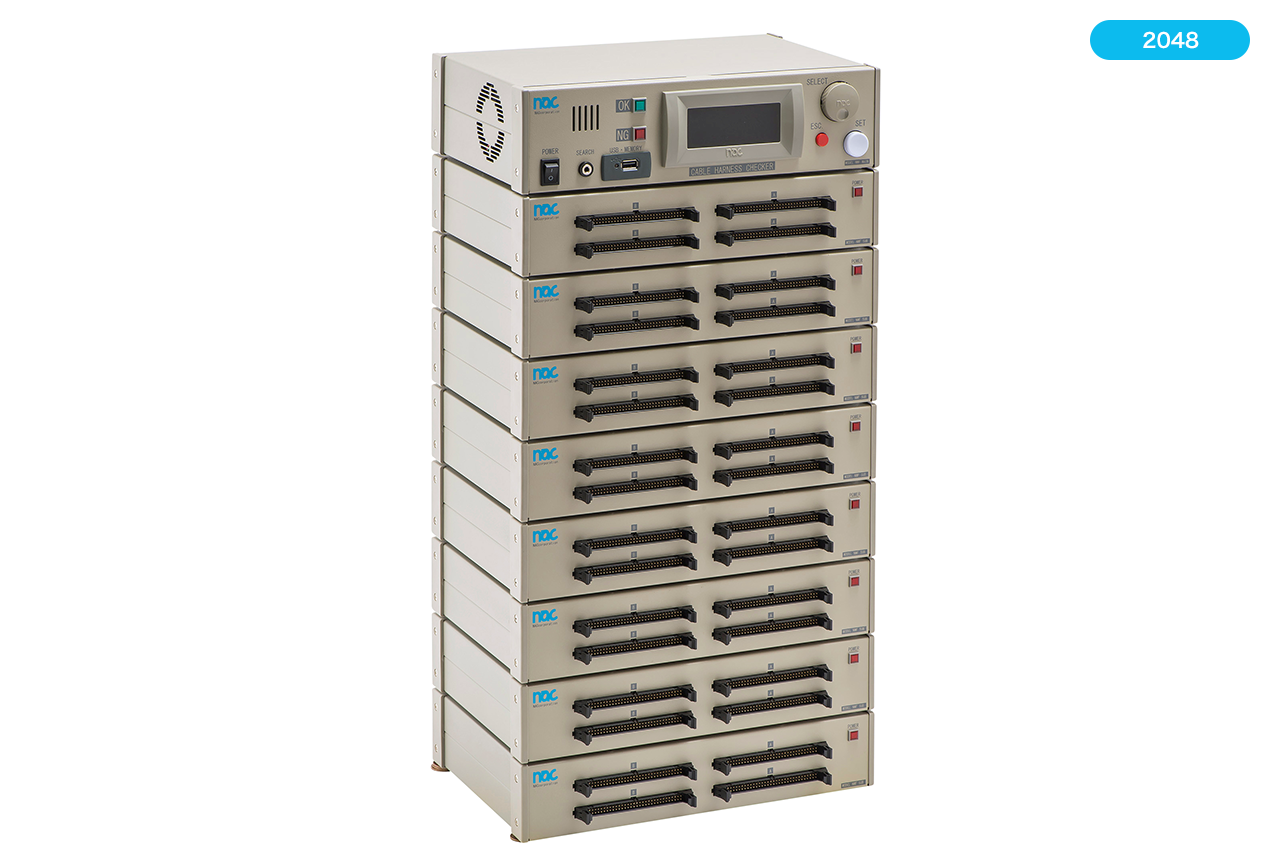

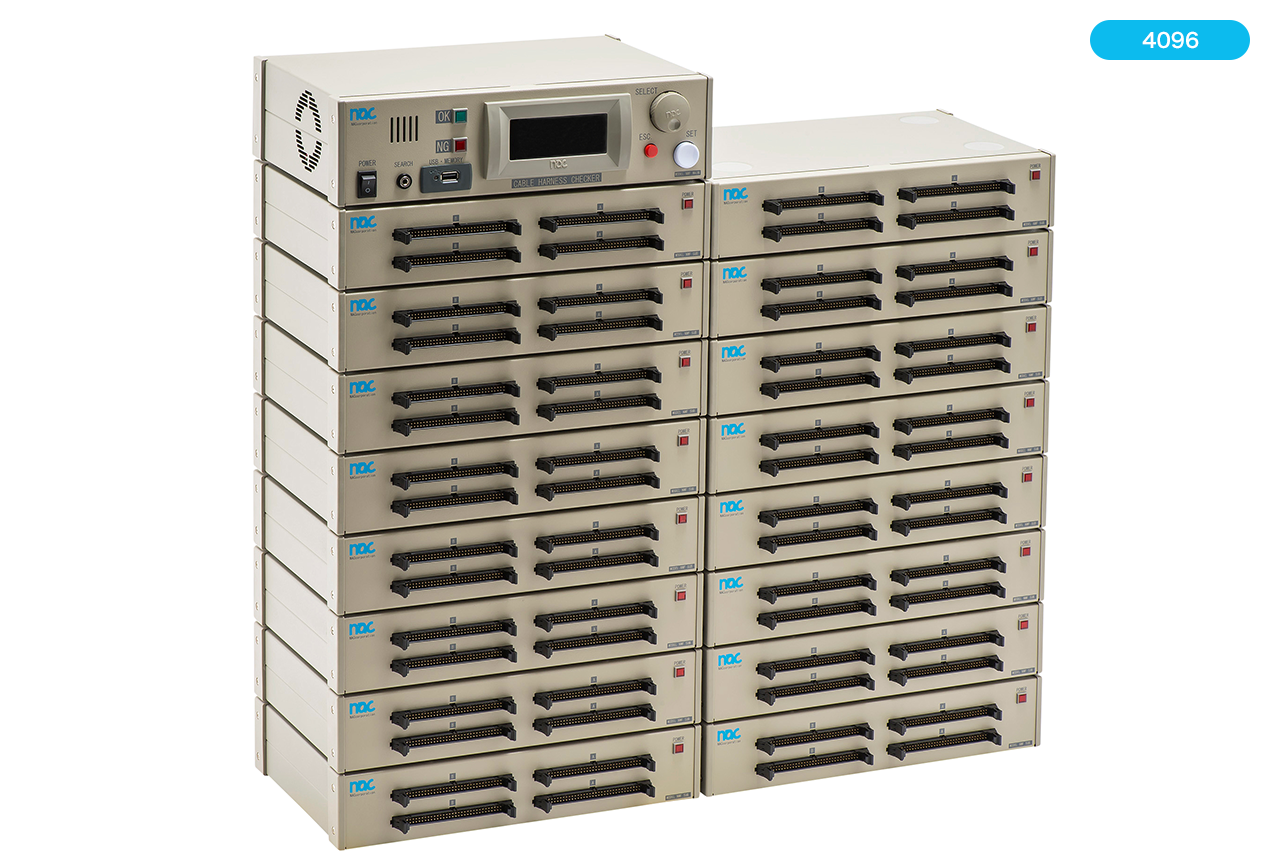

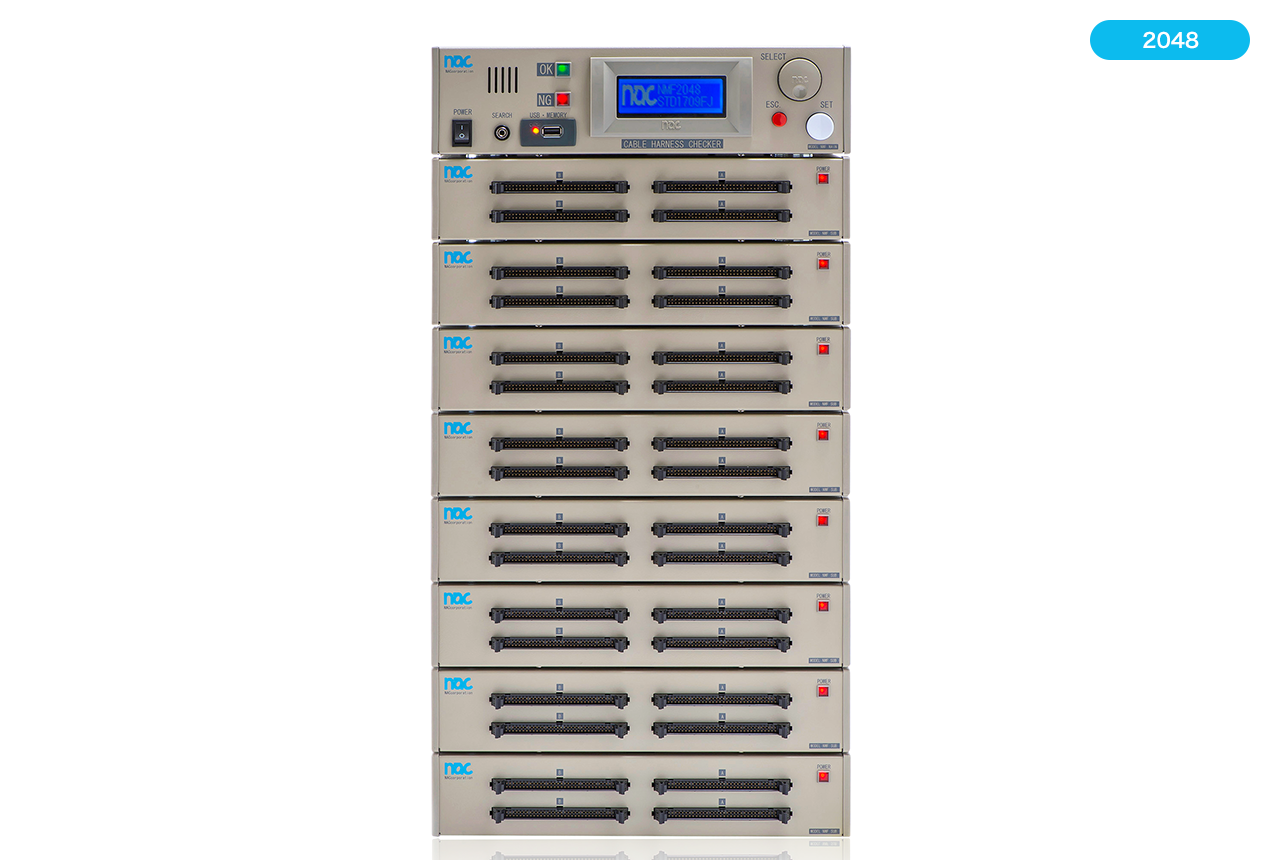

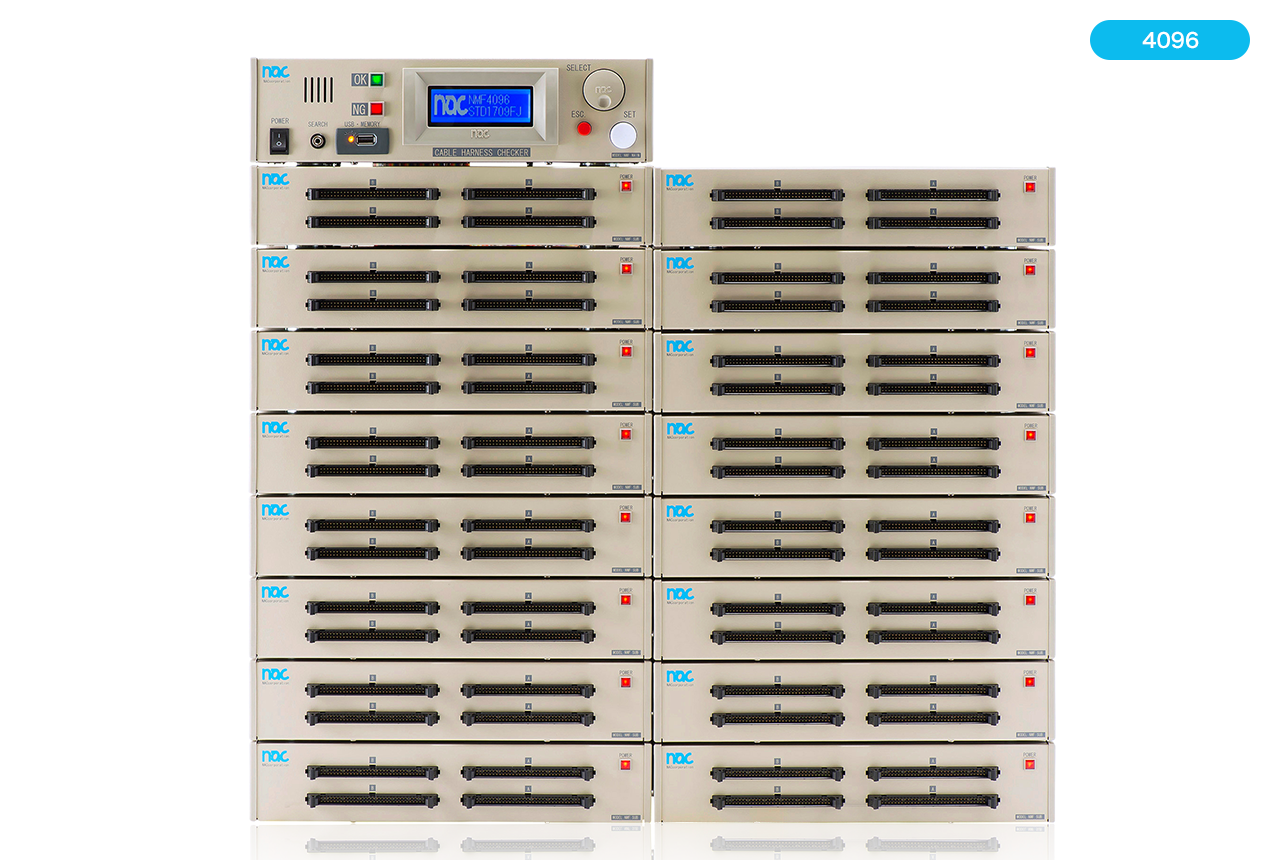

Unit combining method.

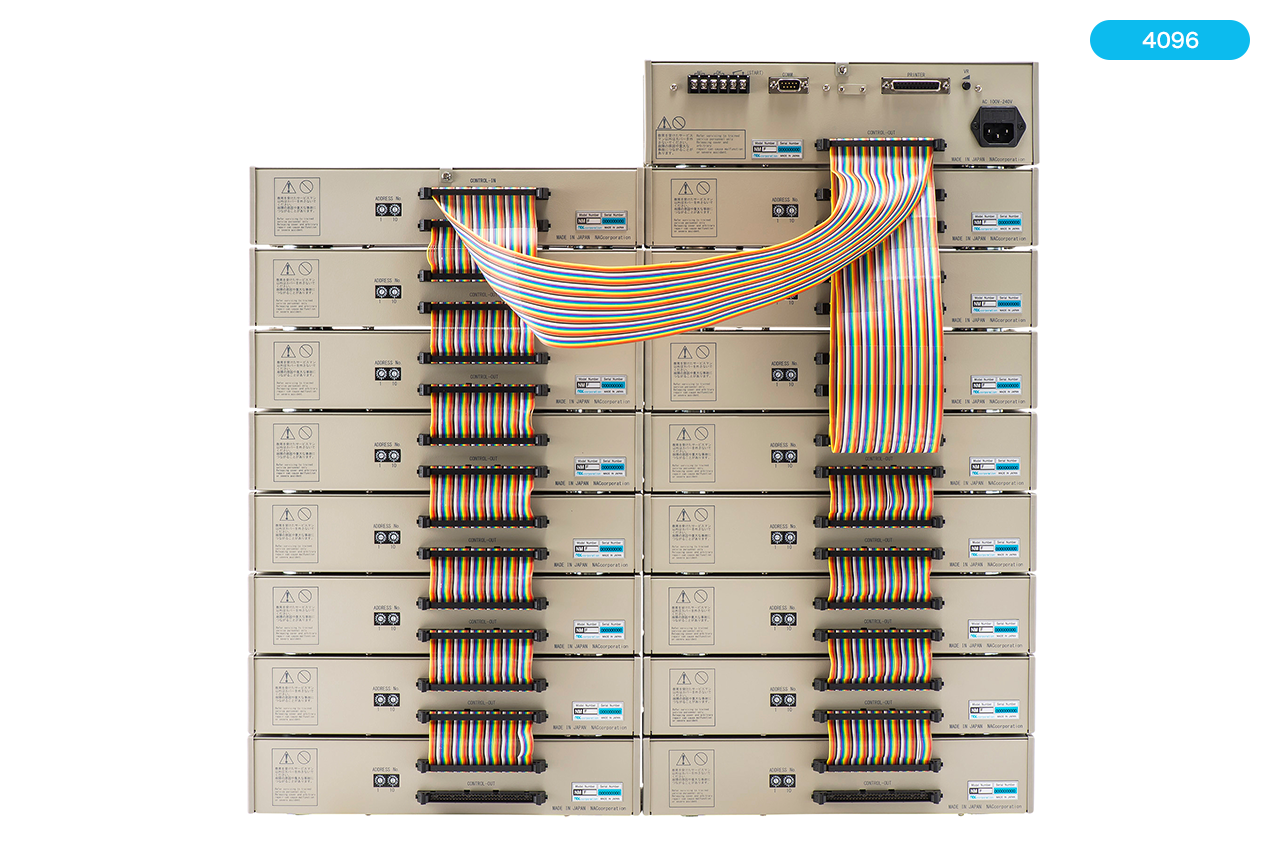

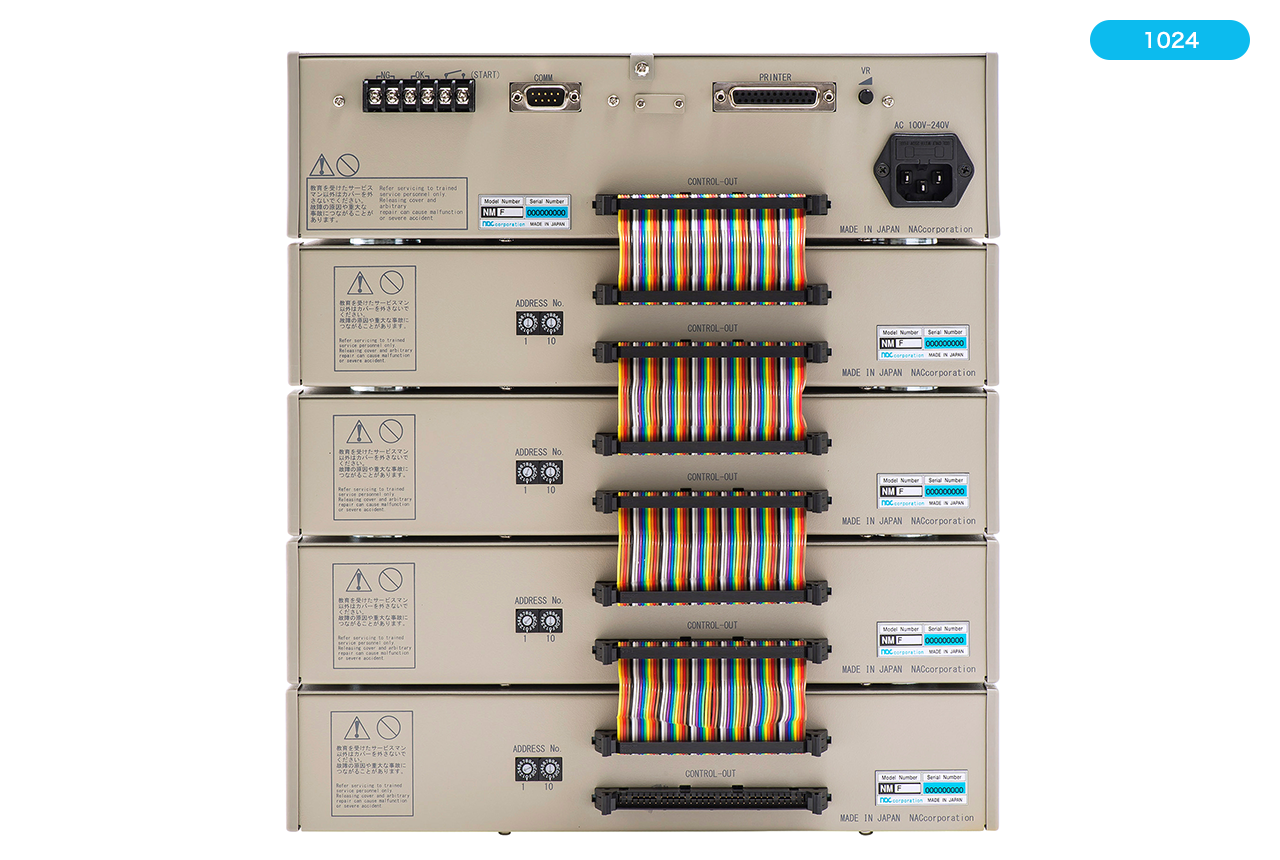

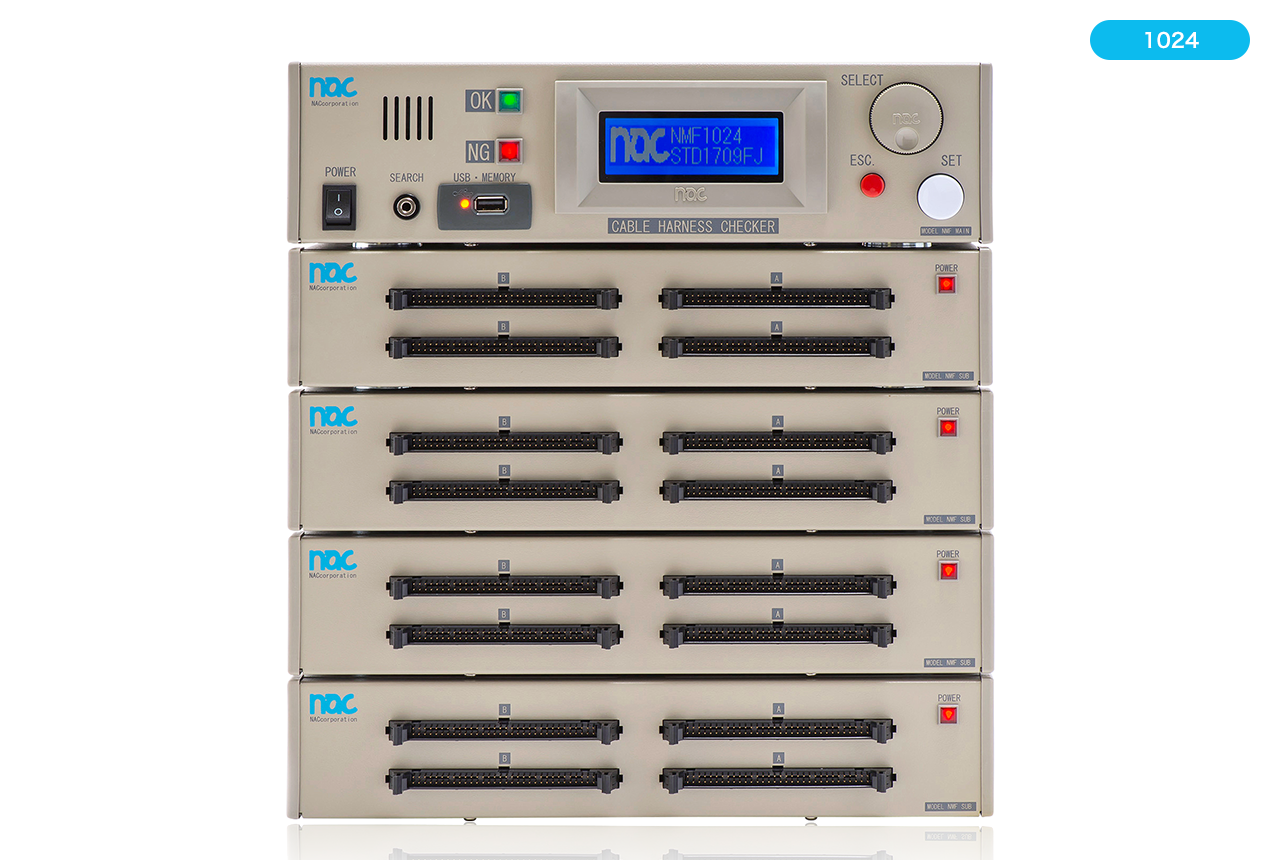

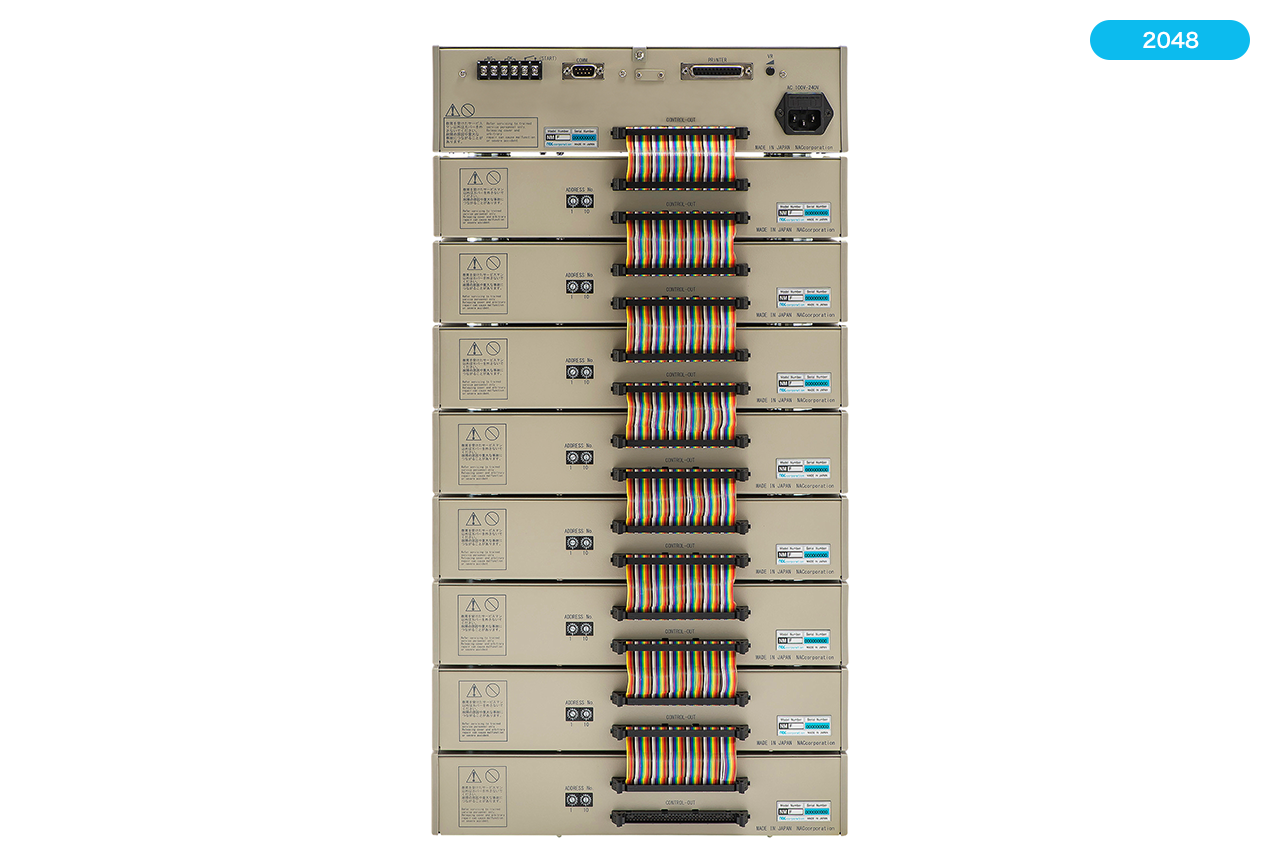

The tester NMF consists of a Main unit and a Sub unit.
You can combine Sub units to the Main unit till 8192 test points.
This useful system help your inspection environment optimize.
Easy to use,Introducing soon.
The dial and simple menu are loved by users all over the world.
Test method in high speed and efficiency
Wiring test is completed in super short time.
The more test points are the better match is with our tester.
It does not need the limit by fan-out.
Worldwide Operation
It is compatible with AC90V~ 240V.
No problem to operate in an overseas factory.
You can choose language settings from English, Japanese and Chinese.
Better management by USB drive.
USB support your inspections.Of course to control the testing data,you can record test results in it automatically.Updating firmware is enable by USB too.
High quality inspections by Printing.
NMF has a printer port.Results can be output for evidences of testing.
Testing by PC communication
PC software WireExpress can be downloaded from our website.
It has a lot of functions for better inspection such as editing testing data, naming each terminal and setting the electric resistance value for each circuit.
Ultra long running by the high-speed analog switch
We adopted the high-speed analog switch .
It is better than the usual relay and the contact life does not need to be considered.
Scanning time is very short.(on/off 14msec/9msec)
Useful functions in stand-alone
Setting resistance value for Wiring testing.
Measurement for resistance value of the test target.
In step inspection, you can do the test with more than two testing data successively.
This is the best function for harnesses attached switch.
Search testing for a loose wire. (sequential, random)
The search function is useful to check and create a jig for inspection.
When the inspection finishes, Sound and LED let you know the result.
You can check the NG wire by turning the dial.
Internal memory for 240 testing data(NMF256).
65536 data can be registered in the USB memory.
All test points are protected from the surge.
Free PC software can expand functions
Unlimited testing data storage.
Setting the test order as requested.
Naming each terminal as requested.
You can set the resistance value range for each terminal.
Saving test results and the detail as CSV automatically.
Login functions for help to separate administrators and workers.
Self-Diagnosis is useful to judge the tester normal or not.
Specification
- Wiring Testing
- 10Ω–2KΩ
- Conduction Resistance Testing
- 10Ω–2KΩ
- Dielectric Withstand Testing
- ---
- Insulation Resistance Testing
- ---
- Moment Disconnection Testing
- Repeat Test
Detail
| Product Variant | 32 |
|---|---|
| Wiring Testing | ○ |
| Conduction Resistance Testing | ○ |
| Conduction Resistance Testing (4wire) | -- |
| Dielectric Withstand Testing（AC） | -- |
| Dielectric Withstand Testing（DC） | -- |
| Insulation Resistance Testing | -- |
| Moment Disconnection Testing | ○ |
| Search Testing | ○ |
| Search Scanning | ○ |
| Test Points | 256–8192 |
| Test Circuits | 255〜8191 (1:1 Test Circuits 128〜4096) |
| Number of Memory | 240–7 (Depends on number of SUB-UNITs) |
| Number of Memory by USB | 65536 |
| Test Channels | -- |
| Number of Event | -- |
| Number of Event by USB | -- |
| Number of Event by PC | -- |
| Number of Output Event by COM port | -- |
| Number of Output Event For Printer | -- |
| Result Output | USB / Printer |
| Connectors | XG4A-6434 |
| Display Method | LCD |
| Operation Method | Dial / Switch |
| Language | English,Japanese,Chinese |
| External Printer | ○ |
| Connector for External Printer | DSUB-25S |
| Communication Port | ○ |
| Connector for Communication | DSUB-9P |
| Communication Method | RS232C |
| USB Flash Drive Communication | ○ |
| External Input | START |
| Output Terminal | OK / NG |
| Unit-to-unit Connector | XG4A-5031 |
| Data Retention Period | Over 50 years |
|---|---|
| Clock battery Life | Over 5 years |
| Power Supply | AC90V–AC240V |
| Size | "Main:W305mm×D200mm×H80mm Sub:W305mm×D200mm×H80mm" |
| Weight | "Main:3.3kg Sub:2.1kg" |
| Conditions for use | Temperature:5℃–40℃／Humidity:5%–70% |
| Software | WireExpress |
| Test Points Addition | ○ |
| Voltage for Wiring Testing | DC2.5V |
| Current for Wiring Testing | 2.5mA～25mA |
| Threshold for Wiring Testing | 10Ω～2KΩ |
| Test time for Wiring Testing | 2msec×Number of Test Points |
| Voltage for Conduction Resistance Testing | DC2.5V |
| Current for Conduction Resistance Testing | 2.5mA～25mA |
| Threshold for Conduction Resistance Testing | 10Ω～2KΩ |
| Test time for Conduction Resistance Testing | 2msec×Number of Test Circuits |
| Voltage for 4-wire low Conduction Resistance Testing | -- |
| Current for 4-wire low Conduction Resistance Testing | -- |
| Threshold for 4-wire low Conduction Resistance Testing | -- |
| Test time for 4-wire low Conduction Resistance Testing | -- |
| Voltage for Dielectric Withstand Testing（AC） | -- |
| Breaking Current for Dielectric Withstand Testing（AC） | -- |
| Test Time for Dielectric Withstand Testing（AC） | -- |
| Voltage Application for Dielectric Withstand Testing（AC） | -- |
| Voltage for Dielectric Withstand Testing（DC） | -- |
| Breaking Current for Dielectric Withstand Testing（DC） | -- |
| Test time for Dielectric Withstand Testing（DC） | -- |
| Voltage Application for Dielectric Withstand Testing（DC） | -- |
| Voltage for Insulation Resistance Testing | -- |
| Threshold for Insulation Resistance Testing | -- |
| Test Time for Insulation Resistance Testing | -- |
| Voltage Application for Insulation Resistance Testing | -- |
| Voltage for Moment Disconnection Testing | -- |
| Current for Moment Disconnection Testing | -- |
| Threshold for Moment Disconnection Testing | -- |
| Detection Time for Moment Disconnection Testing | -- |
| Test Time for Moment Disconnection Testing | -- |
Model
| Product | Test Points | Size | Price | Delivery date |
|---|---|---|---|---|
| NMF-MAIN | W305mm×D200mm×H80mm | ¥215,000 | About 2 weeks | |
| NMF-SUB | 256 | W305mm×D200mm×H60mm | ¥215,000 | About 2 weeks |
Accessories
| Testing Cable | NMCBL-64-0.8C(2sets) |
|---|---|
| Power Cable | NMCBL-PWR (2P/3P Plug Attached) |
| Search Probe | NM-SRH-PEN(1set) |
| Screwdriver for units setting | 1 Piece |
| Warranty | 1 Copy |
Documents
| Specification Sheet EN | NMF_spec_en_V1R3 |
|---|---|
| Operation Manual EN | NMF_OP_en_V1R3 |
| USB Manual EN | NMF_USB_en_V1R3 |
| Company Brochure | Company Brochure in Japanese |
| Company Brochure | Company Brochure in English |
