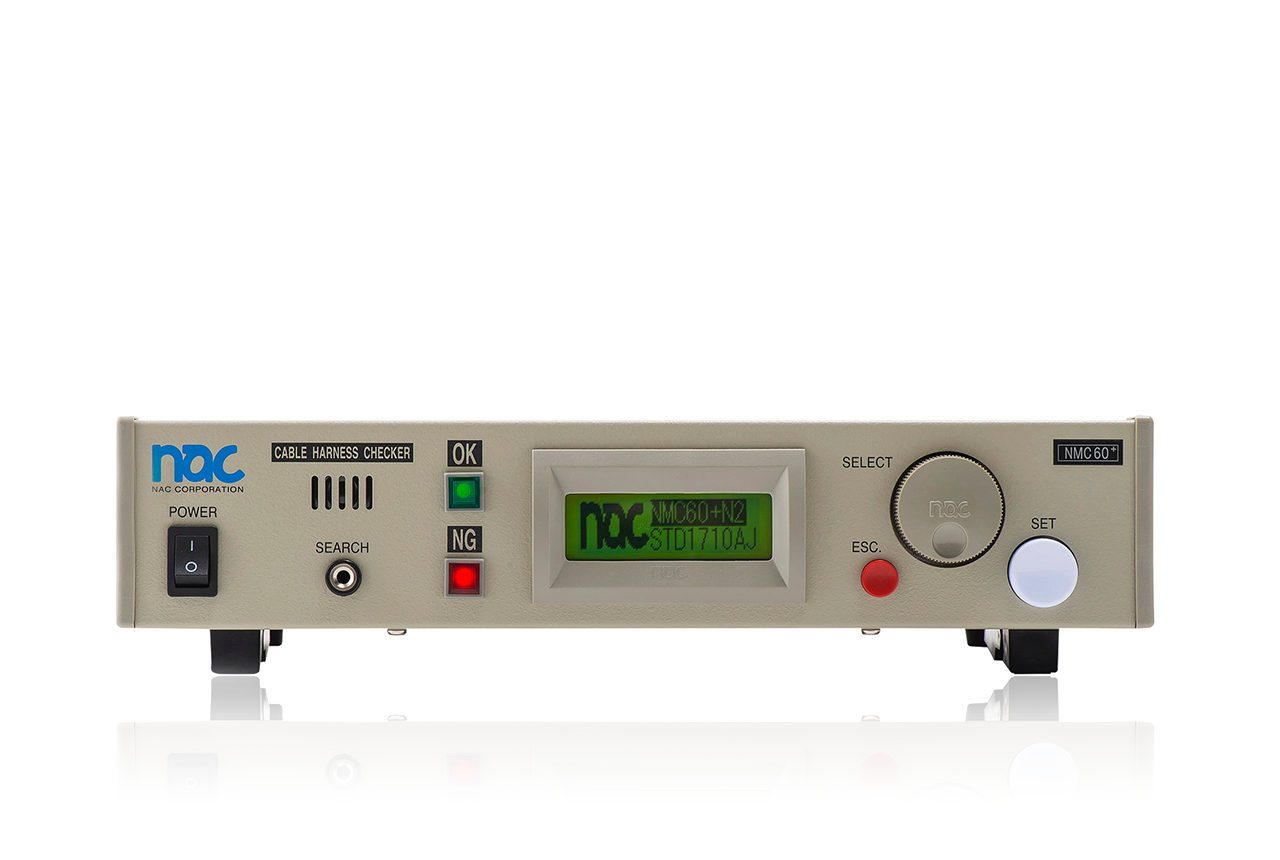

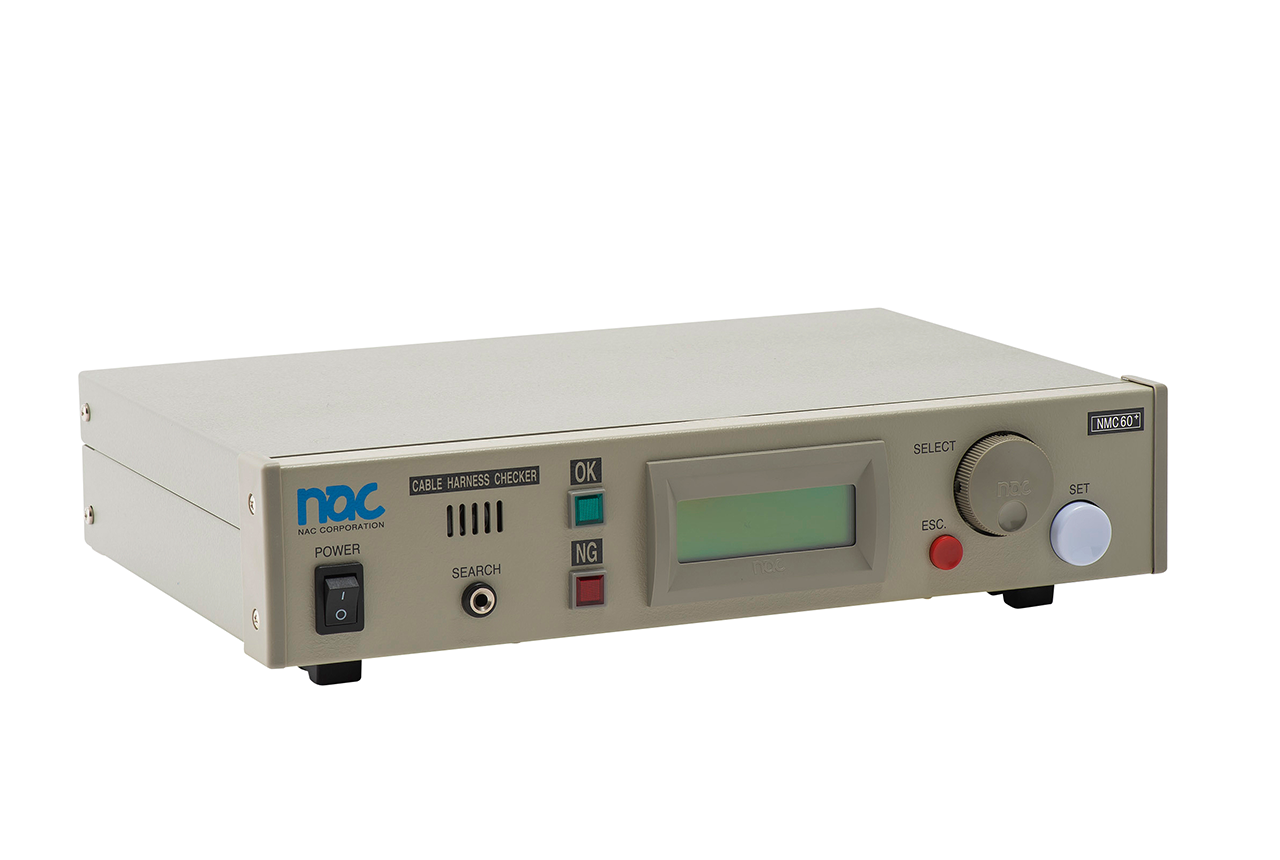

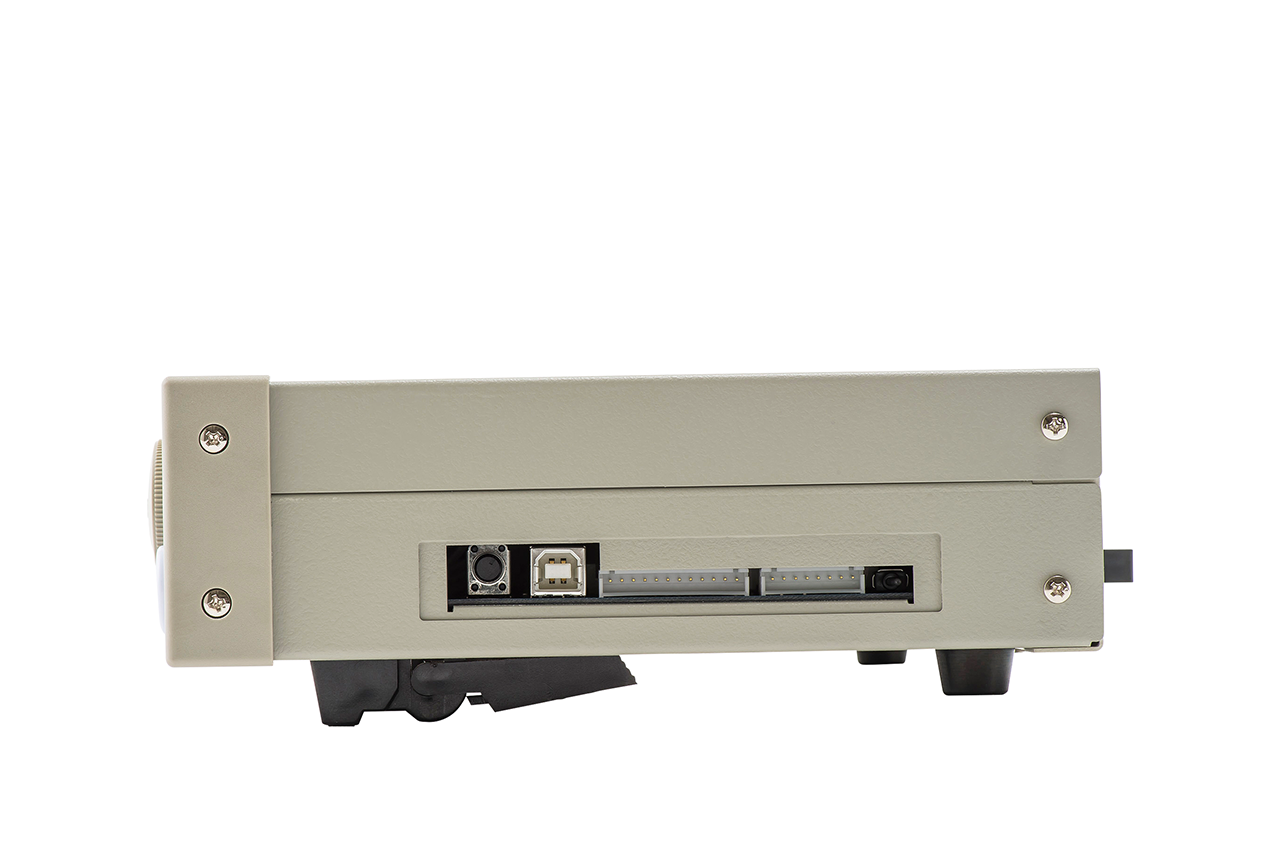

NMC60+
Easy to use, fast and stress-free.
This is the top continuity checker in Japan and overseas, and is truly representative of Nac Corporation. It is by far the best due to its ease of use, features, and high speed.
| Test Points | 60 points |
|---|
JPY 78,000
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
- Feature
- Specification
- Model
- Accessories
- Documents
- Options
- Customizing
Feature
Testing immediately after installation.
nacman NMC60+ is Harness Tester can do 2 electric tests(Wiring,Moment Disconnection) for Wire Harness with only it.
This series is widely used for testing Wire Harness, connectors, and many items.
It is best for testing cable of “small lot” and “wide variety” .

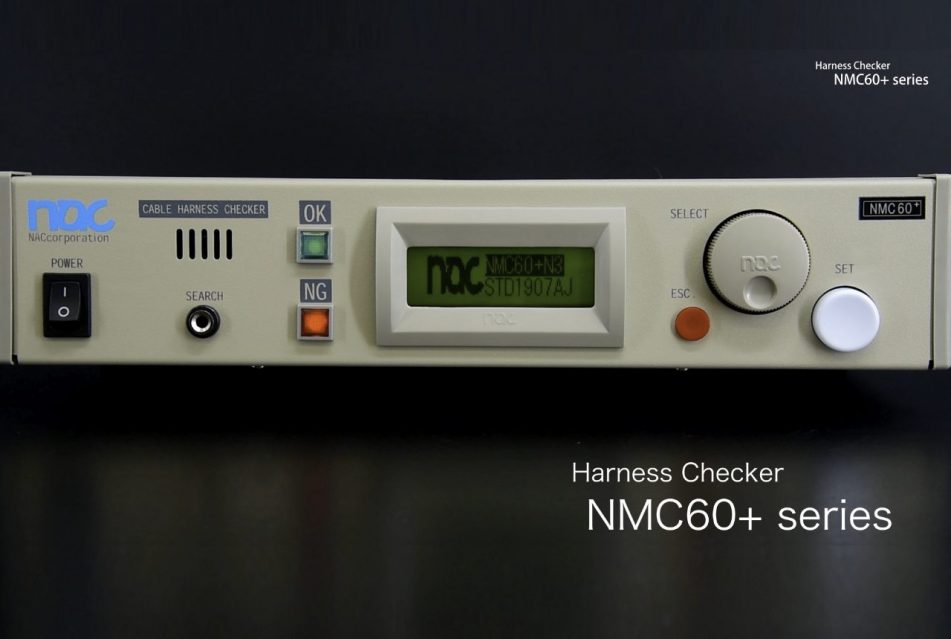

![[Video] how to operate Cable Harness Tester NMF,NMA and NMC+](https://www.naccorporation.com/en/wp-content/uploads/2020/12/Video-how-to-operate-Cable-Harness-Tester-NMA-NMF-NMC-.png)
How to Operate Cable Harness Testers in Stand-Alone
This video will show you how to operate the Cable Harness Testers in Stand-Alone.
You can check the preparation of test data by sampling, test the cables, and the settings.
This video can also be used for confirmation when considering the introduction of the Cable Harness Testers and for training the operators.
Good cost performance.
We can provide this product customers with good price by our know-how and selected parts.
Easy to use,Introducing soon.
The dial and simple menu are loved by users all over the world.
Worldwide Operation
It is compatible with AC90V~ 240V.
No problem to operate in an overseas factory.
You can choose language settings from English, Japanese and Chinese.
High quality inspections by Printing.

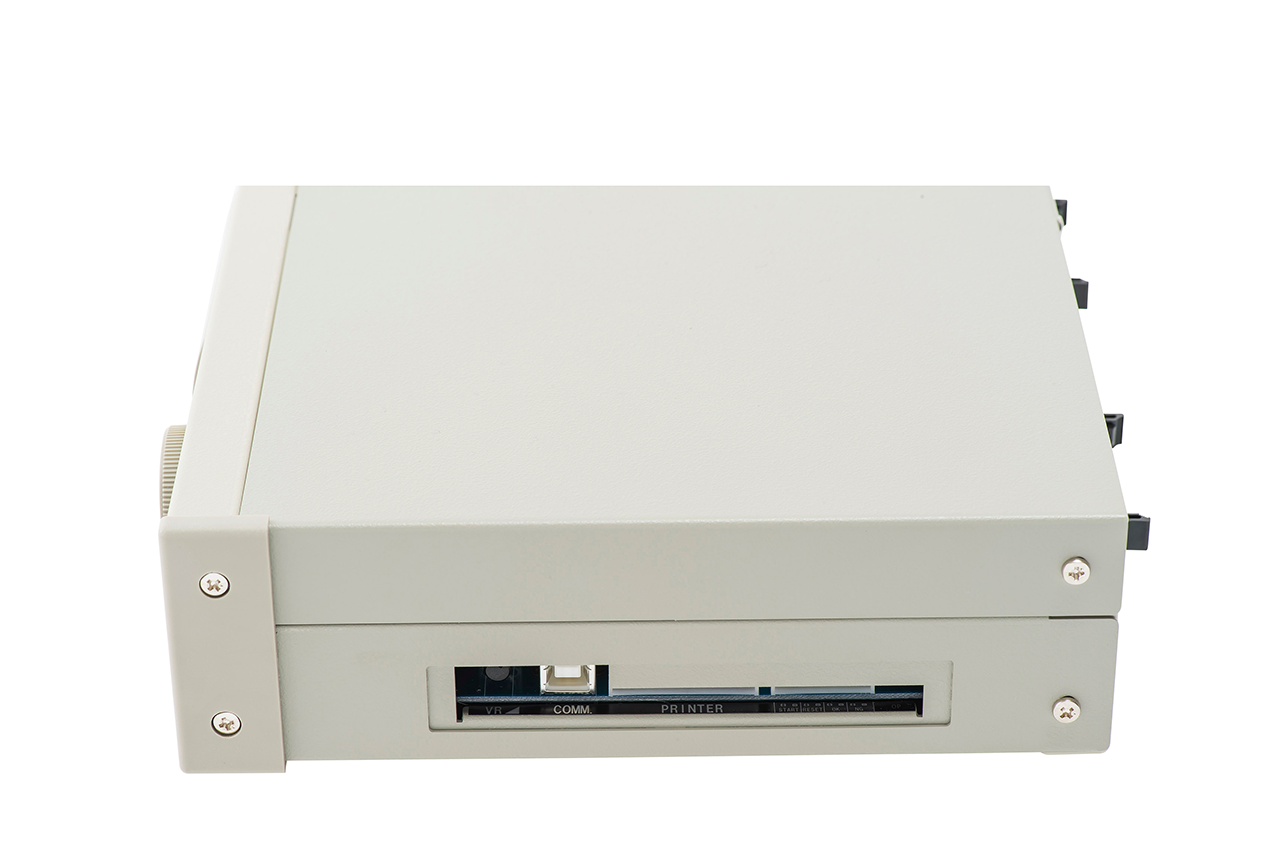

NMC60+ has a printer port.Results can be output for evidences of testing.
Test method in high speed and efficiency
Wiring test is completed in super short time.
Useful functions in stand-alone
Search function is useful to check and create jig for inspection.
When the inspection finishes, Sound and LED let you know the result.
All test points are protected from surge.
Specification
- Wiring Testing
- 18KΩ
- Conduction Resistance Testing
- ---
- Dielectric Withstand Testing
- ---
- Insulation Resistance Testing
- ---
- Moment Disconnection Testing
- 70ms.Max
Detail
| Product Variant | -- |
|---|---|
| Wiring Testing | ○ |
| Conduction Resistance Testing | -- |
| Conduction Resistance Testing (4wire) | -- |
| Dielectric Withstand Testing（AC） | -- |
| Dielectric Withstand Testing（DC） | -- |
| Insulation Resistance Testing | -- |
| Moment Disconnection Testing | ○ |
| Search Testing | -- |
| Search Scanning | ○ |
| Test Points | 60 |
| Test Circuits | 59 (1:1 Test Circuits 30) |
| Number of Memory | 24 |
| Number of Memory by USB | -- |
| Test Channels | -- |
| Number of Event | -- |
| Number of Event by USB | -- |
| Number of Event by PC | -- |
| Number of Output Event by COM port | -- |
| Number of Output Event For Printer | -- |
| Result Output | Printer |

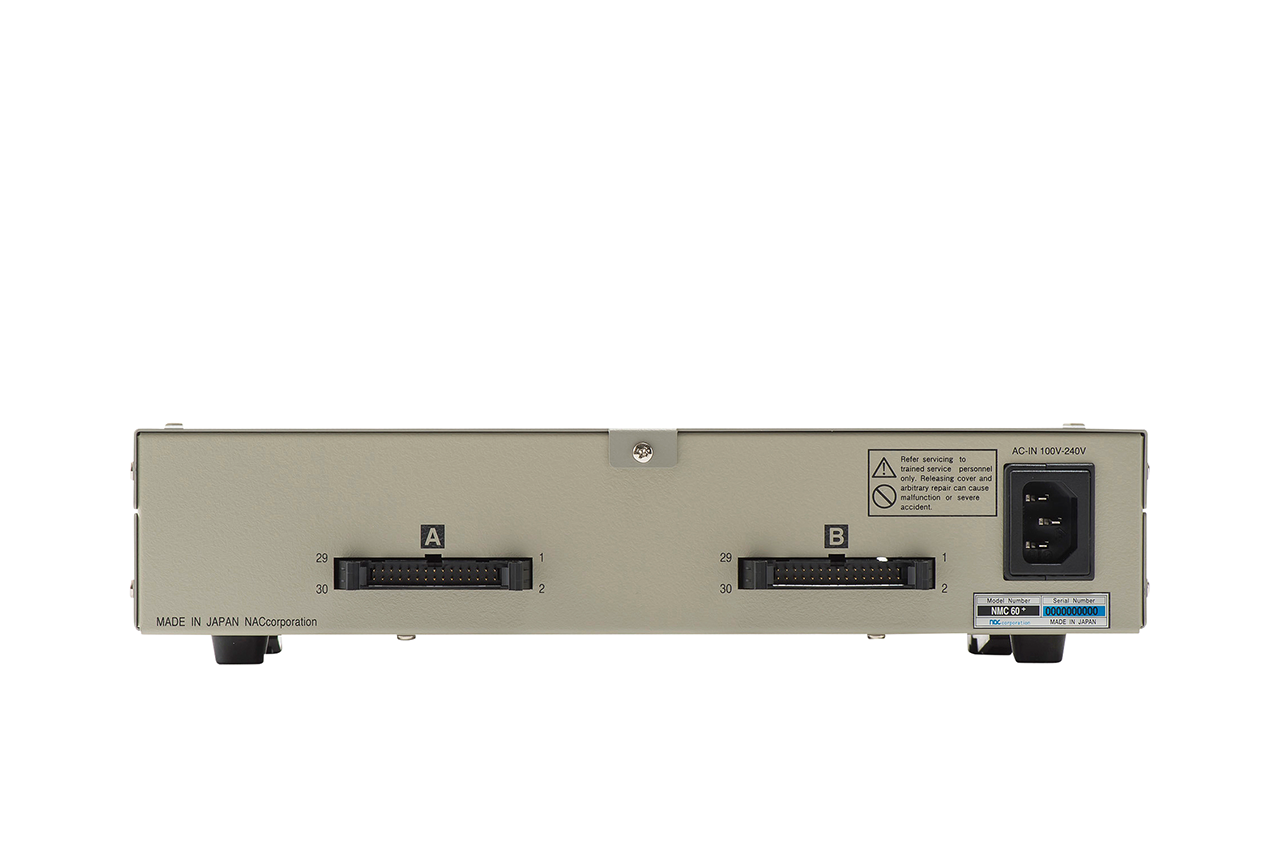

| Connectors | XG4A-3034 |
| Display Method | LCD |
| Operation Method | Dial／Switch |
| Language | English,Japanese,Chinese |
| External Printer | -- |
| Connector for External Printer | S10B-XH-A |
| Communication Port | -- |
| Connector for Communication | -- |
| Communication Method | -- |
| USB Flash Drive Communication | -- |
| External Input START | START |
| Output Terminal OK/NG | OK/NG |
| Unit-to-unit Connector | -- |
| Data Retention Period | Over 50 years |
|---|---|
| Clock battery Life | -- |
| Power Supply | AC90V～AC240V |
| Size | W300mm×D200mm×H60mm |
| Weight | 2.2kg |
| Conditions for use | Temperature：5℃～40℃／Humidity：5%～70% |
| Software | -- |
| Test Points Addition | -- |
| Voltage for Wiring Testing | DC3.3V |
| Current for Wiring Testing | 0.06mAmax |
| Threshold for Wiring Testing | 18KΩ |
| Test time for Wiring Testing | Less Than 1sec |
| Voltage for Conduction Resistance Testing | -- |
| Current for Conduction Resistance Testing | -- |
| Threshold for Conduction Resistance Testing | -- |
| Test time for Conduction Resistance Testing | -- |
| Voltage for 4-wire low Conduction Resistance Testing | -- |
| Current for 4-wire low Conduction Resistance Testing | -- |
| Threshold for 4-wire low Conduction Resistance Testing | -- |
| Test time for 4-wire low Conduction Resistance Testing | -- |
| Voltage for Dielectric Withstand Testing（AC） | -- |
| Breaking Current for Dielectric Withstand Testing（AC） | -- |
| Test Time for Dielectric Withstand Testing（AC） | -- |
| Voltage Application for Dielectric Withstand Testing（AC） | -- |
| Voltage for Dielectric Withstand Testing（DC） | -- |
| Breaking Current for Dielectric Withstand Testing（DC） | -- |
| Test time for Dielectric Withstand Testing（DC） | -- |
| Voltage Application for Dielectric Withstand Testing（DC） | -- |
| Voltage for Insulation Resistance Testing | -- |
| Threshold for Insulation Resistance Testing | -- |
| Test Time for Insulation Resistance Testing | -- |
| Voltage Application for Insulation Resistance Testing | -- |
| Voltage for Moment Disconnection Testing | DC3.3V |
| Current for Moment Disconnection Testing | 0.06mAmax |
| Threshold for Moment Disconnection Testing | 18KΩ |
| Detection Time for Moment Disconnection Testing | More Than 70msec |
| Test Time for Moment Disconnection Testing | 2～999sec(Or Stop by Button) |
| Moment Disconnection Testing Method | Scanning |
Model
| Product | Test Points | Size | Price | Delivery date |
|---|---|---|---|---|
| NMC60+ | 60 | W300mm×D200mm×H60mm | ¥78,000 | About 2 weeks |
Accessories
| Testing Cable | NMCBL-30-0.8C(2 sets) |
|---|---|
| Power Cable | NMCBL-PWR (2P/3P Plug Attached) |
| Search Probe | NM-SRH-PEN |
| Quick Reference Manual/Warranty | 1 Copy |
Documents
| Specification Sheet EN | NMC+_spec_en_V1R1 |
|---|---|
| Operation Manual EN | NMC+_OP_en_V1R1 |
| Company Brochure | Company Brochure in Japanese |
| Company Brochure | Company Brochure in English |
Electrical inspection is invisible. Visualize inspection results with marks.
- JPY 22,800
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee - Detail
Thermal paper printer for cable harness testing
- JPY 56,000
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee - Detail
NM-ADP03｜Screwless terminal board for cable harness testing
- JPY 8,800
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee - Detail
NM-LED01｜Lamp for Cable Harness Testing
- JPY 10,000Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
- Detail
MIL30pin Flat cable with both terminal connectors
- JPY 3,500
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee - Detail
Search probe for wiring test
- JPY 500
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee - Detail
Customization for function extension（PC connection, Search testing, Internal memory expansion）
The following functions can be used for nacman NMC60 + by customizing.・Operation by PC software WireExpress・Search testing in stand-alone・800 testing data can be saves in the internal memory of the testerThe function expansion price is 22,000 yen. Please request according to your situation.
