NM1500K series
Cutting-edge hi-pot cable harness tester for the aerospace industry.
We support high-specification testing harnesses for space, aviation and defense industries. Equipped with an AC/DC pressure test function and high-demand 4-wire low-resistance test function, this model can be further customized.
| Test Points | 64～512 (variable per 64 points) |
|---|
JPY 1,398,000(64points) – JPY 3,698,000(512points)
Shipping: 4-6weeks After Order ＊Not Including Transportation Cost and Fee
- Feature
- Specification
- Model
- Accessories
- Documents
- Options
- Customizing
Feature
Cutting-edge harnesses for aerospace industry.
nacman NM1500K is Harness Multi Tester can do high spec tests for Wire Harness.
This series is operated for Wire Harness and connectors in Aerospace, Automobile(Racing car), Construction machinery, Train.
It takes over trust and maintainability of the previous model,and has a high reputation as an Excellent Model.
![[Video] how to operate software for Hipot Cable Harness Tester](https://www.naccorporation.com/en/wp-content/uploads/2020/12/Video-how-to-operate-Hipot-Cable-Harness-Tester-Software.png)
PC Software Operation for Hi-Pot Cable Harness Testers
WireExpress Hi-Pot is the free PC software to operate the Hi-Pot Cable Harness Testers.
This video will show you how to operate the software.
High voltage testing and 4-wire low resistance testing (Kelvin connection) are available depending on the tester.
It also allows for the manual editing of test data and the efficient management of the test report
Test method in high speed and efficiency
Wiring test is completed in super short time.
Moreover, it can test low-conduction resistance testing by 4-wire,AC/DC dielectric withstand testing,and insulation resistance testing.
We can provide higher-spec tester to customize this model for the user’s request.
Worldwide Operation
It is compatible with AC90V~ 240V.
No problem to operate in an overseas factory.
You can choose language settings from English ,Japanese and Chinese.
High quality inspections by Printing.
It has a printer port.Results can be output for evidences of testing.
Testing by PC communication
PC software WireExpress Hi-Pot can be downloaded from our website.
It has a lot of functions for better inspection such as editing testing data,naming each terminal and setting the high voltage application and the electric resistance value for each circuit.
Ultra long running by photo-MOS relay
We adopted photo-MOS relay for High-voltage scanner.
Mechanical relay is easily broken because of the contact life.
But Photo-MOS relay is not.
We have more than 30 years of history of using Photo-MOS relay in harness testers.
Maintenance-free that is one of nacman features and trust for us is based on it.
Trust and security by technology
High speed voltage control to react load fluctuation only one cycle of AC.
Current measurement detects only 78μsec discharging.
Our know-how and experience enable high reproducibility and less electrical stress for test targets.
Free PC software can expand functions
Unlimited testing data storage.
Setting the test order as requested.
Naming each terminal as requested.
You can design the High voltage application for each terminal.
You can set the resistance value range for each terminal.
Saving test results and the detail as CSV automatically.
Login functions for help to separate administrators and workers.
Self-Diagnosis is useful to judge the tester normal or not.
In step inspection, you can do the test with more than two testing data successively.
Search testing for loose wire.(sequential,random)
Search function is useful to check and create jig for inspection.
Specification
- Wiring Testing
- 200Ω～20KΩ
- Conduction Resistance Testing
- 0.01Ω～2KΩ（4-wire）
- Dielectric Withstand Testing
- AC100Vrms～AC1000Vrms／DC100V～DC1000V
- Insulation Resistance Testing
- DC100V～DC1000V／10MΩ～2000MΩ
- Moment Disconnection Testing
- ---
Detail
| Product Variant | 8 |
|---|---|
| Wiring Testing | ○ |
| Conduction Resistance Testing | ○ |
| Conduction Resistance Testing (4wire) | ○ |
| Dielectric Withstand Testing（AC） | ○ |
| Dielectric Withstand Testing（DC） | ○ |
| Insulation Resistance Testing | ○ |
| Moment Disconnection Testing | ○ |
| Search Testing | ○ |
| Search Scanning | ○ |
| Test Points | 64～512 |
| Test Circuits | 63〜511 (1:1 Test Circuits 32〜256) |
| Number of Memory | -- |
| Number of Memory by USB | -- |
| Test Channels | -- |
| Number of Event | -- |
| Number of Event by USB | -- |
| Number of Event by PC | -- |
| Number of Output Event by COM port | -- |
| Number of Output Event For Printer | -- |
| Result Output | -- |
| Connectors | XG4A-6434（32pin） |
| Display Method | -- |
| Operation Method | -- |
| Language | -- |
| External Printer | ○ |
| Connector for External Printer | DSUB-25S |
| Communication Port | ○ |
| Connector for Communication | DSUB-9P |
| Communication Method | RS232C |
| USB Flash Drive Communication | -- |
| External Input | START |
| Output Terminal | OK/NG |
| Unit-to-unit Connector | -- |
| Data Retention Period | -- |
|---|---|
| Clock battery Life | -- |
| Clock battery Life O | AC90V～AC240V |
| Size | W410mm×D265mm×H170mm～470mm |
| Weight | 8kg～17kg |
| Conditions for use | Temperature:5℃～35℃／Humidity:5%～50% |
| Software | WireExpress Hi-Pot |
| Test Points Addition | ○ |
| Voltage for Wiring Testing | DC5V |
| Current for Wiring Testing | 5mAmax |
| Threshold for Wiring Testing | 200Ω～20KΩ |
| Test time for Wiring Testing | 4msec×Number of Test Points |
| Voltage for Conduction Resistance Testing | DC2.5V |
| Current for Conduction Resistance Testing | 0.5mA～10mA |
| Threshold for Conduction Resistance Testing | 1Ω～2KΩ |
| Test time for Conduction Resistance Testing | 256msec×Number of Test Circuits |
| Voltage for 4-wire low Conduction Resistance Testing | DC2.5V |
| Current for 4-wire low Conduction Resistance Testing | 0.5mA～10mA |
| Threshold for 4-wire low Conduction Resistance Testing | 0.01Ω～2KΩ |
| Test time for 4-wire low Conduction Resistance Testing | 256msec×Number of Test Circuits |
| Voltage for Dielectric Withstand Testing（AC） | AC50V～AC1000V |
| Breaking Current for Dielectric Withstand Testing（AC） | 0.5mA～5mA |
| Test Time for Dielectric Withstand Testing（AC） | 0.1～99.9sec |
| Voltage Application for Dielectric Withstand Testing（AC） | Log2/Matrix/Flat/Scan/Search |
| Voltage for Dielectric Withstand Testing（DC） | DC50V～DC1500V |
| Breaking Current for Dielectric Withstand Testing（DC） | 0.5mA～2mA |
| Test time for Dielectric Withstand Testing（DC） | 0.1～99.9sec |
| Voltage Application for Dielectric Withstand Testing（DC） | Log2/Matrix/Flat/Scan/Search |
| Voltage for Insulation Resistance Testing | DC50V～DC1000V |
| Threshold for Insulation Resistance Testing | 10MΩ～2000MΩ |
| Test Time for Insulation Resistance Testing | 0.1～99.9sec |
| Voltage Application for Insulation Resistance Testing | Log2/Matrix/Flat/Scan/Search |
| Voltage for Moment Disconnection Testing | DC5V |
| Current for Moment Disconnection Testing | 5mAmax |
| Threshold for Moment Disconnection Testing | 200Ω～20KΩ |
| Detection Time for Moment Disconnection Testing | 4msec×Number of Test Circuits |
| Test Time for Moment Disconnection Testing | 2～999sec(Or Stop by Button) |
| Moment Disconnection Testing Method | Time Sharing Method |
Model
| Product | Test Points | Size | Price | Delivery date |
|---|---|---|---|---|
| NM1500K-S2 | 64 | W410mm×D265mm×H170mm | ¥1,398,000 | About 6 weeks |

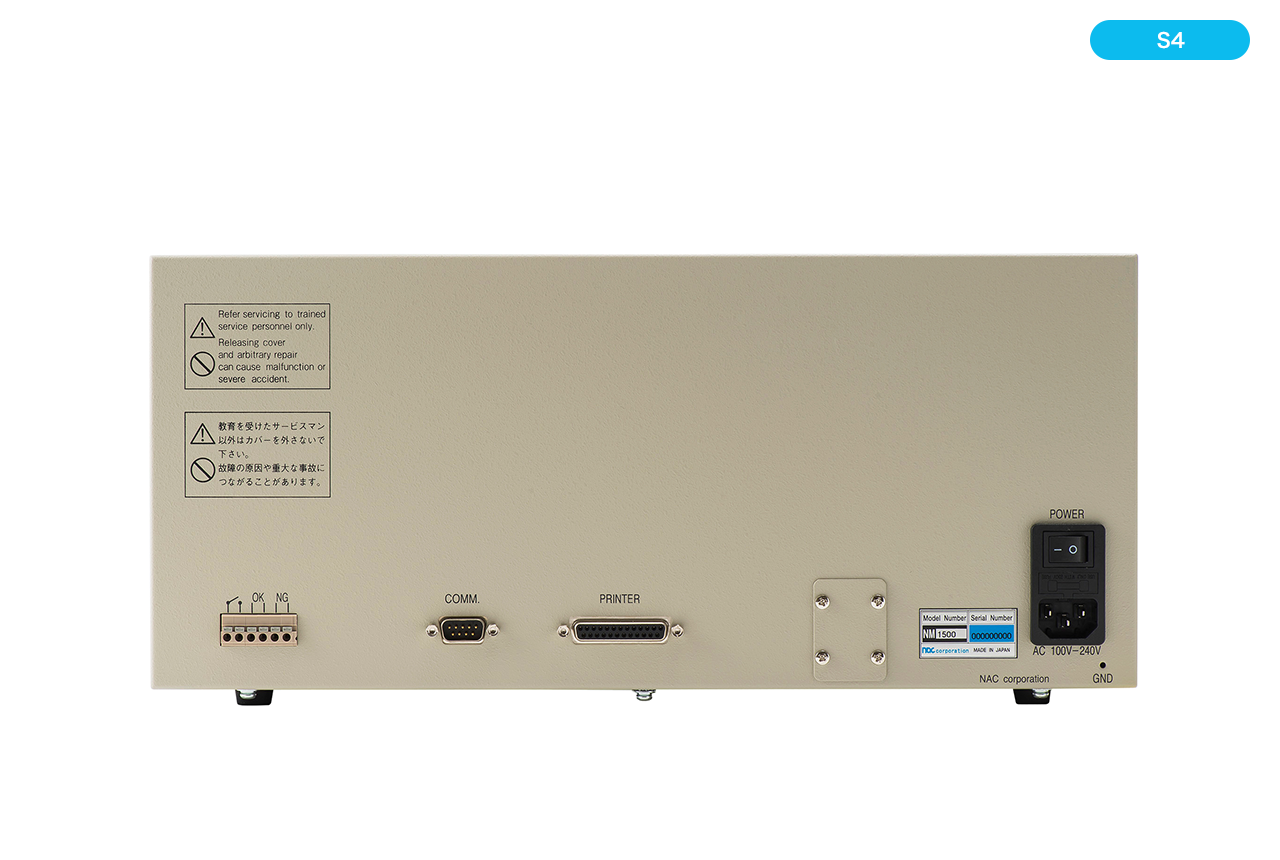

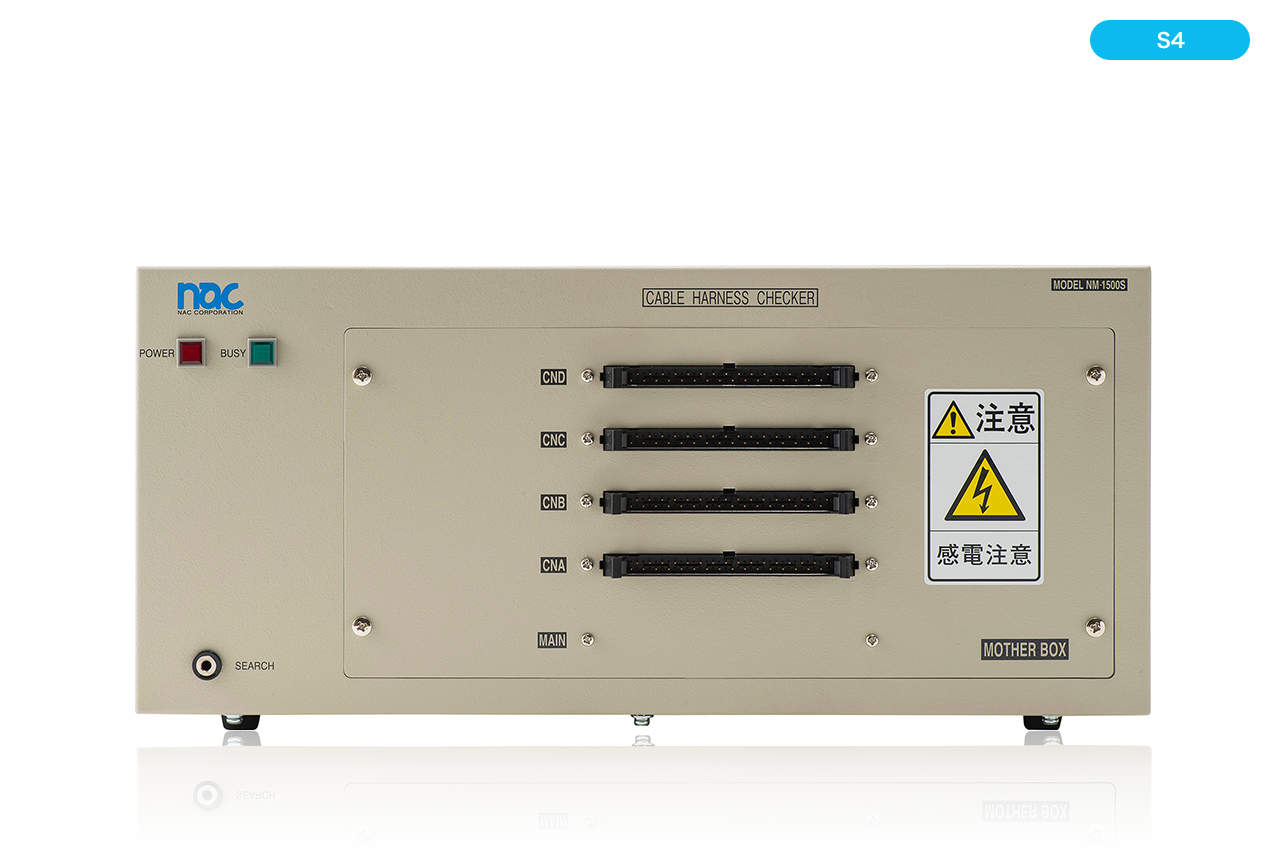

| NM1500K-S4 | 128 | W410mm×D265mm×H170mm | ¥1,698,000 | About 6 weeks |
| NM1500K-L6 | 192 | W410mm×D265mm×H270mm | ¥2,098,000 | About 6 weeks |

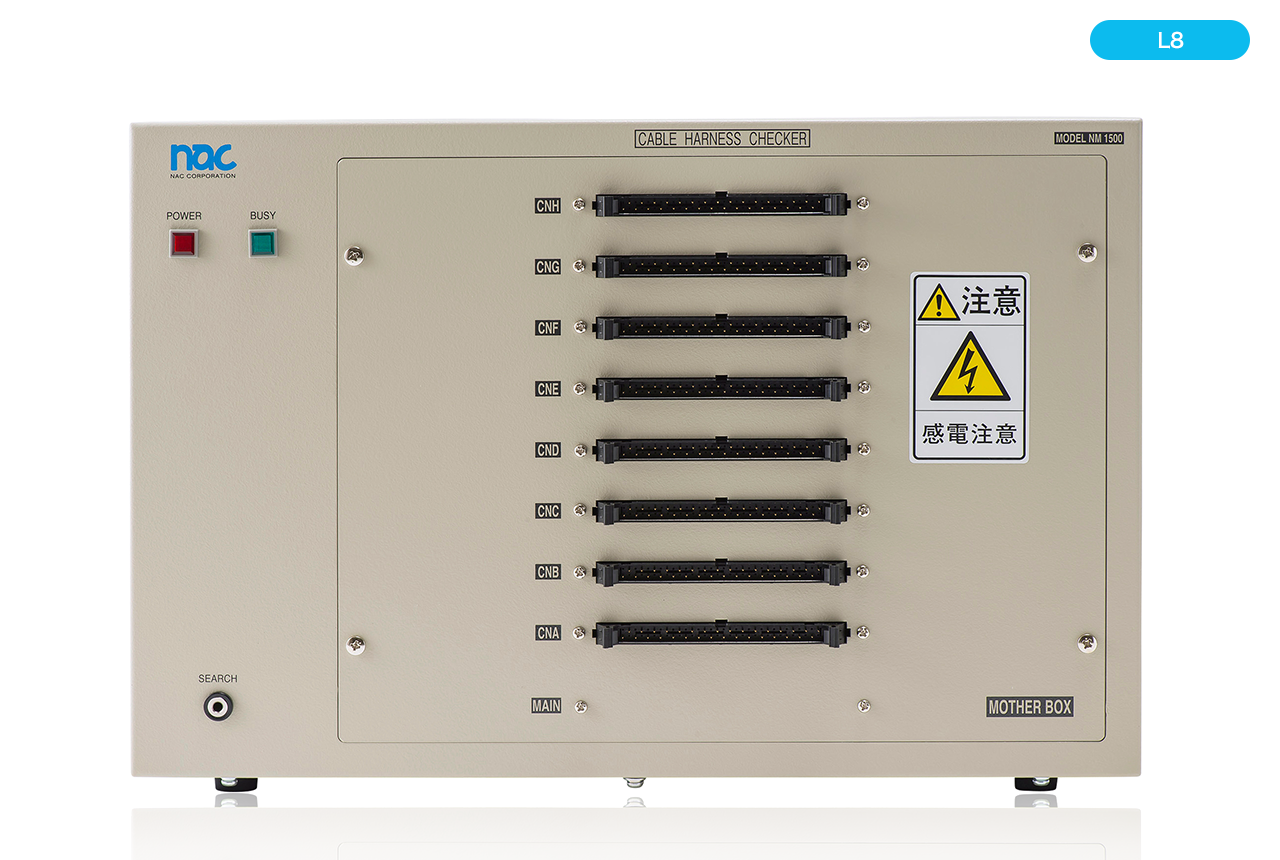

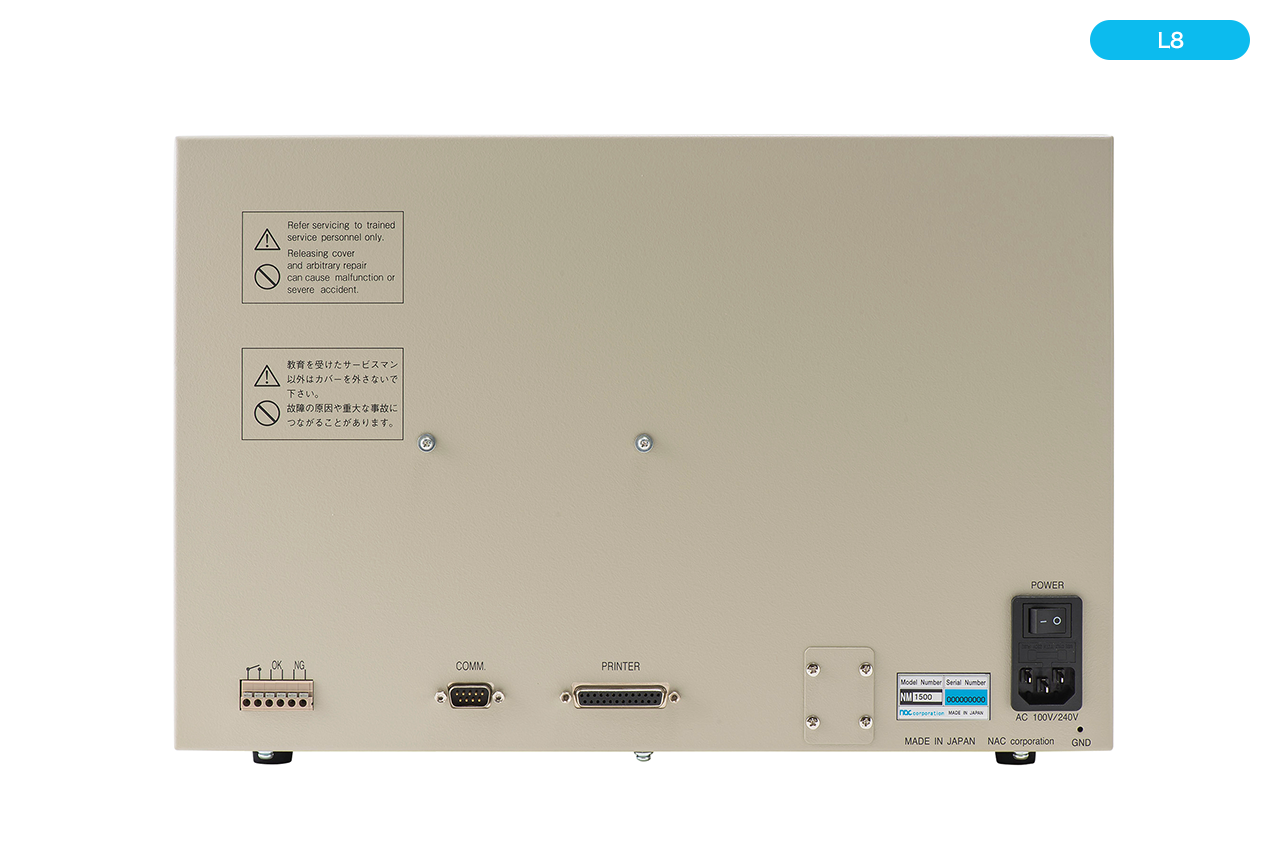

| NM1500K-L8 | 256 | W410mm×D265mm×H270mm | ¥2,398,000 | About 6 weeks |
| NM1500K-V10 | 320 | W410mm×D265mm×H470mm | ¥2,798,000 | About 6 weeks |
| NM1500K-V12 | 384 | W410mm×D265mm×H470mm | ¥3,098,000 | About 6 weeks |

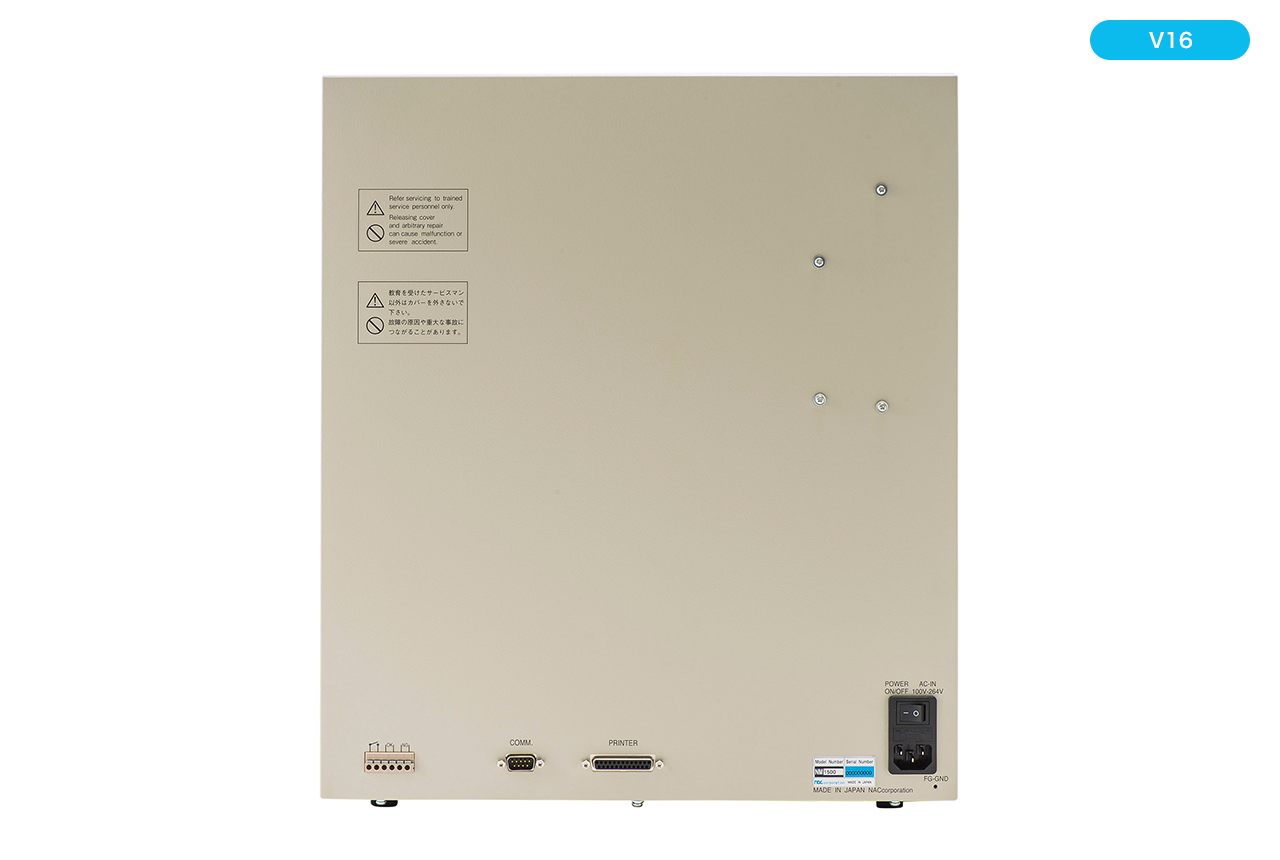

| NM1500K-V14 | 448 | W410mm×D265mm×H470mm | ¥3,398,000 | About 6 weeks |

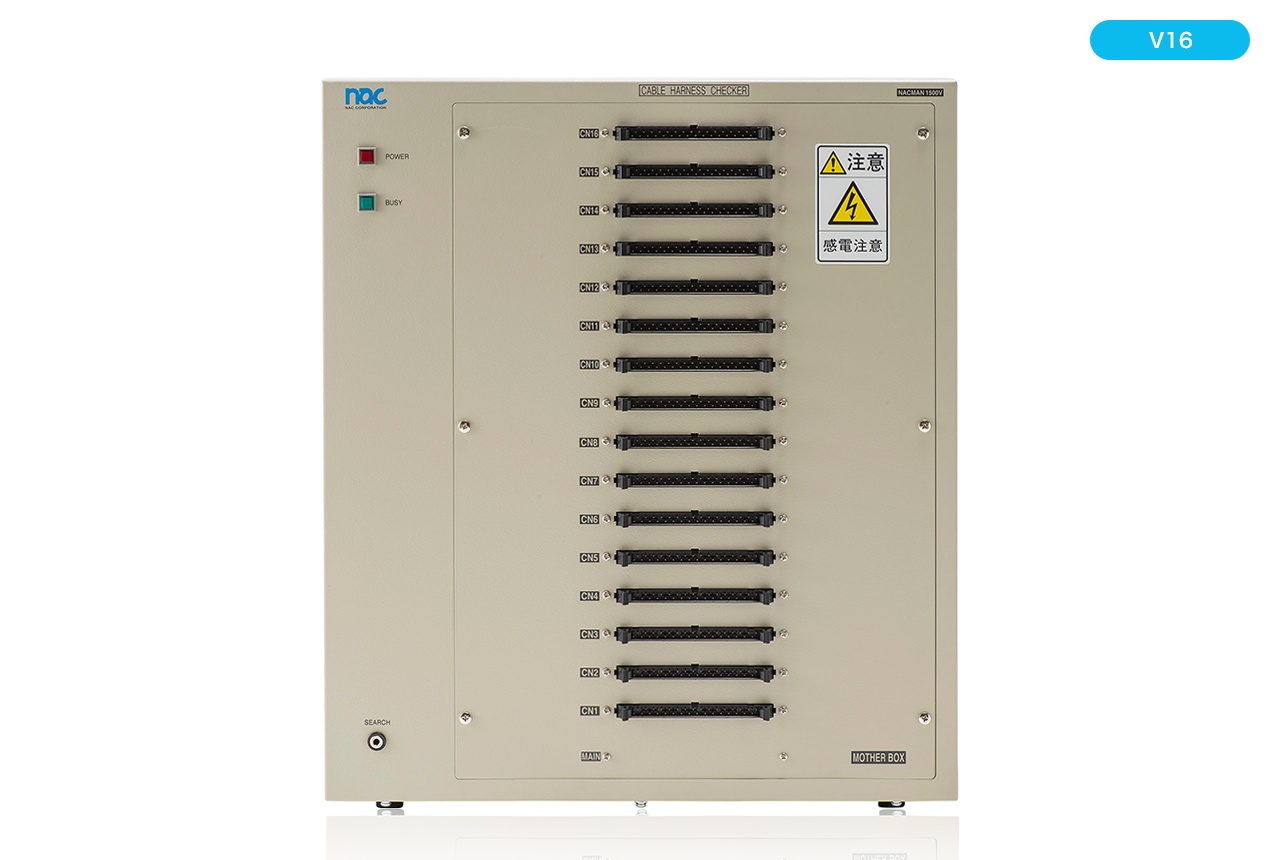

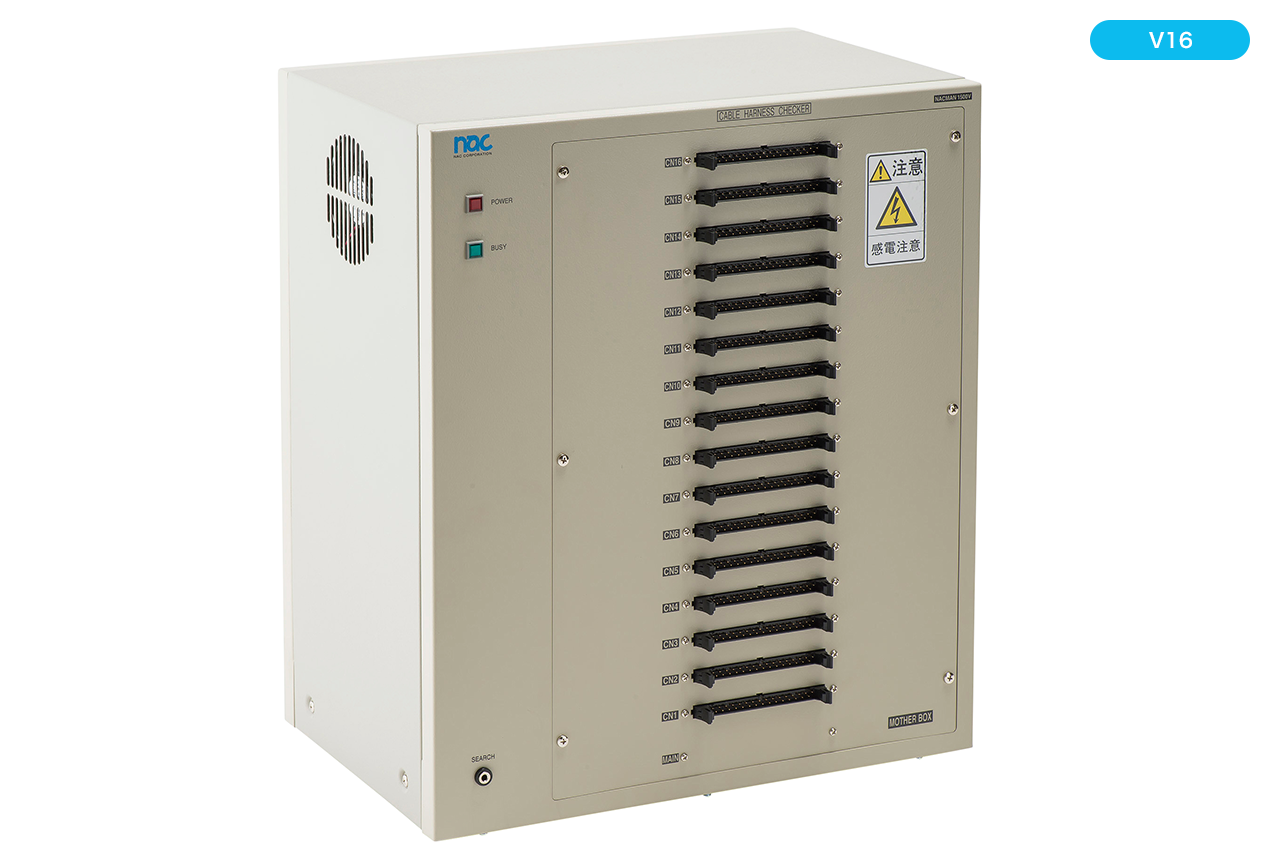

| NM1500K-V16 | 512 | W410mm×D265mm×H470mm | ¥3,698,000 | About 6 weeks |
Accessories
| Testing Cable | NMCBL-64-1.0K 2set |
|---|---|
| Power Cable | NMCBL-PWR 1set |
| Search Probe | NM-SRH-PEN(1set) |
| PC Cable | NMCBL-COM |
| Calibration Certificate | Calibration Certificate/Traceability System Diagram/Inspection Result Sheet |
| Warranty | 1 Copy |
Documents
| Specification Sheet EN | NM1500_spec_en_V1R1 |
|---|---|
| Hardware Manual EN | NM1500_en_V1R1 |
| High Voltage Application | Information for High Voltage Application Download on the Japanese website |
| Company Brochure | Company Brochure in Japanese |
| Company Brochure | Company Brochure in English |
Electrical inspection is invisible. Visualize inspection results with marks.
- JPY 22,800
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee - Detail
NM-ADP03｜Screwless terminal board for cable harness testing
- JPY 8,800
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee - Detail
Cable Harness Testing PC
- Contact us for Estimation
Shipping: 3-5weeks After Order
＊Not Including Transportation Cost and Fee - Detail
USB serial conversion cable set
- JPY 10,800
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee - Detail
NM-LED01｜Lamp for Cable Harness Testing
- JPY 10,000Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
- Detail
2 lamp types for the results
- JPY 20,000
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee - Detail
32-wire cable with Mil64-pin connector for hipot cable harness testing
- JPY 15,800
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee - Detail
Thermal paper printer for cable harness testing
- JPY 56,000
Shipping: 2weeks After Order
＊Not Including Transportation Cost and Fee - Detail
Label printer for cable harness testing
- Contact us for EstimationShipping: 2weeks After Order
＊Not Including Transportation Cost and Fee - Detail
Test Points addition
After purchasing this product, you can add test points depending on the size of the case.
・S:~128
・L:192~256
・V:320~512
Price:300,000JPY + Calibration cost + Transportation procedure fee
We will prepare the estimation for changing a larger case.
Please ask us detail from the contact form.
